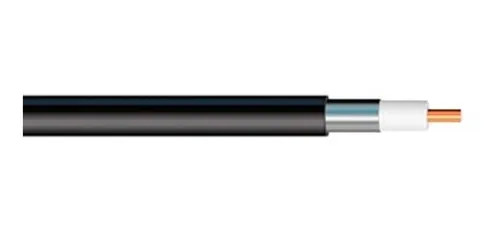

Trunk Series 75 Ohm Coaxial Cable Trunk Coax Cable PS 625 China Manufacturers and OEM/ODM factory

Categories	CATV Coaxial Cable
Brand Name:	Zion communication OR OEM
Model Number:	PS
Certification:	UL, ETL, CE, RoHS
Place of Origin:	China
MOQ:	30 KM
Payment Terms:	T/T, L/C
Supply Ability:	1000KM / Month
Delivery Time:	Normally 15 working days
Packaging Details:	500M, 1000M, Wooden Drum, Pallet
Inner Conductor:	0.137"/3.48mm/7AWG CCA
Dielectric:	0.565"/14.35mm Foamed PE
Shield 1:	0.625"/15.88mm Welding Smooth Aluminum Tube
Shield Thickness:	0.030"/0.76mm
Jacket:	0.685"/17.40mm PE
Jacket Thickness:	0.030"/0.76mm

Contact Now

Add to Cart

Company Info.

HANGZHOU ZION COMMUNICATION CO., LTD

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Trunk Coax Cable PS 625 75 Ohm CATV coaxial Cable NO.7100412



Construction Parameters:
Inner Conductor	0.137"/3.48mm/7AWG CCA
Dielectric	0.565"/14.35mm Foamed PE
Shield 1	0.625"/15.88mm Welding Smooth Aluminum Tube
Shield Thickness	0.030"/0.76mm
Jacket	0.685"/17.40mm PE
Jacket Thickness	0.030"/0.76mm


Application	For Use in Longer CATV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance	The Max. at 20℃ shall be<2.76 Ω/km

Capacitance	50 ± 3 pF/m
Impedance	75 ± 2 Ω
Return loss	between 5 and 1000MHz: > 22dB
Velocity of Propagation	0.87
Sparker Test (VAC)	4

Mechanical and Envrionmental Properties
Cable bend radius	10 times the cable diameter
Operating Temp Range	-20 ℃ to 60℃
Cable diamensions	0.685"/17.40mm PE
Cross Section














Attenuation(20℃):
Frequency (MHZ)	Nominal (dB/100m)	Max Attenuation (dB/100m)
5.00	0.39	0.43
55.00	1.38	1.48
83.00	1.67	1.84
211.00	2.79	3.02
250.00	3.02	3.28
300.00	3.35	3.54
350.00	3.58	3.87
400.00	3.87	4.17
450.00	4.13	4.43
500.00	4.33	4.69
550.00	4.63	4.92
600.00	4.86	5.18
750.00	5.45	5.84
865.00	5.81	6.33
1000.00	6.40	6.79

Order Informations:
Marking	HELLOSIGNAL Trunk Coax Cable PS 625 CATV COAXIAL CABLE 7100412 ×××M/FT
Package	Inquired Length on wooden Spool,pallet …
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL® OR OEM
