RG6U CCS 95% AL PVC RG6 Bonded Aluminum Polyproylene CCTV Coaxial Construction Cable

Categories	CCTV Coaxial Cable
Brand Name:	Zion communication OR OEM
Model Number:	RG6 Coaxial Cable
Certification:	ISO, UL, CE, RoHS
Place of Origin:	China
MOQ:	30 KM
Payment Terms:	T/T, L/C
Supply Ability:	3000KM / Month
Delivery Time:	25 working days
Packaging Details:	305M, 1000FT, Wooden Reel, Carton
Conductor:	18AWG BC
Insulation:	Foamed PE
Shield 1:	Bonded Aluminum Polyproylene
Shield 2:	Bare Copper braid wire 95% coverage
Jacket:	PVC Flame Retardation: IEC 60332-1
Color:	Black, White
Package:	305M, 1000FT, Wooden Reel, Carton

Contact Now

Add to Cart

Company Info.

HANGZHOU ZION COMMUNICATION CO., LTD

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

RG6U CCS 95% AL PVC 75 Ohm CATV coaxial Cable NO.7100064



Construction Parameters:
Inner Conductor	0.040"/1.02mm/18AWG CCS
Dielectric	0.180"/4.57mm Foamed PE
Shield 1	0.187"/4.75mm Bonded Aluminum Polyproylene
Shield 2	Aluminum braid wire 95% coverage
Jacket	0.268"±0.006"/6.81±0.15mm PVC
Jacket Thickness	0.030"/0.76mm
Application	For Use in Longer CATV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance	The Max. at 20℃ shall be < 87 Ω/km 26.6Ω/1000ft

Capacitance	52 ±3 pF/m 15.9 ±0.9 pF/ft
Impedance	75 ± 3 Ω
Return loss	between 5 and 1000MHz: > 22dB
Velocity of Propagation	0.85
Sparker Test (VAC)	4

Mechanical and Envrionmental Properties
Cable bend radius	10 times the cable diameter
Operating Temp Range	-20 ℃ to 60℃
Cable diamensions	0.268"±0.006"/6.81±0.15mm PVC

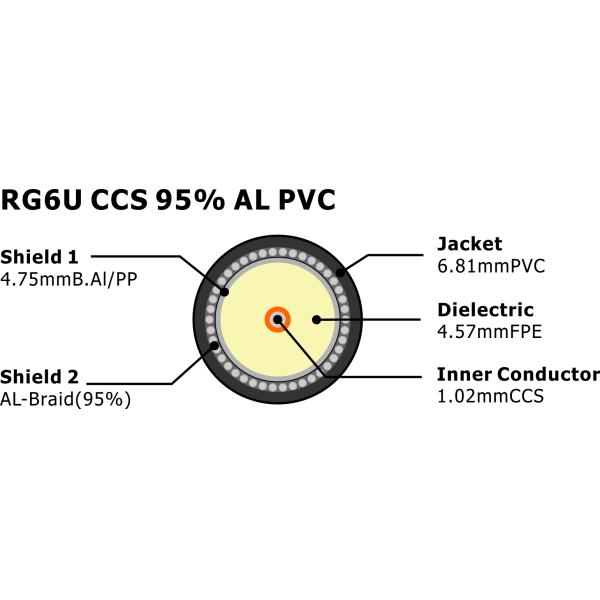

Cross Section














Attenuation(20℃):
Frequency (MHZ)	Max Attenuation(dB/100ft)	Max Attenuation (dB/100m)
5	0.58	1.90
55	1.60	5.25
83	1.95	6.40
187	2.85	9.35
211	3.05	10.00
250	3.30	10.82
300	3.55	11.64
350	3.85	12.63
400	4.15	13.61
450	4.40	14.43
500	4.66	15.29
550	4.90	16.08
600	5.10	16.73
750	5.65	18.54
865	6.10	20.01
1000	6.55	21.49

Order Informations:
Marking	HELLOSIGNAL RG6U CCS 95% CATV COAXIAL CABLE 7100064 ×××M/FT
Package	300M/Wooden Spool
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL® OR OEM
