| Categories | Mercedes Big Brake Kit |
|---|---|
| Brand Name: | TEI-RACING |
| Model Number: | P60ES+P40S-R |
| Certification: | China National Inspection Agency |
| Place of Origin: | China |
| MOQ: | 1 Set |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram and so on |
| Supply Ability: | 2000 kits per month |
| Delivery Time: | 10-15 DAYS |
| Packaging Details: | Package: 1.Each part is wrapped by EPE foam inside, carton box outside ; 2.Wooden frame is available as required3.Box size:42x42x42cm |
| Caliper Model: | P60ES+P40S-R |
| Caliper Material: | 6061 Aluminum alloy |
| Rotor Material: | High carbon alloy |
| Package Weight: | 70 KG |
| Shipment Way: | Express.air or sea |
| Payment Way: | Bank Transfer,Western Union or Paypel |
| Company Info. |
| Guangzhou Xiebin Import&Export Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
High Performance BBK For Mercedes-Benz E Class W212 18 Inch Car Rim Front 6 piston and rear 4 piston brake kit
Mercedes-Benz E class W212 2009-2016
It can be installed our front and rear brake kit
Minimum Rear Rotor Size is 345 mm
Normal handbrake
The original wheels do not need to add Spacers.

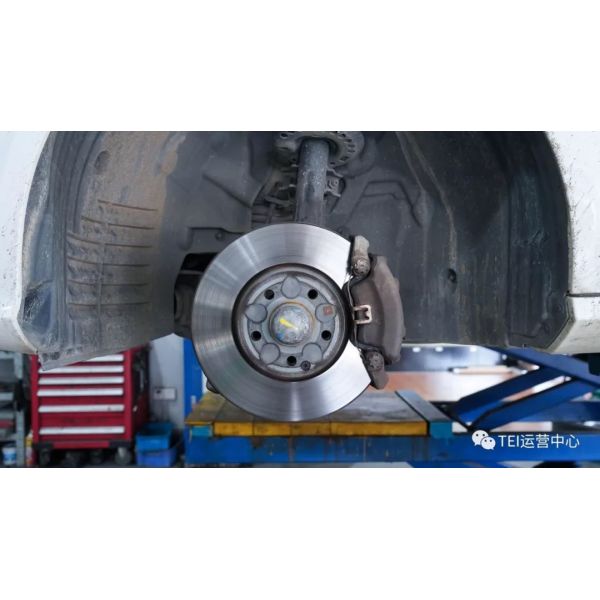

Orginal Brake Rotor Information

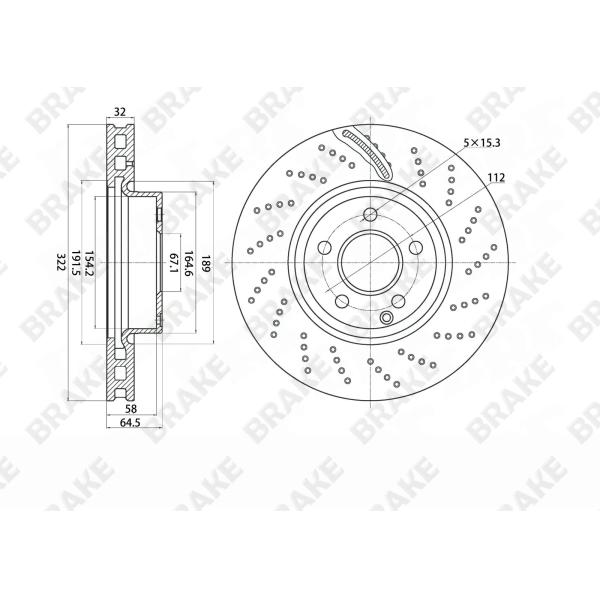

Front:
| Front Original Rotor Information | |
| Brake Rotor model | 28315 |
| Rotor Diameter | 322 mm |
| Rotor Hat Diameter | 112 mm |
| Central Hole Diameter | 67 mm |
| Disc Thickness | 32 mm |
| Minimum Disc Thickness | 30 mm |
| Total Height | 64.5 |
| Number of Positioning Holes | 5 |
| Disc type | Ventilation |

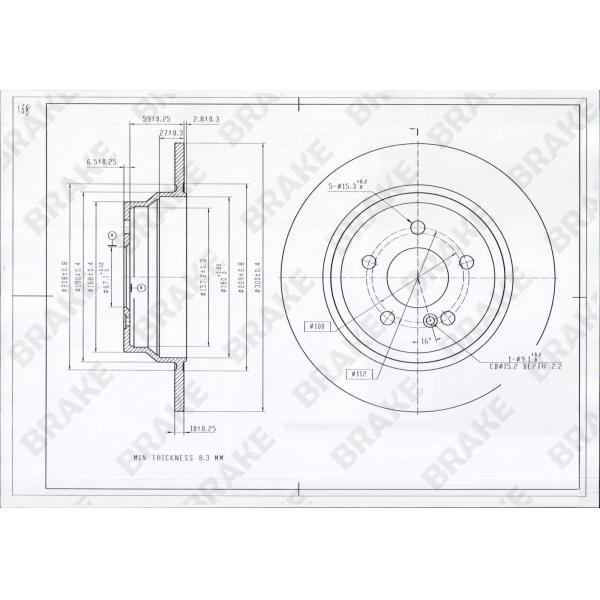

| Rear Original Rotor Information | |
| Brake Rotor model | 11902 |
| Rotor Diameter | 300 mm |
| Rotor Hat Diameter | 112 mm |
| Central Hole Diameter | 67 mm |
| Disc Thickness | 10 mm |
| Minimum Disc Thickness | 8.3 mm |
| Total Height | 65.5 mm |
| Number of Positioning Holes | 5 |
| Disc type | Solid |

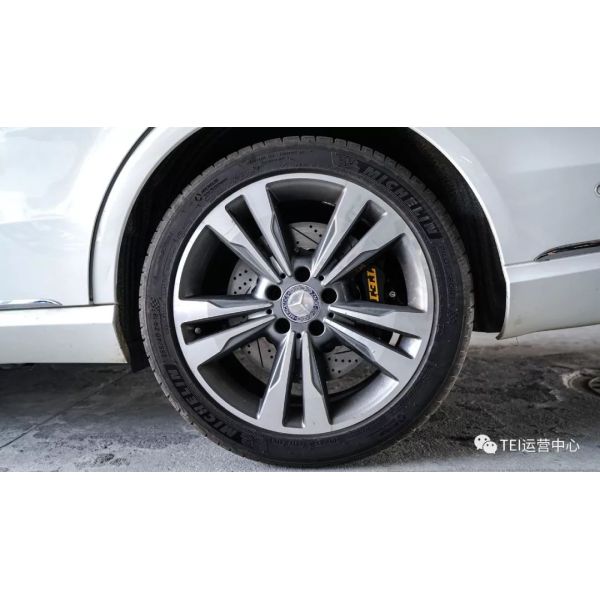

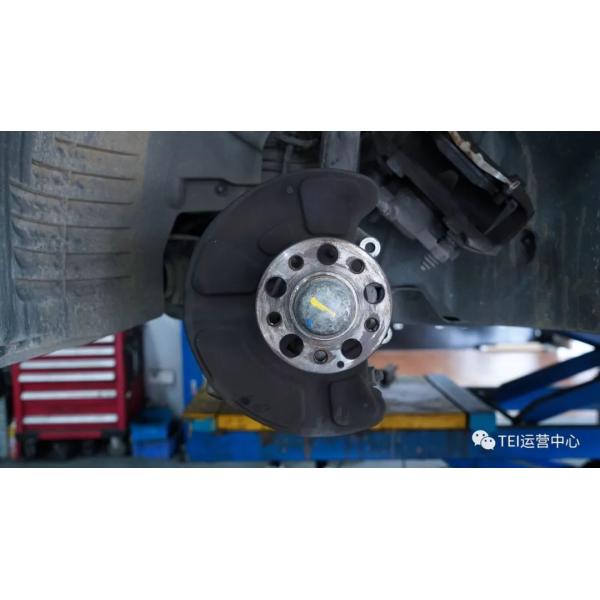

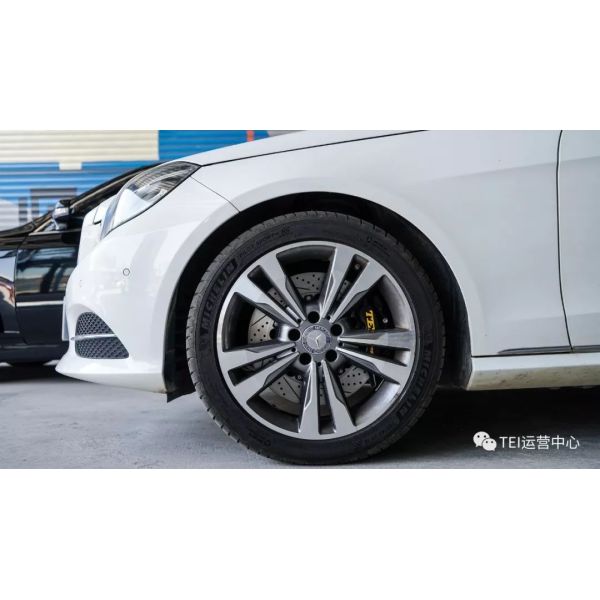

Installation Case
| Installation Case Brake Kit Information | ||

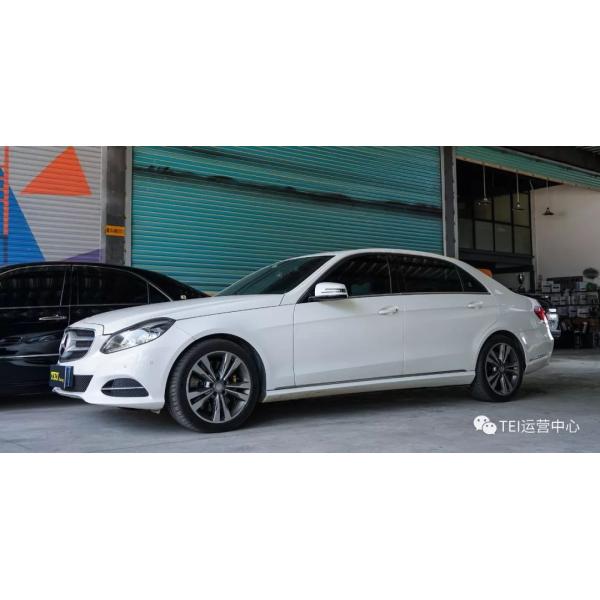

| Car Model | MB E CLASS W212 2009-2016 | |
| Front | Rear | |

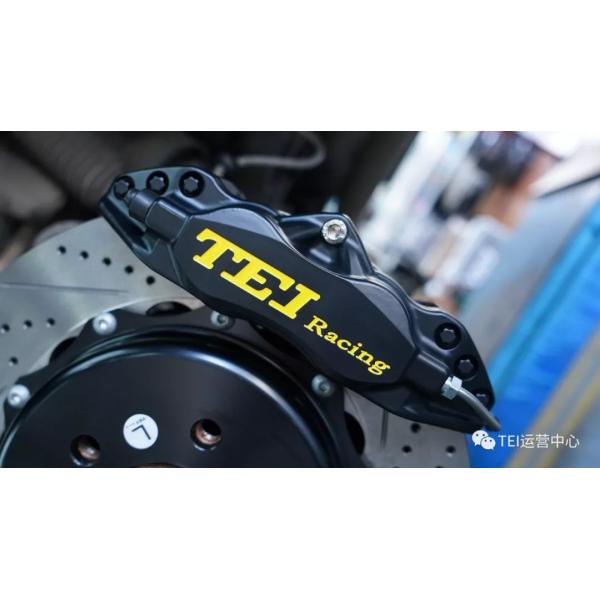

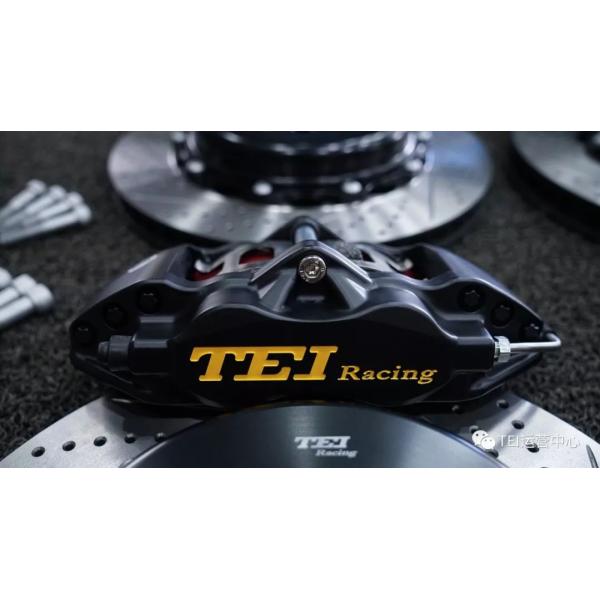

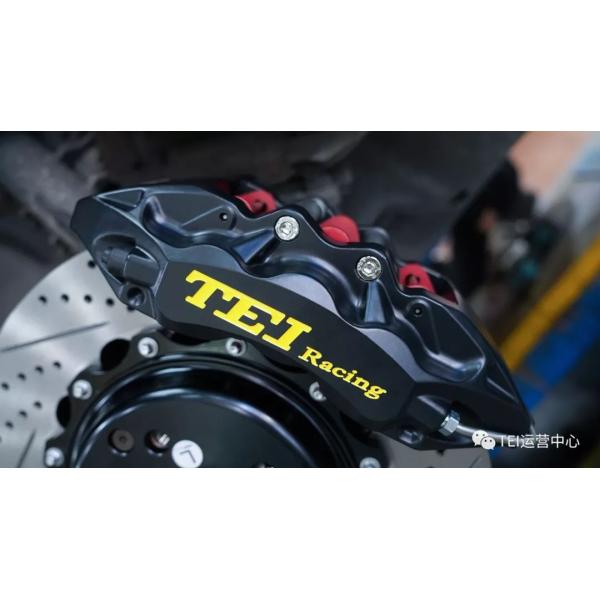

| TEI Caliper Model | P60ES | P40S-R |
| Caliper Color | BLACK | BLACK |
| Rotor Size | 355X32 MM | 345X28 MM |
| Rotor Style | DRILLED AND SLOTTED | DRILLED AND SLOTTED |
| Bolt Type | FIXED | FIXED |
| Brake Pad Type | SPPA | SPPA |
Noted:1.You can click the caliper model to check the products information.For example,You can click P60ES to check the P60ES brake information. 2.SPPA=Normal Ceramics Brake Pad,SPPL=Normal Metal Brake Pad SSS,XSS,MSS=Racing Metal Brake Pad | ||
|
