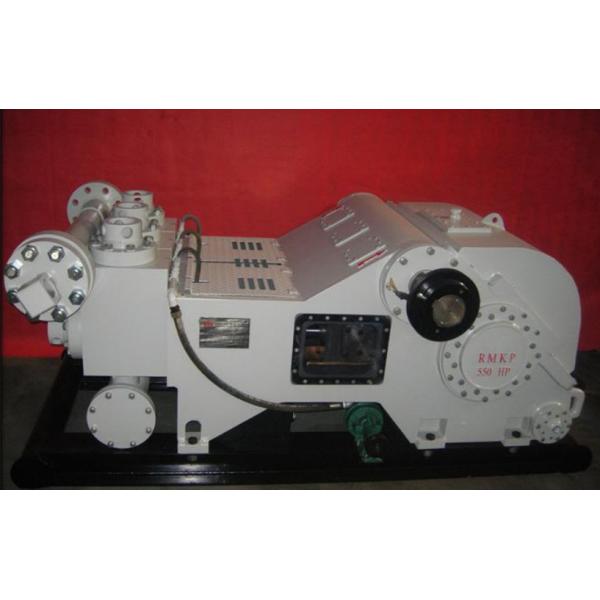

RMKP-550 Mud Pump

• RMKP-550 Pump Technical specifications

• Input power rating (KW) 410 (550HP)

• Rated pump speed (RPM) 145

• Stroke Length (mm) 177.8(7”)

• Gear ratio 4.625

• Rated speed of transmission shaft (RPM) 670

• Max. working pressure (Kg/sq.cm) 352 (5000PSI)

• Valve size (API) 7#

• Max. liner diameter (mm) 7.75”

• Max. displacement (GPM) 622

• Max. liner pressure (Kg/sq.cm) 96 (1364PSI)

• Diameter of suction pipe (mm) 203.2 (8”)

• Diameter of discharge pipe (mm) 100 (4”)

• Overall dimensions 3205*2250*2000mm

• Weight (lbs )(exclude five way joint and

pulsation damper) 8300kg 18300lbs

• Weight (with skid) 10800kg

RMKP-550 Pump Performance Data

The Over Installation Dimensions Drawing For RMKP-550
