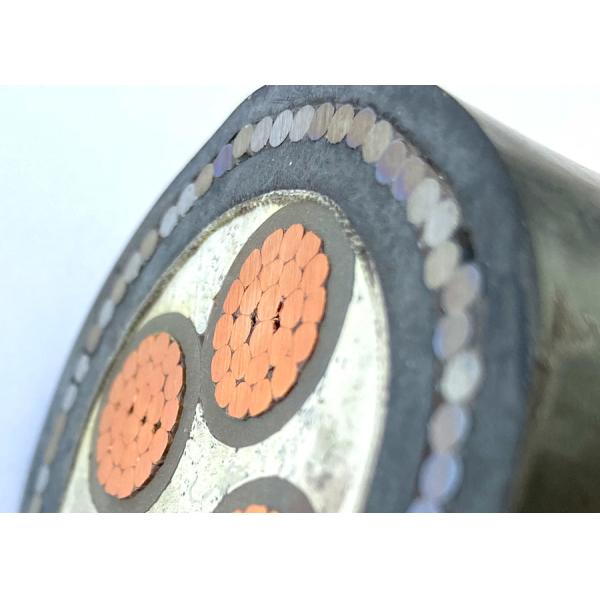

XLPE Insulation AWA Armoured Electrical Cable PVC Sheath Single Core

Custom AWA SWA Armoured Copper Cable , Single Core Armoured Cable 11KV 33KV


Construction: 1 ..... stranded bare copper, 2 ..... inner layer of semi-conducting material, 3 ..... core insulation of cross-linked polyethylene, 4 ..... outer layer of semi-conducting material, 5 ..... semi-conducting tape, 6 ..... screen of copper wires, 7 ..... Fillers strip, Yarn, or Paper, 8 ..... Non woven Wrapping tape or Flame Retardant, 9 ..... Extruded PVC Inner Covering, 10 .... Aluminum Wire Armoured, 11 .... Overall Sheath: polyvinylchloride (PVC) or FR-PVC, PE, LSOH



Application: 1. Used in transformer stations, switching blocks, in electric power plants and industrial plants. Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain. 2. To avoid the effects of external impact, the adhering semi-conductive layer extruded between conductor and insulation, along with concentric copper conductor, secures restriction of electric field and resistance to partial discharges. 3. Due to its very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE-material, firmly longitudinally spliced with inner and external screen of semi-conductive material (extruded in one process), the cable has a high operating reliability.


Standards: International: IEC 60502-2, IEC 60228; China: GB/T 12706.2-2008; Other standards such as BS,DIN and ICEA upon request


Specifications:


MV(6 to 35kv) Power Cable
Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kVNo.of CoreConductor cross-section area(mm2)
xlpe insulation1 core 3 core10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm
Cu coreAl Core
YJV, N2XSY;PVC sheathed power cableYJLV, NA2XSY; PVC sheathed power cable
YJV22;steel tape armoured,PVC sheathed power cableYJLV22;steel tape armoured,PVC sheathed power cable
YJV32,YJV42;steel wire armoured ,PVC sheathed power cableYJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable


Technical data:


Test voltage6 / 10 kV[kV]21 / 5 min.
12 / 20 kV[kV]42 / 5 min.
18 / 30 kV[kV]63 / 5 min.
Temperature rangein motion-20°C till +90°C
fixed-20°C till +90°C
Operating temperatureshort circuit°C250
Short circuit timemax.[sec]5
Bending radiusmin.x diameter15
FlammabilitystandardEN 50265-2-1

Ordering


Rated Voltage

Application Standard:IEC/BS/UL/GB

Number of Cores

Conductor Size $ Construction

Type of Insulation

Armored or unarmored. If armour, the armour type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement


Technical Parameter


Nom. Cross-section of conductorStrands No./Dia. Of ConductorInsulation ThicknessInner Sheath ThicknessDia. Of Armor WireSheath ThicknessApprox. O.D.

Approx.

Weight

Max. D.C Resistance of Conductor (20 ℃)Testing Voltage A.CCurrent Rating
mm2pc/mmmmmmmmmm(mm)kg/kmΩ /kmkV/5minIn air (A)In soil(A)
1 × 5010/2.5281.22.02.240.028570.38763210215
1 × 7014/2.5281.22.02.342.031660.26863260265
1 × 9519/2.5281.22.02.343.034990.19363320315
1 × 12024/2.5281.32.52.446.042640.15363370360
1 × 15030/2.5281.42.52.548.046710.12463420405
1 × 18537/2.5281.42.52.549.051210.099163480455
1 × 24048/2.5281.42.52.652.057800.075463565530
1 × 30061/2.5281.42.52.754.064820.060163650595
1 × 40061/2.9781.42.52.858.076570.047063755680
1 × 50061/3.2381.62.52.961.088940.036663865765

This product is applicable to the power transmission and distribution line with AC rated voltage(U0/U) of 3.6/6kV-26/36kV system.It is routed in air (cable bridge frame,indoor wall support,and tray) and soil(direct buried, cable trench,pipe ect.) respectively according to difference of the protection layer structure.

PACKING AND SHIPPING


All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum.

The packing material is depended on the weight and size of cable.

The good information, manufacture information, and the client's information is firmly printed on each size of drum.


After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.

The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.


Services


♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
