| Categories | Electric Linear Actuators |
|---|---|
| Brand Name: | Linsheng Auto II MaxM |
| Model Number: | LS-PAT-12 |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | negotiable |
| Price: | 29-299 USD/PCS |
| Payment Terms: | L/C, T/T, PayPal |
| Supply Ability: | 10000 PCS per month |
| Delivery Time: | 14 Days |
| Packaging Details: | Paper gift box, 8 PCS/Carton |
| Voltage Related: | 12V/ 24V/ 36 DC |
| Standard stroke: | 50~800mm |
| Max load: | 6,000N (push); 4,000N (pull) |
| Max. speed at max. load: | 5mm/s |
| Warranty: | 1 Year |
| Customization: | Available |
| Company Info. |
| LINSHENG INTERNATIONAL ENTERPRISE CO., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
The LS-PAT-12 electric linear actuator is designed for lift applications like recliners, lifting chairs and movie theater seating. Its right angle design reduces noise and allows for fitment into most applications. In addition, the LS-PAT-12 is available with optional Hall sensors for position feedback. It can also be used where freewheeling push only functionality is desired.
| Linear Actuator | LS-PAT-12 |
| Voltage of motor | 12 / 24 / 36V DC |
| Maximum load | 6,000N (push); 4,000N (pull) |
| Maximum speed at full load | 5mm/s |
| Standard stroke | 25~1000mm |
| Retracted length | ≥ Stroke + 163mm |
| Options | Freewheeling push only, safety nut |
| Color | Black |
| Operational temperature range | -5°C~+45°C |

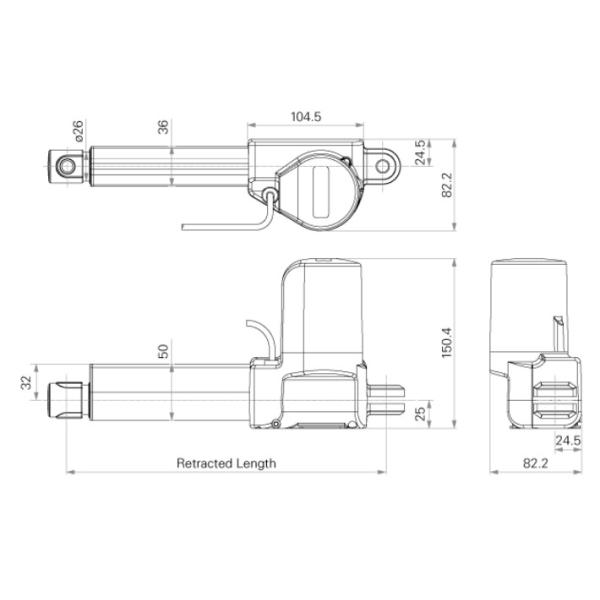

Drawing Of Electric Linear Actuator
Standard Dimensions (mm)
|
