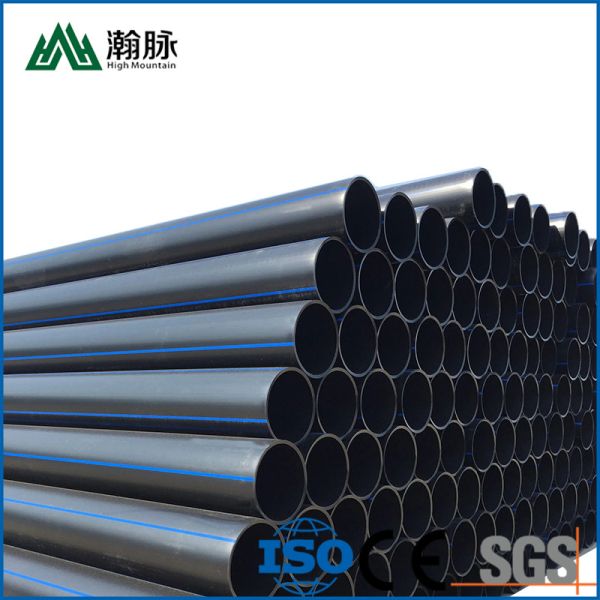

Black Color Plastic 160mm HDPE Water Supply Pipes For Farm Irrigation
----------------------------------------
Basic Info.
Hot melt connection refers to a connection method between non-metal and non-metal after heating to (liquid) melting point. It is widely used in the connection of new pipes and fittings such as PP-R pipe, PB pipe, PE-RT pipe, metal composite pipe, curved elastic vector aluminum alloy lined plastic composite pipe system, etc. In the steel structure project, two metal steel bars are connected by hot melt through electric heating equipment. The connection point after metal hot-melt connection must be cooled at room temperature to achieve the tensile stress of the original metal material. Hot-melt connections mainly include hot-melt socket connections and hot-melt butt-welding connections. Hot-melt connections have the advantages of easy connection, long service life, and not easy to corrode.
| Outer Diameter DN (mm) | SDR 9 PN20 | SDR 11 PN16 | SDR 13.6 PN12.5 | SDR 17 PN10 | SDR21 PN8 | SDR26 PN6 | Packing Loaded into 40GP/Piece 6m or 12m per Piece |
| Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | ||
| 75 | 8.4 | 6.8 | 5.6 | 4.5 | 1085 | ||
| 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | 754 | |
| 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 | 504 |
| 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 | 378 |
| 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 | 304 |
| 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 | 224 |
| 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 | 182 |
| 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 | 143 |
| 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 | 110 |
| 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 | 90 |
| 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 | 72 |
| 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 | 56 |
| 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 | 42 |
| 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 | 30 |
| 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 | 25 |
| 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 | 20 |
| 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 | 16 |
| 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 | 12 |
| 710 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 | 9 | |
| 800 | 72.7 | 58.8 | 47.4 | 38.1 | 30.6 | 6 | |
| 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | 6 | |
| 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | 4 | |
| 1200 | 88.2 | 67.9 | 57.2 | 45.9 | |||
| 1400 | 102.9 | 82.4 | 66.7 | 53.5 | |||
| 1500 | 110.2 | 88.2 | 71.4 | 57.6 | |||
| 1600 | 117.6 | 94.1 | 76.2 | 61.2 |

Advantage
1. Efficient and safe delivery of liquids
2. Good corrosion resistance
3. Excellent flexibility and elasticity
4. Price concessions, good quality and low price
Details




Application
1. Urban gas pipelines
Because HDPE gas special pipeline has strong impact resistance and
toughness. Gradually replace cast iron pipes for urban and rural
gas transmission projects. The urban gas pipeline network must not
only ensure uninterrupted and reliable supply of gas to users,
ensure the safe operation and management of the system, and
facilitate maintenance and maintenance, but also consider closing
some pipe sections without affecting the work of other systems
during maintenance or failure. Therefore, it is necessary to select
different pressure levels in the urban gas network system.
2. Sewage discharge pipes
HDPE sewage treatment pipe refers to a system of pipes, canals and
their ancillary facilities that collect and discharge sewage, waste
water and rainwater. Including mains, branches and pipes leading to
the treatment plant, whether built on the street or anywhere else,
should be counted as drains as long as they are drains. HDPE
chemical pipes have high chemical resistance to rings dissolved in
civil and industrial wastewater.
Certificate


Company Profile
High Mountain Pipe Industry is a company integrating production,
sales, installation, and engineering technology. The company’s
non-toxic, green, corrosion-resistant, and excellent performance
MUHDPE alloy pipe, HDPE national standard corrugated pipe, HDPE
national standard corrugated pipe, EPTU three-wall Anti-seismic and
impact-resistant pipe, HDPE steel tape to increase strength spiral
corrugated pipe, SRWPE plastic steel three-dimensional winding
pipe, HDPE double-wall corrugated pipe, FRPP double-wall reinforced
corrugated pipe, HDPE water supply pipe, CPVC cable protection
pipe, PE porous general cable protection pipe, FRP Sand pipes,
plastic inspection wells and related supporting products are widely
acclaimed in the industry, and cooperate with major companies and
enterprises to make progress together.


FAQ
Q: What is the delivery time?
A: We always have common products in stock and can be shipped
within 30 days.
Large orders require 15 days to complete production.
Q: How to get free samples?
A: Send your address, telephone number, zip code and express
account number to our mailbox, and tell us which model of samples
you need. Our sales team will contact you within 24 hours.
Q: What are raw materials?
A: PE
|
