| Categories | Vibro Sifter Machine |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Model Number: | EGPS-600/800/1000/1200 |
| Certification: | ISO,CE |
| Place of Origin: | CHINA |
| MOQ: | 1 set |
| Price: | negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Delivery Time: | within 5-15 work days |
| Packaging Details: | Standard export wooden package |
| Name: | High-Frequency vibro sifter |
| Rotor speed: | 3000 r/min |
| Mesh Size: | 2~500 |
| Layer: | 1 |
| Motor: | Italy OLI motor, Swiss ABB motor |
| Application: | Clay,Paper pulp,Slurr,Paint,Ceramic Mud,etc |
| Company Info. |
| EVERSUN Machinery (Henan) Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Product introduction

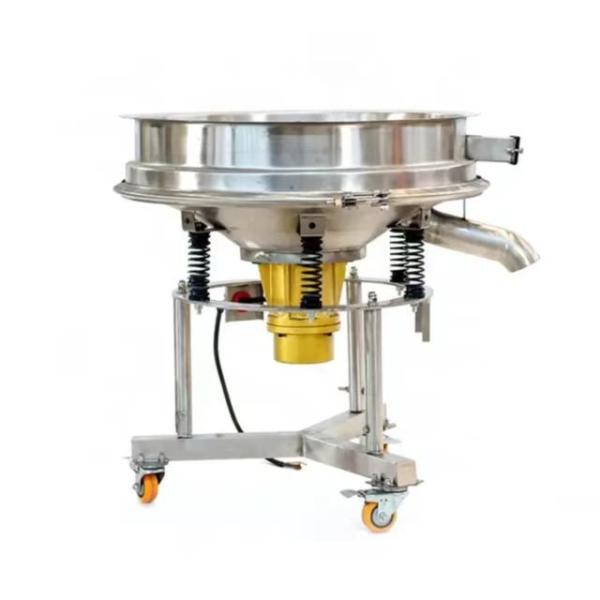

High-Frequency Vibration Screen Sifter By High-Frequency Vibration For Ceramic Mud
High-frequency screen, also known as high-frequency vibrating screen and high-frequency filtering screen.For the efficient sieving of slurry materials,it is a separate wet screening for dehydration.A high frequency and low energy consumption screening and filtering equipment developed by our factory after years of practical experience,it has been widely used in the field of vibration screening and filtering of ceramic slurry and other materials, and has won unanimous praise from many ceramic slurry users.
Technical Parameter
| Model No. | Effective sieve diameter(mm) | Voltage | Vibration force | Rotor speed (r/min) | Power (KW) |
| EGPS-600 | 550 | 380 | 8000N | 3000 | 0.55 |
| EGPS-800 | 760 | 380 | 10000N | 0.75 | |
| EGPS-1000 | 930 | 380 | 15000N | 1.1 | |
| EGPS-1200 | 1130 | 380 | 20000N | 1.5 | |
| Machine can be customized based on your need | |||||

Features and Advantages
1. Simple and easy to use structure,small size,light weight,convenient installation and movement,easy maintenance and long
service life.
2. Low energy consumption,high efficiency,energy consumption can be
reduced by half and production can be doubled.
3. High screening accuracy,screening particle size can reach more
than 4oo mesh,a wide range of use,any powder,grain,mucus
can be applied.
4. The amplitude is small,the frequency is high,can reach
3000/rpm,the screening effect or fine-grained,high-viscosity
materials
is more obvious.
5. Unique screen structure,loading sieve is convenient and fast,3
to 5 minutes can be installed.

|   |
