50KW 630mA DR Digital X Ray Equipment Electricity AEC Function

Categories	Digital X Ray Equipment
Place of Origin:	Jiangsu, China
Brand Name:	Healicom
Model Number:	HX50R-A
Packaging Details:	wooden case
Supply Ability:	1000 Unit/Units per Month
Price:	$8,000.00 - $9,300.00/units
Certification:	CE
MOQ:	1 pieces
Payment Terms:	L/C, T/T
Delivery Time:	3-15 work days
Power Source:	Electricity
Warranty:	1 Year
After-sale Service:	Online technical support
Material:	Metal, Plastic, Steel
Shelf Life:	1years
Quality Certification:	ce
Instrument classification:	Class II
Safety standard:	GB/T18830-2009
Output Power:	50KW
Power Voltage:	380V±38V
kV range:	40~150kV
mA range:	10~630mA
mAs range:	0.1 ~630mAs
Exposure time:	0.002~6.3S
X-ray Tube Small focus:	0.6
X-ray Tube Large focus:	1.2
X-ray Tube Anode speed:	3000r/min
Wire Flat Panel Detector:	17X17inch
Port:	shanghai ningbo tianjin

Contact Now

Add to Cart

Company Info.

Jiangsu Xiangyou Medical Instrument Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

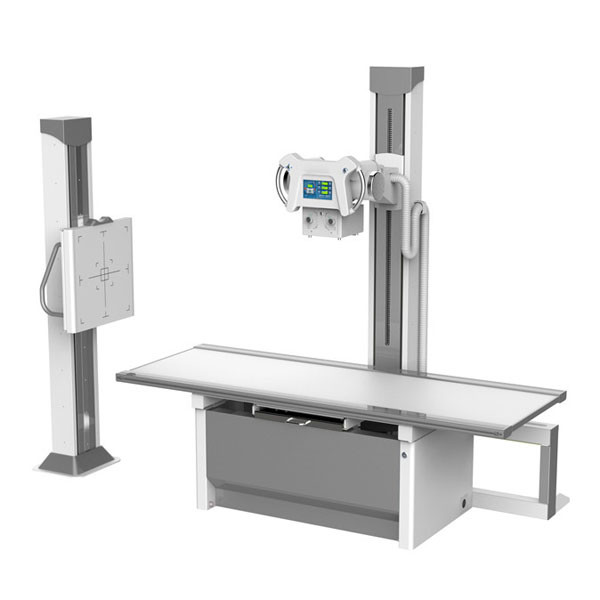

50KW 630mA DR Digital X Ray Equipment Electricity AEC Function

Factory price 630mA Medical DR xray equipment Digital Radiography system 50KW X-ray Machine

Products Description

High Frequency 50KW 630mA X-ray Radiography Machine

Features
1. Rich DR upgrade reserve interface
2. Fault self-diagnosis and protection
3. Automatic calibration of tube current
4. X-ray tube has the function of filament dormancy
5. AEC function, different ionization chamber as optional
6. Analog - digital double - loop control, simple operation, high intelligence
7. High kV, high current, high power,strong penetration,able to handle obese patients

Application
Applicable to orthopedics, emergency room, operating room, etc.
As human head, limbs, chest, spine, lumbar spine for medical diagnosis

Technical Specifications
X-ray generator (include console)
Output Power	50KW
Power Voltage	380V±38V
kV range	40~150kV
mA range	10~630mA
mAs range	0.1 ~630mAs
Exposure time	0.002~6.3S
X-ray tube
Anode Heat Storage Capacity	240kHU
Small focus	0.6
Large focus	1.2
Anode speed	3000r/min
Collimator
Inherent filtration	1.0mm Al /75kV
Light Source	LED
Radiographic Table
Top Table Size	2100X800X650mm
Bucky Size	18X18inch
Table longitudinal movement	≥900mm
Cassette Movement Distance	≥500mm
Vertical Chest stand
Vertical moving range	≥1200mm
Bucky Size	18X18inch
Double Grid
Size	18X18inch
Ratio	1:1
F.D.	100cm
Density	40 L/cm

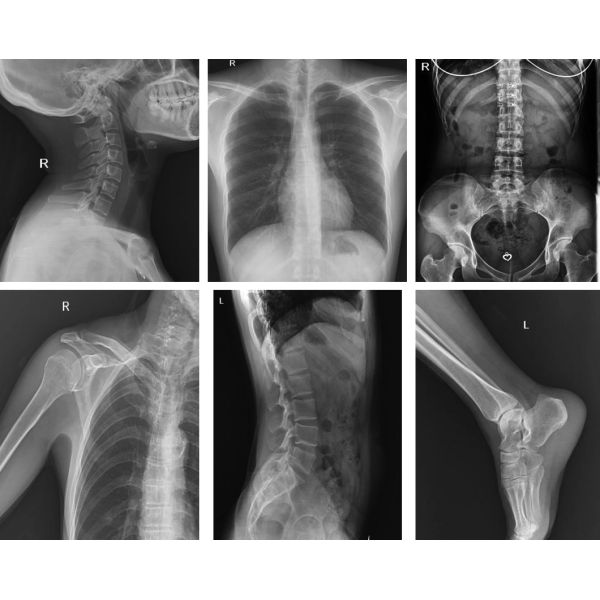

Clinical Images

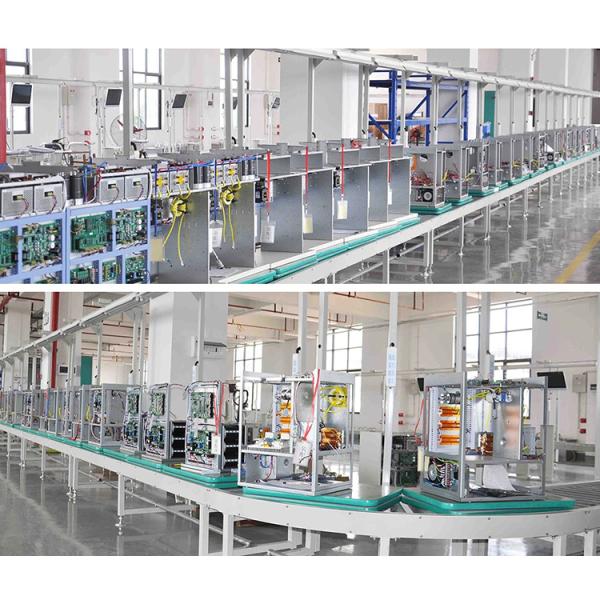

Workshop
