| Categories | Excavator Travel Gearbox |
|---|---|
| Brand Name: | TGFQ |
| Model Number: | SK140-8 PC130-8 |
| Place of Origin: | CHINA |
| MOQ: | 1 |
| Price: | 500.00-4000.00USD |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 500 pcs / month |
| Delivery Time: | 1-3days |
| Packaging Details: | NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type |
| Product Name: | Excavator Gearbox Without Motor |
| Part Number: | YY15V00015F1 / TZ600D1000-01 |
| Holes: | 20/15T |
| Part Model: | SK140-8 PC130-8 |
| Weight: | 130KG |
| Shaft: | 18/22T |
| Company Info. |
| Guangzhou Tiangong Machinery Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
SK140-8 PC130-8 Excavator Kobelco Travel Gearbox Without Motor
Product Parameter:
| Product Name: | Travel Gearbox without Motor |
| Place of Origin: | China(Mainland) |
| Model: | SK140-8 PC130-8 |
| Part Number: | YY15V00015F1 / TZ600D1000-01 |
| Motor: | GM21VA-A-45/76 |
| Package Size: | 42*42*48CM |
| Delivery time: | Within 1-3 days after receiving the payment |
| Means of Transport: | By Sea, By Air or By Express |

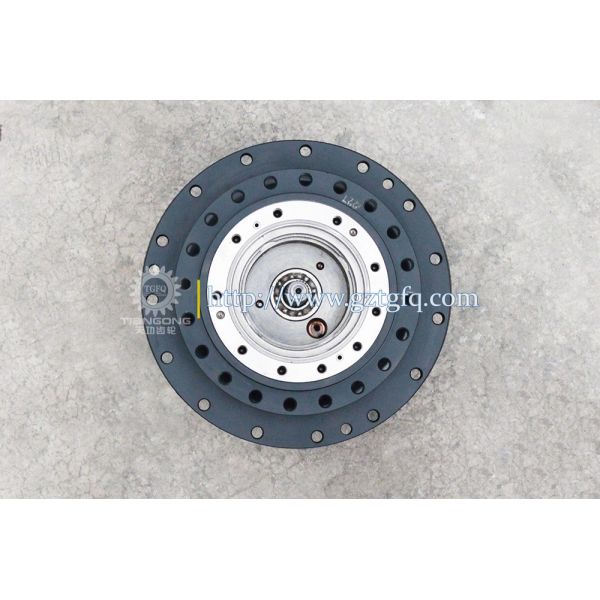

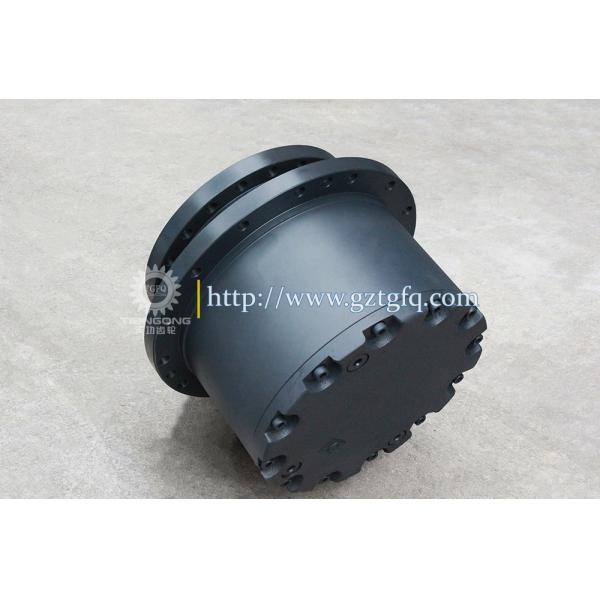

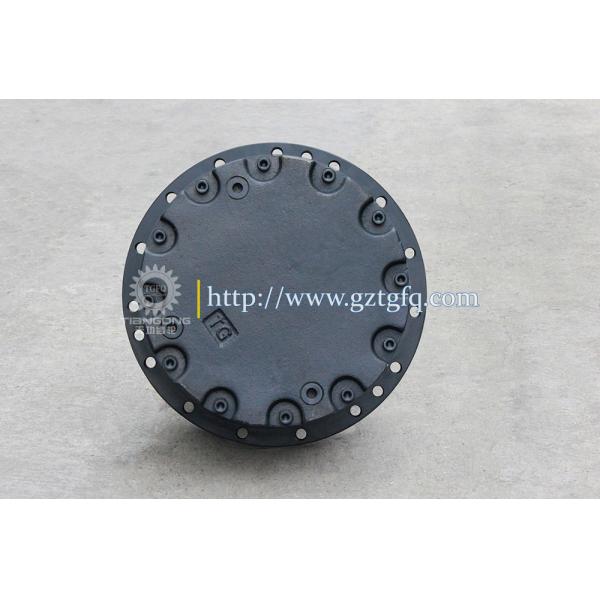

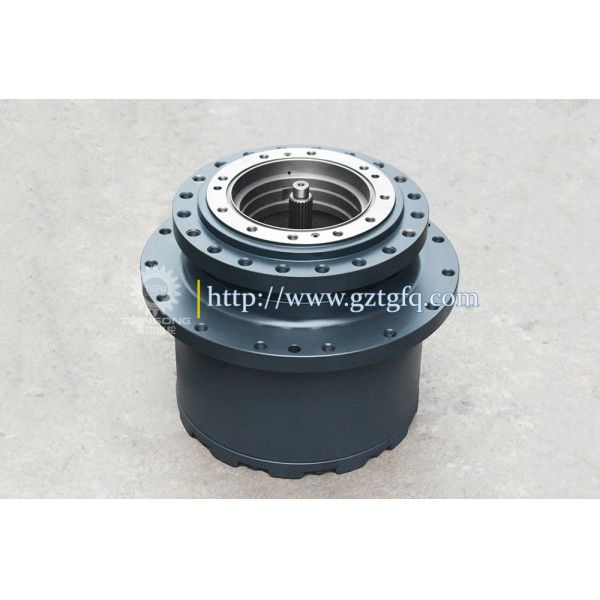

SK140-8 PC130-8 Final Drive Picture:





Drawing:

| Pos. | Part No | Qty | Parts Name |
| 22B-60-22112 | [2] | Motor Assembly Komatsu China | |
| ["SN: 85351-UP"] |$0. | |||
| 22B-60-22111 | [2] | Motor Assembly Komatsu China | |
| ["SN: 84772-85350", "SCC: A2"] |$1. | |||
| 22B-60-22110 | [2] | Motor Assembly Komatsu China | |
| ["SN: 80001-84771", "SCC: A2"] |$2. | |||
| TZ600D1000-011 | [1] | Reduction Assembly Komatsu China | |
| ["SN: 85351-UP"] |$3. | |||
| TZ600D1000-01 | [1] | Reduction Assembly Komatsu China | |
| ["SN: 80001-85350"] |$4. | |||
| TZ600D1103-01 | [1] | Carrier Assembly Komatsu | |
| ["SN: 80001-UP"] |$5. | |||
| 6 | TZ600D1107-011 | [1] | Carrier Assembly Komatsu China |
| ["SN: 85351-UP"] | |||
| 6 | TZ600D1107-01 | [1] | Carrier Assembly Komatsu |
| ["SN: 80001-85350"] | |||
| 12 | TZ209-234-42BA | [1] | Seal Ring Kit Komatsu China |
| ["SN: 80001-UP"] | |||
| 14 | TZ600D1001-02 | [1] | Hub Komatsu China |
| ["SN: 80001-UP", "SCC: C2"] | |||
| 15 | TZ600D1002-00 | [1] | Spindle Komatsu China |
| ["SN: 80001-UP", "SCC: C2"] | |||
| 16 | TZ600D1004-02 | [1] | Gear, Sun Komatsu China |
| ["SN: 80001-UP"] | |||
| 17 | TZ600D1008-00 | [1] | Gear, Sun Komatsu China |
| ["SN: 80001-UP"] | |||
| 18 | TZ800D1013-00 | [1] | Plate Komatsu China |
| ["SN: 80001-UP"] | |||
| 19 | TZ600D1014-01 | [1] | Cover Komatsu China |
| ["SN: 80001-UP"] | |||
| 20 | TZ600D1015-01 | [1] | Coupling Komatsu China |
| ["SN: 80001-UP"] | |||
| 21 | TZ600D1022-00 | [2] | Washer, Lock Komatsu China |
| ["SN: 80001-UP", "SCC: C2"] | |||
| 22 | TZ600D1023-00 | [1] | Shim Kit, 12 Kind(s) Komatsu China |
| ["SN: 80001-UP", "SCC: C2"] | |||
| 23 | TZ600D1024-01 | [2] | Bearing Komatsu China |
| ["SN: 80001-UP", "SCC: C2"] | |||
| 24 | TZ610B2021-00 | [3] | Plug Komatsu China |
| ["SN: 80001-UP"] | |||
| 25 | 07000-12018 | [3] | O-ring, (Kit : K01) Komatsu China |
| ["SN: 80001-UP"] analogs:["KB9511301800", "YM24311000180", "0700002018", "2083811590"] | |||
| 26 | TZARP568261-70 | [1] | O-ring, (Kit : K01) Komatsu China |
| ["SN: 80001-UP"] | |||
| 27 | 07000-11007 | [2] | O-ring, (Kit : K01) Komatsu |
| ["SN: 80001-UP"] analogs:["YM24311000070", "0700001007"] | |||
| 28 | TZ263B2077-01 | [2] | Pin Komatsu |
| ["SN: 80001-UP"] | |||
| 29 | 01252-31035 | [12] | Bolt, Hexagon Socket Head Komatsu |
| ["SN: 80001-UP"] analogs:["0125261035"] | |||
| 30 | 04065-02210 | [1] | Ring Komatsu China |
| ["SN: 80001-UP"] |



We have more than 4000 square meters of three-dimensional warehouse
and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to
customers' needs faster. Fast delivery is our advantage.


FAQ:
Q: What can you do?
A: We can provide you with digging final drive and swing drive
motors and reducer gearbox and their parts.
Q: Can I order one of our samples for testing first?
A: Of course!
Q: How do I order?
A: You need to tell us the model and quantity you are interested
in, and then we will issue a proforma invoice for you. The goods
will be prepared after receiving the payment. The preparation time
depends on the content of the order.
Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production
experience in the excavated gear industry.
|
