Industrial Suspension Air Springs Firestone W01-358-6935 W01-358-6856 For Hendrickson Lift Axles S-14318

Categories Convoluted Air Spring
Brand Name: AIRSUSTECH
Model Number: 2B6935
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou China
MOQ: 3Pieces
Payment Terms: T/T, Western Union, Paypal or Others
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Warranty: 12 Months
Material: Rubber and mental
Firestone: W01-358-6935
Sample: Available
Max. OD: 251mm
HS Code: 8708809000
Application: Industrial Machines or others
Convolutions: Double Convoluted
Cover Plate Diameter: 160mm
Air Inlet: 1/4-18NPTF
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Industrial Suspension Air Springs Firestone W01-358-6935 W01-358-6856 For Hendrickson Lift Axles S-14318

Industrial Suspension Air Springs Firestone W01-358-6935 W01-358-6856 For Hendrickson Lift Axles S-14318


Essential Information


Product No.: 2B6935

Type: SHOCK ABSORBER, air spring assembly
Material: Rubber and Steel
Place of Origin: Guangzhou, China
Brand Name: Netural
Name: air spring/airbag/air suspension
Color: Black
Spring Material: rubber
Application: Paper machinery, Textile machinery, Vibrating machinery, Baker peeling machinery, Piston machines, Scissors type lifting table,Press, Roll tensioner, Assistant air suspension for motor home, or other industrial equipments
Warranty: 12 Months

Delivery time: 3-8 Working days

Payment: T/T, Western Union, Paypal or Others



Cross Reference


Firestone W01-358-6935/W013586935/WO13586935, W01-358-6856/W013586856/WO3586856, Firestone Style 20, Contitech FD 200-19 499/ FD200-19499, Goodyear 2B9-201/ 2B9 201/2B9201, Hendrickson S-14318/ S14318, 003318, Freightliner 16-14318-000/ 1614318000, FleetPride AS6935, Taurus 6325, Triangle AS-4499/AS4499, TRP AS69350, Automann SP2B12R-6935/ SP2B12R6935, Granning 4848, Loadguard SC2010, Navistar 554784C1, R&S Truck 1027505, Granning 702932-01/ 70293201, Sauer P50-733A/P50733A, Suspensions, Inc. 200042, Arvin Meritor 201548, Navistar 2B9-491/2B9 494, Taurus AS218-6902/ AS2186902, Ridewell S1728C


Cross references are not a guarantee that the part will fit any specific application. Check all information available before relying on a cross reference to make a purchase



Air Spring spcifications and data parameters: 2B6935

Type

Double Convolution Air Spring; 2-Ply Bellows

Top Plate Hole/Stud Qty3

Threaded Hole on top plate

2pcs×3/8-16UNC

Bottom Plate Hole/Stud Qty
2
Bottm Plate Hole/Stud
2pcs×3/8-16UNC

The screw center distance

89mm

Air Inlet/ Air firrings

1/4-18NPTF, OFFSET, 44.5mm

Top and Bottom cover plate diameter

160mm

Min. height

95mm

Max. height

274mm

Natural Rubber Bellow Diameter

224mm

Max. OD

251mm

Girdle ring/Girdle hoop/Belt loop

one piece

Bumper/ Bumper Block

Yes

Judging the pros and cons of rubber airbag shock absorbers can be distinguished from the following aspects


1. The cost-effective 2B6935 rubber airbag shock absorber can be made into a variety of industrial products with different shapes and specifications. Their structure is very compact, and they can use indoor space reasonably and effectively.

2. The elastic mold is small, and a relatively large elastic deformation can be obtained, which is very easy to realize the optimal control characteristics of the dream.

3. The appearance is not limited, and the bending stiffness in three directions can be designed according to specific requirements.

4. With high internal resistance, it has excellent practical effect on the digestion and absorption of sudden impact and high frequency vibration.
5. Installation and disassembly are very convenient.

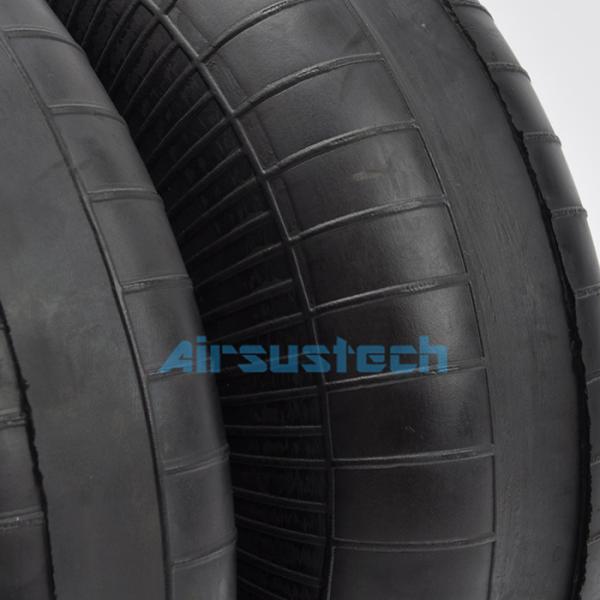

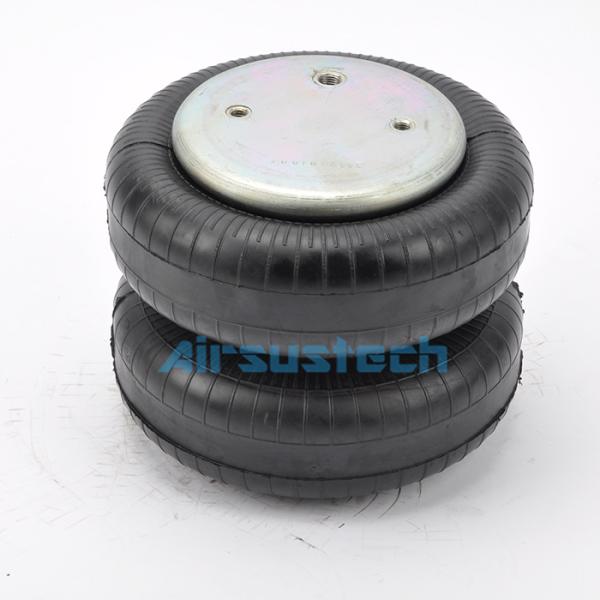

The reated picture of air springs/convoluted air spring/air bag/air balloon: 2B6935
