PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder

PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder

PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder
PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder
Categories Plastic Shredder Machine
Place of Origin: Jiangsu, China
Brand Name: MOOGE TECH
Certification: CE ISO
Packaging Details: wooden case of plastic film
Supply Ability: 20 Set/Sets per Month
Price: $20,000.00/sets 1-4 sets
Condition: New
Plastic Type: pp pe pvc
Machine Type: Plastic Shredder
Max.Production Capacity (kg/h): 2000
Production Capacity (kg/h): 300 - 2000 kg/h
Use: Plastic Pipe Crusher
Shaft Design: Single
Voltage: 380V/50Hz/3Phase
Dimension(L*W*H): 122*62*109cm
Power (kW): 45
Weight (T): 2
Warranty: 1 Year, 12 Months
Applicable Industries: Manufacturing Plant
Key Selling Points: Automatic
Showroom Location: Egypt
Marketing Type: other
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor
After-sales Service Provided: Engineers available to service machinery overseas, Online support
Color: Client's Requirements
Application: Waste Plastic Products
Blades material: 9CrSi/D2/SKD-11
Other name: plastic crusher
Usage: Rubber ShreddingWaste Plastic Shredding
Shaft diameter: 200-400mm
Shaft width: 800mm
Shaft Dia.: 400mm
After Warranty Service: Online support
Local Service Location: Egypt
Port: Shanghai
Contact Now
Company Info.
MOOGE TECH MACHINERY CO., LTD
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

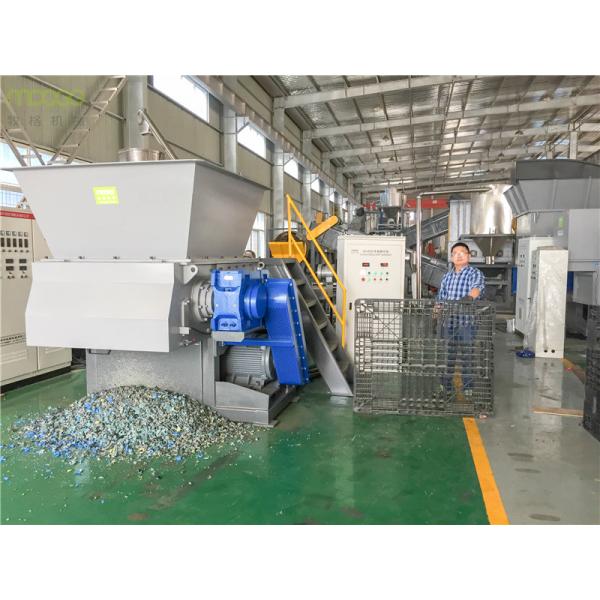

PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder


Big Diameter HDPE PVC pipe plastic shredder /recycling shredding machine

Plastic shredder/shredding machine was main used to shred different kinds of plastic materials, especially very large waste plastic.
single shaft shredder machine can shredding plastic lumps, barrels, pipes , wood, wood pallet, big block material, plastic container, plastic chair , plastic pallet, woven bags ,jumbo bags, cable tc.
Our company has many years experience in manufacturing the plastic shredder machine, we supply 300~2000 kg/h capacity . we also can make it according to your requirement.
1. It adopts PLC control system, automatic overload protection and auto reverse switch
2. Good shaft structure design, low noise,
blades easy changeable
3. The low rotation speed results in a particularly quiet shredding process with low levels of dustgeneration
4. It can be adjusted according to customer specific requirements for throughput volume
Product Paramenters
Model
VS-2860
VS-4080
VS-40100
VS-40120
VS-40150
VS-48150
Motor
22KW
37KW
45KW
55KW
75KW
90KW
Rotor speed
83 RPM
83 RPM
83 RPM
83 RPM
83 RPM
83 RPM
Rotor Diameter
280 mm
400 mm
400 mm
400 mm
400 mm
480 mm
Rotor Blade Qty
26 PCS
38 PCS
46 PCS
58 PCS
74 PCS
111 PCS
Fixed blade Qty
1 PCS
2 PCS
2 PCS
2 PCS
3 PCS
3 PCS
Screen diameter
60mm
60mm
60mm
60mm
60mm
60mm
Capacity
300 kg/h
600 kg/h
800 kg/h
1000 kg/h
1500 kg/h
2000 kg/h
Product Photos
Rotary shaft
The rotary shaft made by high quality carbon steel,anti-worn
Rotary blade
Move blade made by D-2, by bolt fixed in the rotor shaft ,it is easy for worker change it . blade can use 4 times when the blade worn after using long time
Fixed Blade
Using D-2 materail,USA Standard,HRC 58-59 more better than SKD-II,We also can use DC-53 material
Screen
the screen use 10mm thickness carbon steel made,with 60mm screen,the flakes will easy shredding and down
Motor,Using Beide brand motor(siemens standard motors ltd in china)
Bearing,Using Japan famous brand- NSKoriginal import from Japan factory We also supply SKF bearing for customer
Contactor,Use Schneider brand in us control system
PLC,Use Siemens PLC for shredder machineAutomatic control rotor shaft postive , negative rotary
Before shredding(Raw materail)
After shredding(Plastic flakes)
