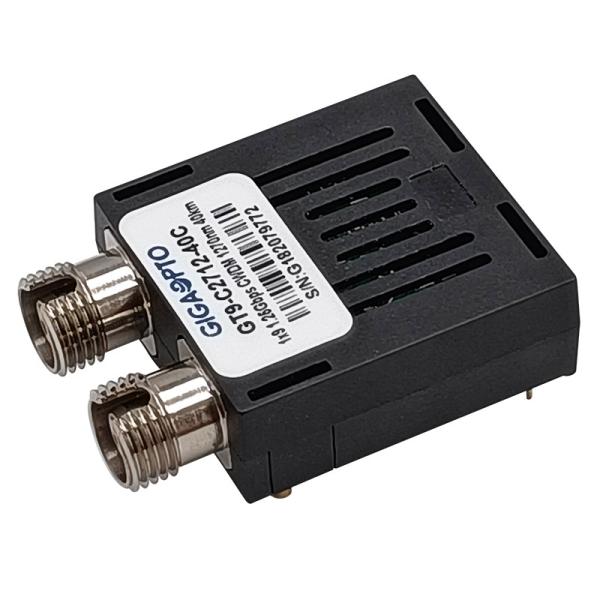

40km 1x9 Optical Transceiver 1.25Gbps CWDM 1270nm 1610nm SMF Duplex SC ST FC Transceiver Module

1.25Gbps 1x9 CWDM 1270nm to 1610nm 40km SMF Transceiver Module LVPECL PECL Duplex SC/ST/FC

Description

The GIGAOPTO's GT9-Cxx12-40x series single-mode 1×9 transceivers are low power, high performance modules supporting up to 1.25Gb/s data rate for duplex optical data communications such as Gigabit Ethernet and Fiber Channel.

This series CWDM 1×9 transceiver module provides 40km transmission distance over single mode fiber. There are 18 center wavelengths available from 1270nm to 1610nm, with each step 20nm.

The transmitter section uses a multiple quantum well WDM DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. A PECL logic interface simplifies interface to the external circuitry.

Specification

Features

• Industry Standard 1x9 Footprint
• Duplex SC/ST/FC SMF Transceiver
• Compliant with IEEE 802.3z Gigabit Ethernet
• 18-Wavelength CWDM DFB LD Transmitter from 1270nm to 1610nm, with each step 20nm
• PECL Signal Detection Output
• +3.3V /+5V single power supply
• Link distance up to 40km
• Standard PECL or LVPECL data output with signal detect indicator
• Wave Solderable
• Class 1 FDA and IEC60825-1 laser safety compliant
• RoHS6 Compliant and lead-free
• Ambient operating temperature: Commercial: 0℃~+70℃, Industrial: -40℃~+85℃

Application

• 1x Fiber Channel
• Switch to Switch Interface
• Gigabit Ethernet
• Switched Backplane Applications
• Fiber media converters

Ordering Information
