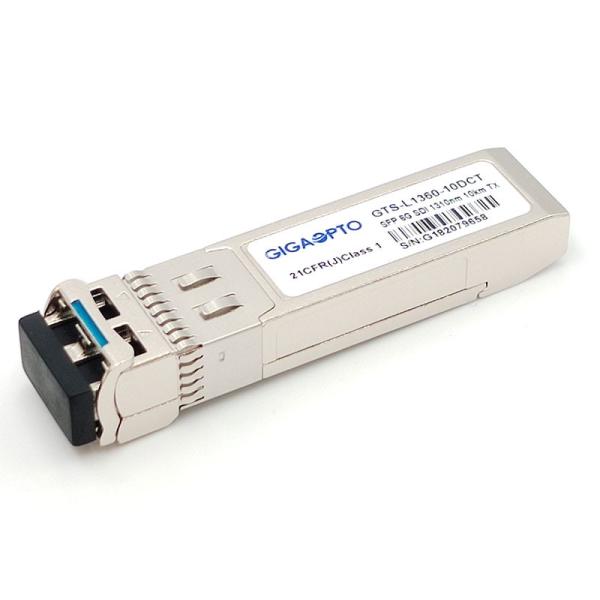

6G SDI SMPTE SFP 1310nm 10km SMF LC Single Transmitter Modules MSA

6G SDI Single Transmitter 1310nm 10km SMF LC DOM MSA

Description

This 6G Transmitter Module is designed for single-channel video transmission applications over 10km transmission on SMF via 1310nm Wavelength with a simplex LC connector, It supports the data rates from 50Mb/s to 5.94Gb/s,They are specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE259M, SMPTE 344M, SMPTE 292M, SMPTE 424M and ST-2081 serial rates.

This transmitter consists of two sections: a DFB laser transmitter and MCU control unit. All modules satisfy class I laser safety requirements.

Functional Specification

Features

• Supports video pathological patterns for SD-SDI, HD-SDI, 3G-SDI and 6G-SDI
• Operating data rate from 50Mbps to 5.94Gbps
• Metal enclosure, low EMI
• 1310nm DFB laser, without photodiode
• Fiber distance up to 10km
• Single 3.3V Power supply
• Simplex LC Connector Interface
• Hot Pluggable
• Compliant with SFP MSA and SFF-8472
• Real time digital diagnostic monitoring through the I2C interface
• Operating case temperature:

0°C to +70°C

-20°C to +85°C

• RoHS-6 compliant and Lead-Free

Applications

• Camera, Video, Security Monitoring, etc
• 4K /HDTV/SDTV Service Interfaces
