| Categories | LED Street Light Fixtures |
|---|---|
| Brand Name: | Die Casting Man/OEM |
| Model Number: | YSSL-11-50B |
| Certification: | CE,ROHS.ENEC.CB |
| Place of Origin: | China |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000PCS/Month. |
| Delivery Time: | 7-30 days base on order quantity |
| Packaging Details: | Carton box with foam |
| Material: | Die casting aluminum |
| CRI: | >70 |
| Fixture Color: | grey black silver |
| Input Voltage: | AC85 - 265V |
| Working Ambient Temperature: | -30℃ - 50℃ |
| IP: | 65 |
| Lamp Power: | 30w 40w 50w 60w 80w 100w 120w |
| Warranty: | 5years |
| Company Info. |
| NingBo Die-Casting Man Technology Co.,ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

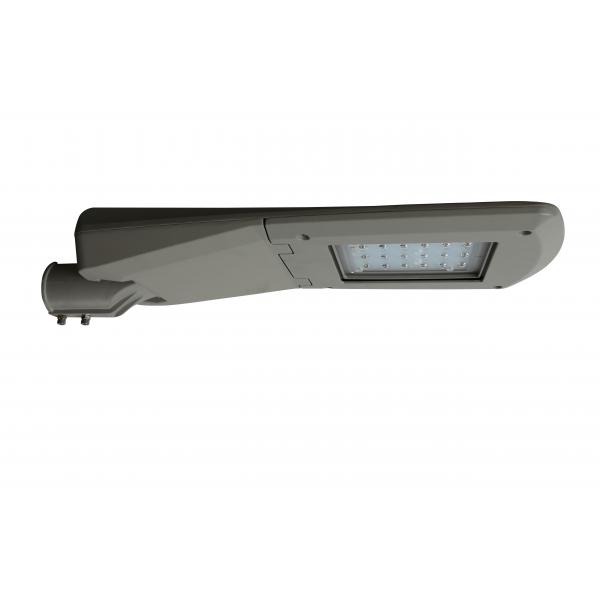

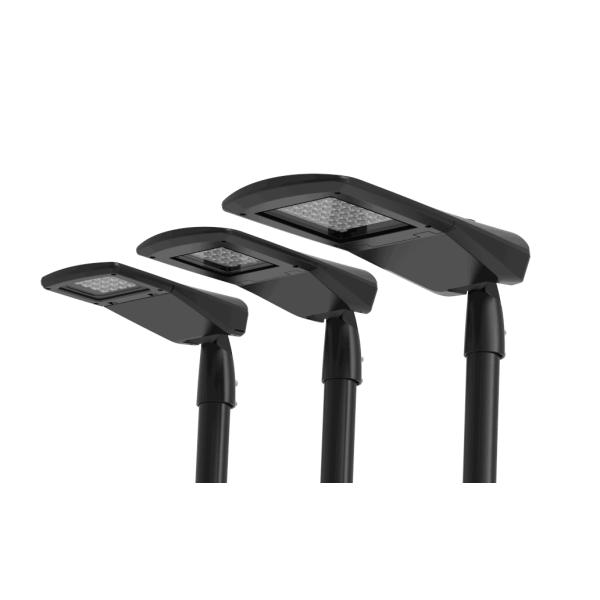

Feature:
.Die casting aluminum body with anti-corrosion treatment.
.Highly polished aluminum reflector.
.Toughened glass with good light transmition rate.
.IP65 Rated for external use
.Equipped with LG/CREE LED chip, generate high luminous flux
.LED emiiter brand can be varied according to requirement.
.High efficient and power factor LED power supply.
.Longlife span over 50000 Hours.
.Obtain a 50-70% Energy Saving compared with Halogen Lamps.
Application:
Motorways , Major roads, minor roads, roundabouts, crossings and
industrial areas.
Specification:
| Item NO. | ZHSL-11-30 | ZHSL-11-50 | ZHSL-11-120 |
| Warm White | Neutral White | Day Light | |
| LED Lifetime | 50000h | 50000h | 50000h |
| Color Temperature | 3000K | 4000-4500K | 6000-6500K |
| Luminous Flux Output | 3000LM | 5000LM | 12000LM |
| LED Quantity (with LG Led) | 24pcs | 24pcs | 60pcs |
| Power Factor (with Inventronics Power Supply) | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| Input Voltage ((with Inventronics Power Supply) | AC 100-240V | AC 100-240V | AC 100-240V |
| Color Rendering Index (CRI) | Ra>70 | Ra>70 | Ra>70 |
| International Protection Marking (IP code) | IP65 | IP65 | IP65 |
| Impact resistance (glass) (IK code) | IK08 | IK08 | IK08 |
| Frecquency Range (with Inventronics Power Supply) | 50/60Hz | 50/60Hz | 50/60Hz |
| Temperature of Working Condition | -40℃ - 50℃ | -40℃ - 50℃ | -40℃ - 50℃ |
| Surge protection to preserve the luminaire from voltage spikes (in kV) | 10kV | 10kV | 10kV |





Lighting Distribution :

|
