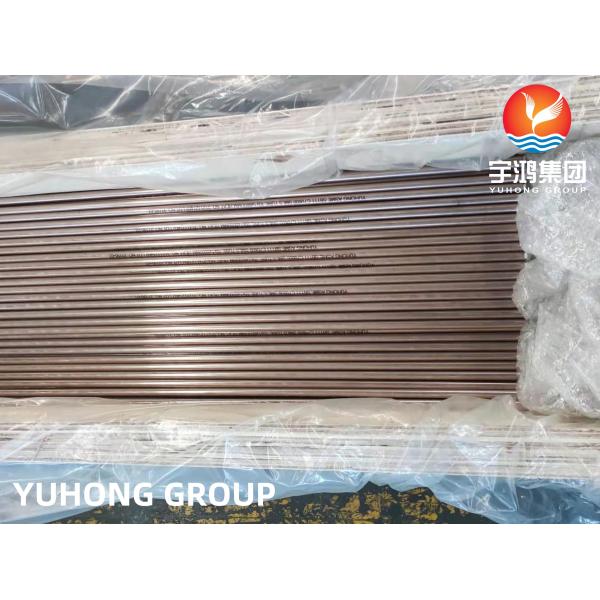

ASTM B111 C70600 Copper Nickel Seamless Tube For Heat Exchanger HT Available

ASME SB111 C70600 Copper-Nickel Alloy Seamless Tube

ASME SB 111 pipe, resistant to seawater corrosion, with high antifouling properties to marine microorganisms. Widely used in shipbuilding, petrochemical, natural gas and other offshore and related industries, C70600 Copper Nickel Pipe / Copper Nickel 90/10 Seamless Pipe has good corrosion resistance, especially in sea water.

UNS C70600 copper-nickel alloy is annealed at 593 to 816°C (1100 to 1500°F). UNS C70600 copper-nickel alloy has good cold workability. Suitable for high temperature service.

UNS C70600 copper-nickel alloy is used in areas where stainless steel cannot be used due to chloride stress corrosion cracking (CSCC) and other parts where high corrosion resistance is required. These alloys are also used as machined and forged valve and pump components for seawater service. C70600 (90/10) copper-nickel alloy is highly resistant to seawater corrosion due to its high content of manganese and iron. Suitable for marine condensers, copper-nickel alloy Copper 90/10 and copper-nickel alloy Copper 70/30 are used in seawater condensation systems, heating and water supply, chemical industry, seawater desalination, etc.

Copper alloys UNS C70600 and C71500 are standard specification seamless copper-nickel alloy pipes for desalination plants.

However, the C70600 and C71500 alloys are easily welded by the most common methods. Both alloys should be welded using consumables from Alloy C71500. When welding copper-nickel to steel, 65% nickel-copper consumables should be used because they can withstand more iron dilution from steel than C71500 copper-nickel consumables.

ASTM B111/ B111M : Standard Specification for Copper and Copper-Alloy Seamless Condenser Tubes and Ferrule Stock

Copper Nickel Alloy Tube ASME SB111 C70600 (Cu-Ni 90/10) O61 , 1//2H
Copper Nickel Tube, Admiralty Brass Tube, Aluminum Brass Tube, ASME SB111 C44300, C71500, C70600, C68700 etc.

Cu-Ni Tube Standards: ASTM B111
Cu-Ni Tube Type: Welded Tube / Seamless Tube
Cu-Ni Material: Cu-Ni 90/10, Cu-Ni 70/30
Cu-Ni Seamless Tube Dimensions:
Outer Diameter Range: 5 - 330 mm
Wall Height Range: 0.4 - 10 mm
Length Range: < 15000 mm
Cu-Ni Welded Tube Dimensions:
Outer Diameter Range: 100 - 5, 000 mm
Wall Height Range: 0.4 - 100 mm

Length Range: < 15000 mm

TESTING: ET; HT; Flattening Test; Expansion Test, Mercurous Nitrate Test; Ammonia Vapor Test; Chemical Analysis; Microscopical Examination; Tension Testing.
