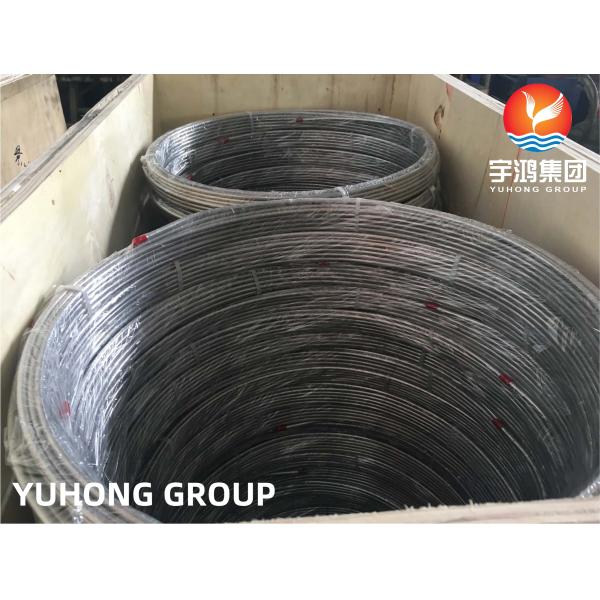

ASTM A269 TP316L 1.4404 Stainless Steel Coil Tube For Chemical

ASTM A269 TP316L 1.4404 Stainless Steel Coil Tube For Chemical

YUHONGL has dealt with stainless steel seamless pipe and tube for more than 30 years. Every year we export more than 5,000 tons of stainless steel pipes and tubes. Our client covers more than 75 countries. Our stainless steel seamless pipe and tube was widely used in Mining, Energy, Petrochemical, Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc.

Stainless steel coiled tube is available mainly for hydraulic tube, stainless steel instrumentation tubing, capillary tube, and bright annealed tube. This product is manufactured by cold drawn / cold roll method.

Tube, Outside Diameter: 1/4 IN, Wall Thickness: 0.049 IN, Material: 316L Stainless Steel, Material Standard: ASTM A269/ASME SA269, Method Of Manufacturer: Welded, Maximum Pressure: 7350 PSI At -20 To 100 DEG F, Additional Specifications: Tensile Strength: 70000 PSI, Yield Strength: 25000 PSI,

Features & Advantages:

Seamless stainless steel coil tubing can reduce the cost of installation due to:
– Higher rate of materials utilization
– Fewer collections
– System integrity can be improved much
– Improve the ety of the pipeline system

Chemical Composition - Stainless Steel 316/316L:

Material Grade:

• Diameter from 3mm (0.118”) to 25.4mm (1.00”) OD.
• Wall thickness from 0.5mm (0.020”) to 3mm (0.118”).
• OD tolerance +/- 0.005” (0.13mm) and +/- 10% wall thickness. Other tolerances are available on request.
• Coil lengths up to 1500m (5,000ft) without orbital joints depending on product dimensions.
• Coil lengths up to 13,500m (45,000ft) with orbital joints.
• Encapsulated, PVC coated or bare line tubing.
• Available on wooden or steel spools.

The quality of our products for the control line in oil and gas sector is assured not just during the controlled manufacturing process but also by way of finished product testing. Typical tests include:
• Non-destructive tests
• Hydrostatic tests
• Surface finish controls
• Dimensional accuracy measurements
• Flare and coning tests
• Mechanical and chemical property testing

Applications: widely used in petrol, chemical, pharmacy, foodstuff, machinery, spaceflight, industry.
