| Categories | Precision Seamless Steel Tubes |
|---|---|
| Brand Name: | Torich |
| Model Number: | EN10305-1 |
| Certification: | ISO 9001 ISO14001 TS16949 |
| Place of Origin: | China |
| MOQ: | 5tons |
| Price: | 1200-1400USD/ton |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000tons per year |
| Delivery Time: | 5-8 week days |
| Packaging Details: | In bundles |
| Material: | E355 E235 St52 16Mn 1045 |
| Standard: | EN10305-1 |
| OD: | 6 - 350 mm |
| WT: | 1 - 35 mm |
| Application: | Mechanical purpose |
| Length: | max 12000mm |
| Company Info. |
| Torich International Limited |
| View Contact Details |
| Product List |

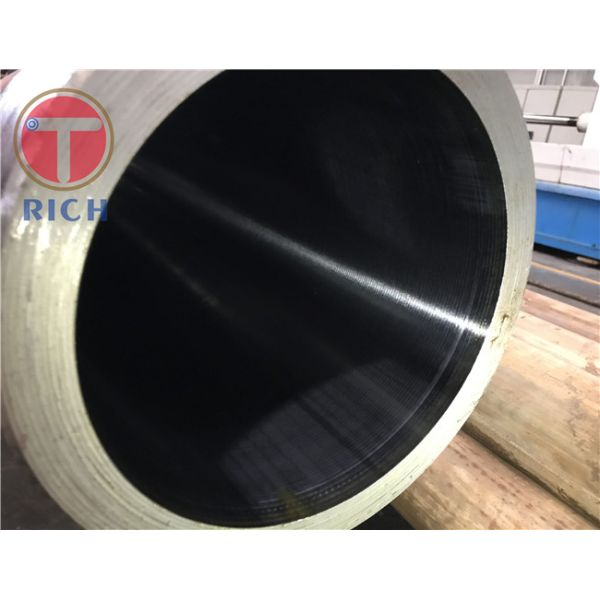

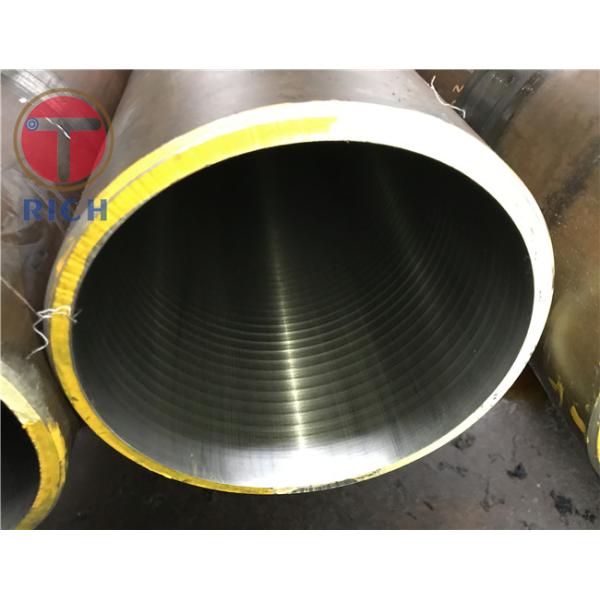

Precision Automotive Steel Tubes En10305-1 Ready to Honed steel
pipes
Size range: O.D.:6-350mm W.T.:1-35mm L:max12000mm
Standard: EN10305-1 ASTM A519 GB/T3639 DIN2391 JIS G3445
Material:E235/ SAE1020/ SAE 1045 /10 # 20# 45#/ /DIN ST52/STKM 11A /STKM12B
Straightness:1/1000m
Tolerance: OD≤0.08mm WT:≤+/-0.15
Improve the precision with method: Cold drawn/DOM
Product Feature:
1.High precision (can cut the costs of machining) .
2.Excellent surface finish
3.Good mechanical performance (Aneal ,Bright Anealing,QT heatment on
steel tubes to reach customers' Mechanical requsts. )
Chemical composition %(Max) | C | Si | Mn | P | S |
E235 | 0.22 | 0.55 | 1.60 | 0.025 | 0.025 |
SAE1020 | 0.18-0.23 | 0.30-0.60 | 0.04 | 0.05 | |
SAE 1045 | 0.43-0.50 | 0.60-0.90 | 0.04 | 0.05 | |
10 # | 0.07-0.13 | 0.17-0.37 | 0.35-0.65 | 0.035 | 0.035 |
20# | 0.17-0.23 | 0.17-0.37 | 0.35-0.65 | 0.035 | 0.035 |
45# | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | 0.035 | 0.035 |
St52 | 0.22 | 0.55 | 1.6 | 0.25 | 0.025 |
STKM 11A | 0.12 | 0.35 | 0.6 | 0.04 | 0.04 |
STKM12B | 0.20 | 0.35 | 0.6 | 0.04 | 0.04 |
1.+C /BK | No heat treatment after final cold drawing process. |
2.+LC/BKW | After the final heat treatment there's a suitable drawing pass. |
3.+SA/BKS | After the final cold drawing process there's a stress relief heat
treatment in controlled atmosphere. |
4.+A/GBK | After the cold drawing process the tubes are annealed in a
controlled atmosphere. |
5.+N/NBK | After the final cold drawing operation the tubes are normalized in
a controlled atmosphere. |
Items & Condition
Delivery: 30-45days
Payment : T/T. LC.Alibaba Tade Assurance Order
Packaging: In Hexagonal bundles ,Wooden boxes packaging.
Quantity tolerance: +/-10%
Marks on pipes(tubes): Standard,Steel Grade, Size, Heat No.( or at
the buyer's option).
Mill Test Certificate:EN10204 3.1
. Tubes for structural applications
. Standard mechanical tubing
. Hydraulic Cylinder Applications
. Heavy Equipment And Agriculture
|
