| Categories | Brake Hose Assembly |
|---|---|
| Brand Name: | HSBRK |
| Model Number: | MBRK-24 |
| Certification: | DOT,CQC |
| Place of Origin: | HENGSHUI,CHINA |
| MOQ: | 500 Pieces |
| Price: | Negotiations |
| Payment Terms: | L/C, T/T, Western Union,Paypal |
| Supply Ability: | 5000 Pieces/Day |
| Delivery Time: | 10 Work Days |
| Packaging Details: | 200Pcs/Carton |
| Material: | Pvc,Stainless Steel,Nylon,Ptfe |
| Color: | 25 Colors Available |
| Banjo Diameter: | 10mm |
| Banjo Angle: | 0°,28°,90° |
| Banjo Material: | Chromed Steel,Army Green,Zinc Plated...... |
| Burst Pressure: | 70Mpa |
| Temperature Range: | -40°C to 100°C |
| Pressure Test: | 10Mpa +15 Seconds |
| Company Info. |
| HENGSHUI BRAKE HOSE MACHINERY CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

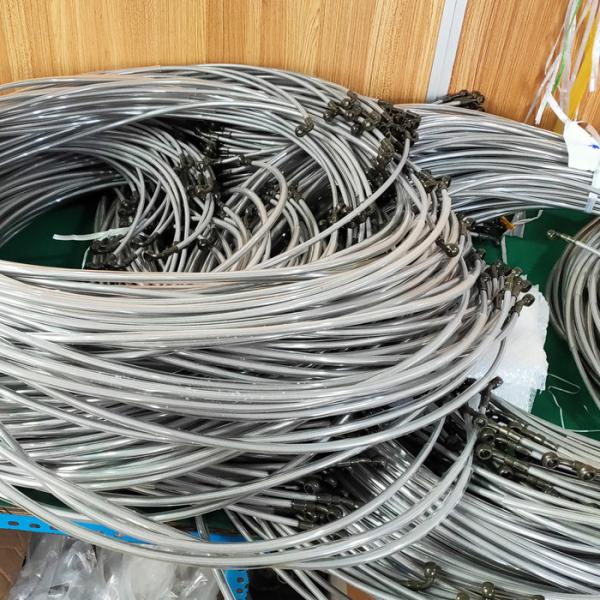

Steel Stainless Steel 304 Banjo Male Thread Fitting Motorcycle Brake Hose Assembly
Description:
Condition:100%Brand New
Quality:Each brake hose assembly pressure tested before shipping,Gurantee
no leaking when you use our brake hose
Color:25 colours
Size:400mm 500mm 600m 700m 800m 1000mm 1100mm 1200mm 1300mm 1800mm
1900mm 2000mm 2100mm 2200mm
Installation: easy to install, no installation instrument
Fit:Universal fit most of motorcycles ,motors, UTV,. ATV etc.hydraulic
brake system
Feature:
Hole Inner Diameter (Approx.): 10mm
banjo bolts:28°- 28°
Note:
1.We provide clear pictures, measurements where possible. Please
check as much as possible to make sure the item is the one that you
need.
2. Please allow 0.5-1 inch difference due to manual measurement.(1
inch=2.54cm)
3.The color of the actual items may slightly different from the
listing images due to different computer screen, thanks for your
understanding.
4.Instruction is not included.Professional Installation Is Highly
Recommended!
Features
PVC/PU out cover and stainless steel braiding protection provide products with excellent aging resistance, corrosion resistance, high and low temperature resistance, durable quality and fresh colour.
Specification
| Test Items | Test Condition | Standard | Test Results |
| ID | Normal | 3.2mm | 3.15~3.45mm |
| OD | Normal7 | 7.5mm | 7.30~7.70mm |
| Expansion | 1000psi | 0.33cc/ft max. | 0 cc/ft |
| 1500psi | 0.42cc/ft max. | 0 cc/ft | |
| 2900psi | 0.61cc/ft max. | 0 cc/ft | |
| Burst | 4000psi×2min;pressure rated 25,000±10,000psi/min | >7000psi No seepage | >10,500psi |
| Whip | 235~250psi | >35h | >70h |
| Tensile | tensile speed:218±3mm/min | >1446N | 2600N |
| Cold Bend | -45°C ~-48°C× 72h, 3-5s,bending180° | No cracking | No cracking |
| Ozone | 100pphm×70h×40°C, 7X | No cracking | No cracking |
| Impulse | 146°C 1±0.1min at 1600psi+70 | >7000psi No crack | >7500psi |
| Compatibility | 120°C × 70h | >7000psi No seepage | >8800psi |
| Salt Spray | 5%NaCl, 24h,water cleanout in 35°C | No red rust | No red rust |
| Water Aging | Water in 85±2°C,after 70h~72h 4000psi × 2min;pressure rated 25,000±10,000psi/min | >7000psi; >35h; >1446N | >10250psi;>60h; >2200N |
|
