Steel And Rubber Truck Air Spring Firestone W01-358-6935 Contitech FD200-19499

Categories Truck Air Spring
Brand Name: Yiconton
Model Number: 2B 5251
Certification: IATF16949
Place of Origin: China
MOQ: 1 piece
Price: Negotiate
Payment Terms: T/T
Supply Ability: 500pieces/Month
Delivery Time: 5-8 Work Days
Packaging Details: Carton
Main Material: Rubber+Metal
Product name: Double Convoluted air spring
Net weight: 3.89 kg
Package dimension: 24*24*24 mm
Bellows Type: Double Convoluted
Cross references: W01-358-6935
Operation: Gas-filled
Plate Dia: 160mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Steel And Rubber Truck Air Spring Firestone W01-358-6935 Contitech FD200-19499

Steel And Rubber truck air spring Firestone W01-358-6935 Contitech FD200-19499


Cross references
Automann
SP2B12R-6935
Firestone No.
W01-358-6935
Firestone No.
W01-358-6856
Firestone Style
20
FleetPride
AS6935
Goodyear
2B9-201
Goodyear Flex No.
578923202
Road Choice
RC62C19 6935
Taurus
6325
Triangle
AS-4499
TRP
AS69350
Contitech
FD200-19499
Original parts
R&S Truck
1027505
Granning
4848
Loadguard
SC2010
Navistar/Fleetrite
554784C1
Hendrickson
S-14318
Hendrickson
3318
Sauer
P50-733A
Suspensions, Inc.
200042
Granning
702932-01
Meritor
201548
Navistar/Fleetrite
2B9-491
Freightliner
16-14318-000
Taurus
AS218-6902
Ridewell
S1728C
Technical parameters

Nut / Blind Nut


Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 89 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 89 mm


Gas Hole / Air inlet / Air Fitting


Gas Hole / Air inlet : 1/4-18NPTF

Screw Center Distance Between Gas Hole and Nut : 44.5 mm


Cover Plate


Top Cover Plate Diameter: 160 mm

Bottom Cover Plate Diameter: 160 mm


Rubber Bellows


Rubber Bellows MAX Diameter: 251 mm

Rubber Bellows Natural Diameter : 224 mm

The Working Stroke : MIN 75 mm to MAX 260 mm

Maximum Height : 274 mm

Minimum Height :95mm

Stroke Height : 179mm


Features


* Features with heavy duty double convoluted crimped design which allows safe and comfortable load capacity up to 2500 pounds.
* Built to strict quality control standards.
* Designed for Comfort Suspension.
* Bring better handling and ride comfort.

Benefits


Require little to no maintenance
Pressure tested for quality assurance
Increase towing and hauling capabilities
Replace worn out oem air bags
Increase life of other suspension components
Manufacturer: Firestone
Double Convoluted Air Bag


About Yiconton


We are the biggest manufacturer of air suspensions parts in China. Our products have been imported worldwide. We can provide you with quality products and good service.

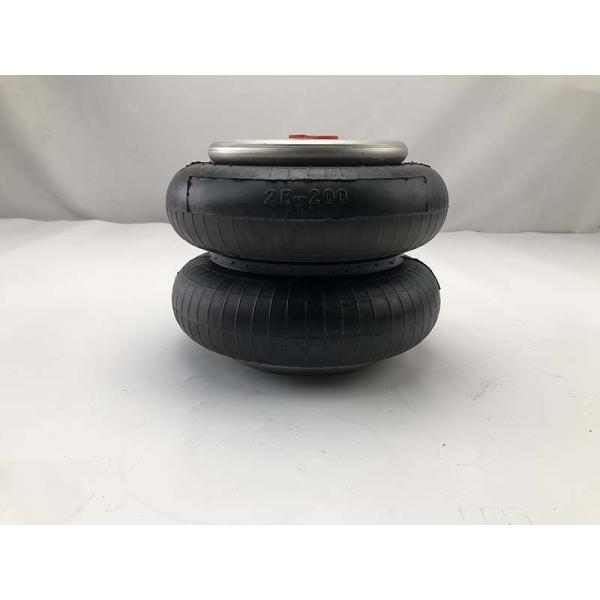

Product picture
