| Categories | Powder Grinder Machine |
|---|---|
| Brand Name: | Brightsail |
| Model Number: | BSP |
| Certification: | CE ISO |
| Place of Origin: | China |
| MOQ: | one set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
| Delivery Time: | 30-35 days |
| Packaging Details: | Container |
| Product name: | kenaf core flour mill |
| Discharge motor(kw): | 0.75-1.5 |
| Capacity: | 20-1800 kg/h |
| Finished Product: | kenaf core powder |
| Fineness: | 60-2500 mesh |
| Blower(kw): | 7.5-37 |
| Other name: | kenaf core powder making machine |
| other name: | kenaf core crushing mill |
| Company Info. |
| Jiangyin Brightsail Machinery Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
60 To 2500mesh Powder Fineness 20 To 1800kg Per Hr Capacity Kenaf Core Flour Mill
Product introduction:kenaf core flour mill
This kenaf core crushing mill is composed of main motor, auxiliary motor and electric control box. It is characterized by no screen to ensure equal particle size of finished products and continuous discharge. This machine has reached the international advanced level and is suitable for pharmaceutical, chemical, food and other industries.
Technical data:kenaf core flour mill
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Working method:kenaf core flour mill
The material enters the grinding chamber through the screw conveyor, where it is cut and ground by the rapidly rotating blades. The powder enters the classification chamber through the guide ring. When the grading wheel rotates, air and centrifugal force act on the powder at the same time. The particles with particle size larger than the critical diameter (graded particle size) have greater mass and are thrown back to the grinding chamber for crushing again. Particles with particle size less than the critical diameter enter the cyclone separator and dust removal box.
Advantages:kenaf core flour mill
1. The design is compact and the structure is reasonable. The inner part of the material is provided with a indexing mechanism, which can be used for friction and indexing at the same time to reduce energy consumption.
2. The machine is equipped with fan for continuous heat dissipation, suitable for grinding of heat sensitive materials.
3. Flexible, narrow particle size distribution. Product granularity is even, fineness can reach 80-320 items.
4. In the case of tailings, it may not be possible to adjust the speed or air separator to achieve uniform product size distribution.
5. The main engine opens the head by means of a pneumatic spring. The main structure can be opened in both directions, which is beneficial to the cleaning and maintenance of the internal parts.
6. The main wear using high-grade alloy tool steel, greatly extended wear life or replacement cycle.
7. The bearing system adopts imported high-speed precision bearing, the movement is stable, the vibration, the noise is low.
8. The pipeline has a quick disassembly structure and is convenient for disassembly and cleaning.

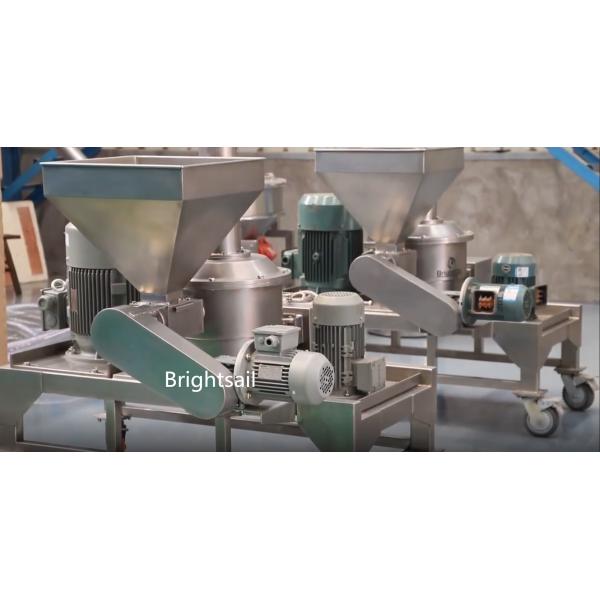

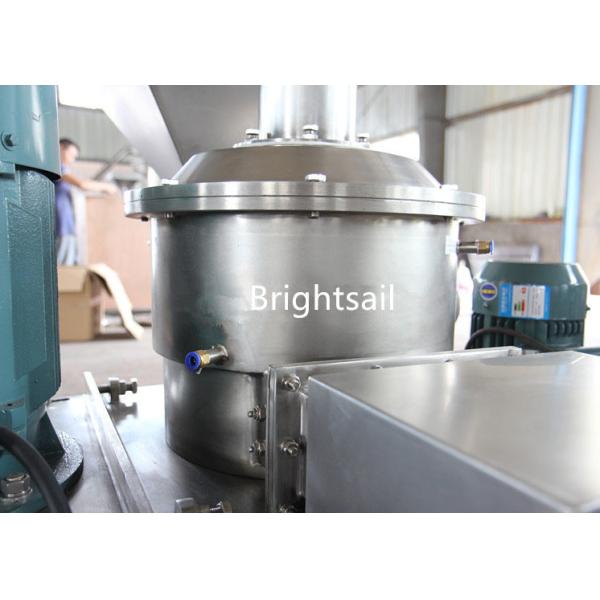

Detailed images:kenaf core flour mill
How Can I Buy This Machine?kenaf core flour mill
First of all, discuss all machines details and price with our sales
person.
Secondly, confirm the price and payment terms Trade assurance/TT/Escrow/Western Union etc.
Thridy, send us purchased order and confirm our Proforma Invoice and arrange deposit. Once well received the deposit, we will arrange production.
At last, please arrange balance payment for us once machine is ready, then we will arrange shipment booking after received the balance payment and shipping the machine to you.
|
