| Categories | Tinplate Lid |
|---|---|
| Brand Name: | QuanJiang |
| Model Number: | 200# 50mm tinplate can lid bottom cover |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 2000 000 pcs |
| Price: | Negotiated |
| Payment Terms: | T/T or negotiated |
| Supply Ability: | 9000 000 000pcs /Month |
| Delivery Time: | Negotiated |
| Packaging Details: | paper + carton, paper + wooden pallet. export standard packing . |
| Shape:: | Round |
| Package:: | paper + carton, paper + pallet. |
| Material type: | Tinplate & TFS |
| Thickness:: | 0.18mm 0.19mm 0.20mm 0.21mm,0.22mm,0.23mm,0.24mm,0.25mm,0.26mm,0.27mm,0.28mm,0.29mm,0.30mm or as customized |
| inner Coating:: | aluminum paste, golden, clear lacqure or customized |
| outer coating :: | golden, clear lacqure, silver or customized |
| outer printing:: | customized design printing, empty |
| Features: | rust resistance, corrosion resistance, heat resistance , alkali resistance |
| Company Info. |
| SHANGHAI QUANYE METAL PACKAGING MATERIALS CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
200# Tin can lid and bottom | ||||||||||
| Hook side | ≥3.07((mm) | moisture(%)≤4 | Conductivity 5(Ma) per piece, not exceeding 3(Ma) on average | Depth of disk | 0.60±0.10 | |||||
| 20%CuSO4 | After soaking in 20% copper sulfate for 3 minutes, there was no obvious rust | |||||||||
| Boiling detection | After high temperature sterilization at 121℃ for 30 minutes, the inner and outer coating film has no loss of light, no foaming, no wrinkling, no whitening. | |||||||||
| antiacid | After high temperature sterilization at 121℃ for 30 minutes, the inner coating film has no peeling, peeling, obvious corrosion and blistering. | |||||||||
| Resistance to sulfur | After high temperature sterilization at 121℃ for 60 minutes, the inner coating film has no peeling, peeling, obvious corrosion and blackening. | |||||||||
| inspection of appearance | No obvious scratches, leakage coating, no oil, clean and smooth, without loss of round, no obvious deformation; Good straightness when stacked. | |||||||||
Other items parameters

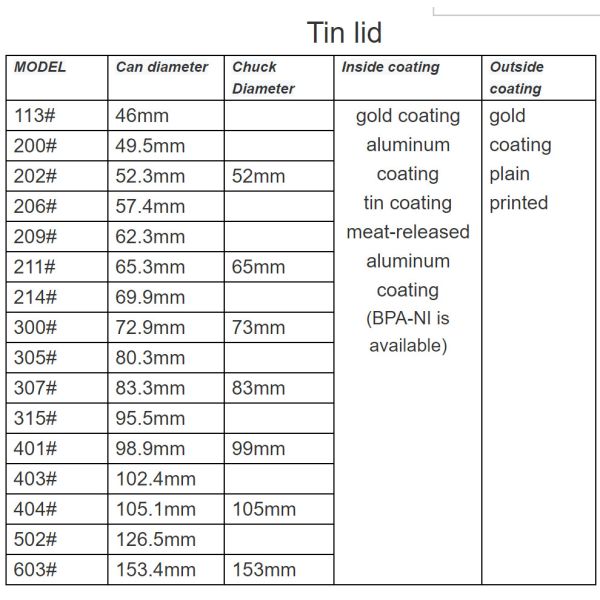

| Dimension | D49.5mm/ 52mm/62mm/ 73mm /83mm/99mm/153 mm 70mm |
| Model | 200# 202# 209# 300# 307# 401# 603# 65# aerosol cans tops and bottoms |
| Material | Tin Free Steel or Tinplate |
| Application | For canned food packing, eg. Meat /Fruit /Vegetable ; aerosol |
| Inside coating | Aluminum /White /Gold /Organosol Coating |
| Outside coating | Gold /Clear Coating with Logo design printing/ Clear |

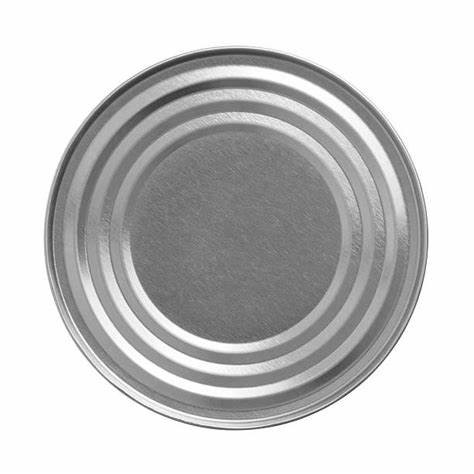

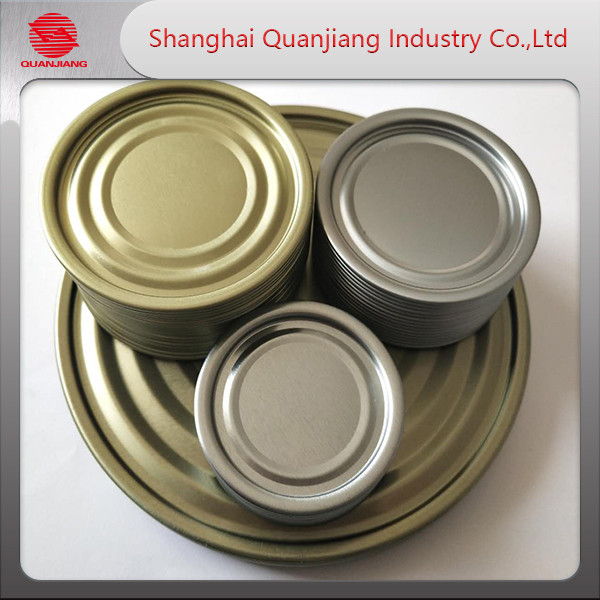

FOOD CAN BOTTOM ENDS-TIN CAN COMPONENTS
Food can bottom ends is usded both tin can lid and tin can bottoms; By different coating
inside,our can bottom ends could be used for different content, including meat can, tomato
paste can, fish can,fruit can, and dry food. The external side printing is customized, your logo
and brand could be shown on it. Our full specification could satisfy most of demand in metal
package, customized dimension and long term cooperation is welcome.
Production Process
Packing & Delivery
Carton packing or Board packaging .Corrugated carton packaging, products vertically arrange and
separated by a cross board.The packing is firm and the can cover does not leak out of the box.
|
