| Categories | Road Sweeper Truck |
|---|---|
| Brand Name: | clw |
| Model Number: | CLW5180TXSD6 |
| Certification: | CCC,SGS,BV |
| Place of Origin: | Suizhou,China |
| MOQ: | 1Unit |
| Price: | negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/A, D/P |
| Supply Ability: | 500 Units per month |
| Delivery Time: | 30 days after receiving deposit at account |
| Packaging Details: | Naked Package, Roll-Roll, Bulk Shipment, |
| Truck brand: | Dongfeng Kingrun |
| Garbage Box: | 9000L |
| Water Tank: | 7000L |
| Auxiliary Engin: | Cummins 170HP |
| Fan: | 5000 ~ 7800m3/h |
| Sweeping Capacity: | 48000m2/h |
| Brush: | 2 Numbers |
| Sweeping Width: | 2800mm-3200mm |
| Max Suction Diameter: | DN100mm |
| Dumping Angle of Garbage Box: | 45degree |
| Company Info. |
| HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

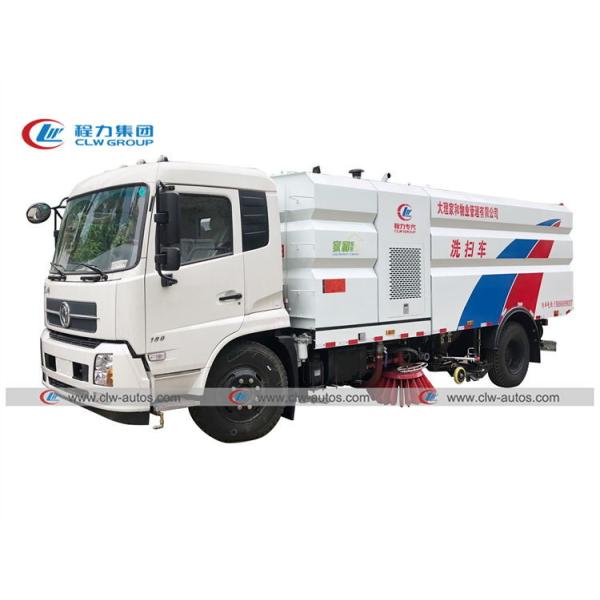

Dongfeng Kingrun 15Ton Cleaning Vacuum Sweeper Truck
Product Description
Description
Sweeping & Cleaning at same Time
7000L Water Tank
9000L Garbage Tank
Dongfeng Kingrun Chasssis
16Ton Overall Weight
You can communicate with Eric by whatsapp:+86 186 0715 8551
Sweeping Mode:
Road Sweeping mode, which only uses the sweeping brush to sweep the road.
Working Flow Chart:
Auxiliary Engine----Hydraulic Oil Pump-----Left & Right Sweeper Disc----Left & Right Sweeping Brushes
Auxiliary Engine--- Fan Working----Dust Tank, Suction Pipe & Sution Nozzle---High Speed Air Flow bring garbage Inside
Washing and Sweeping mode:
Road Sweeping and road cleaning functions are turned on at the same time.
Working Flow Chart:

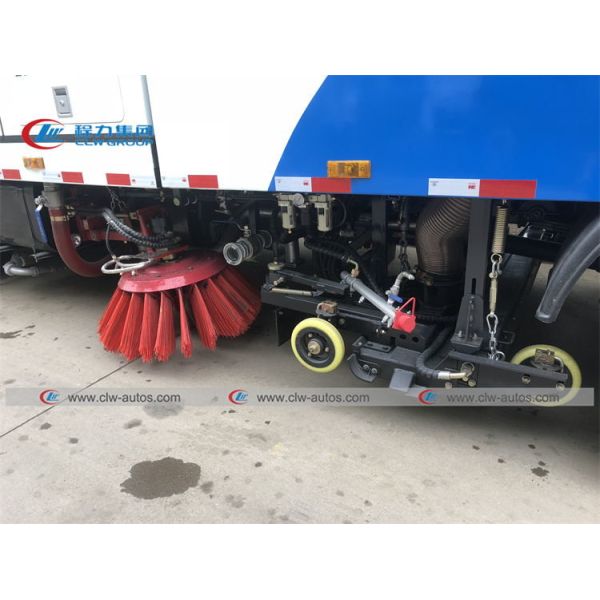

Auxiliary Engine----Hydraulic Oil Pump-----Left & Right Sweeper Disc----Left & Right Sweeping Brushes
Auxiliary Engine--- Fan Working----Dust Tank, Suction Pipe & Sution Nozzle---High Speed Air Flow bring garbage Inside
Auxiliary Engine---Auto Clutch—High Pressure Water Pump---Delivery Water----Left & Right Cleaning Nozzle

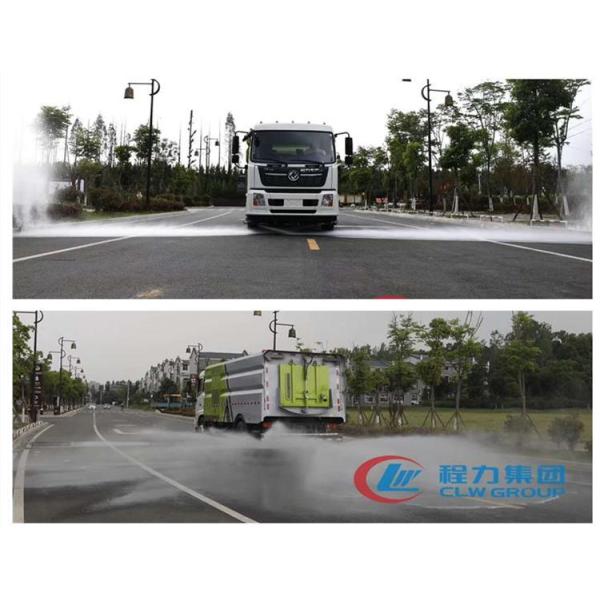

Rear Spraying:
This function is the same as the sprinkler function, mainly used to reduce dust on the road.
There is a spray bar under the trash bin at the rear of the scrubber, and there are multiple spray nozzles on the spray bar. Start the auxiliary engine and high-pressure water pump, turn on the rear spray switch, and start the chassis car to move forward, and then spray dust can be carried out.
Front Flushing:
This function is the same as the sprinkler flushing function, which is mainly used to flush the road surface.
Use the low pressure and large flow of the centrifugal water pump to wash the road surface as a sprinkler.
Specifications of 10Ton Vacuum Road Sweeper Truck
Rear Spraying:
This function is the same as the sprinkler function, mainly used to reduce dust on the road.
There is a spray bar under the trash bin at the rear of the scrubber, and there are multiple spray nozzles on the spray bar. Start the auxiliary engine and high-pressure water pump, turn on the rear spray switch, and start the chassis car to move forward, and then spray dust can be carried out.
Front Flushing:
This function is the same as the sprinkler flushing function, which is mainly used to flush the road surface.
Use the low pressure and large flow of the centrifugal water pump to wash the road surface as a sprinkler.
| Product | Dongfeng Kingrun Cleaning Sweeper Truck | ||
| Model No. | CLW5180TXSD6 | ||
| Chassis Model No. | DFH1180EX8 DAFC | ||
| Standard | GB3847-2005, GB17691-2018 Euro 2-Euro6 | ||
| Engine | Truck Engine | Engine Model | B6.2NS6B210 Cummins |
| Power(kw) | 154 | ||
| Hp(ps) | 210 | ||
| Displacement (ml) | 6200 | ||
| Deputy Engine | Sweeper Engine Model | B170 33 | |
| Power (kw) | 125 | ||
| HP(ps) | 170 | ||
| Displacement(ml) | 5900 | ||
| Diesel Type | Same Type of Diesel as truck | ||
| Truck Specification | Overall Size mm | L 8550* W2480* H3130 | |
| Wheel Base(mm) | 5000 | ||
| Tire | 275/80R22.5 18PR | ||
| Tire Quantity | 7(include 1 Spare) | ||
| Wheel Track | Front(mm) | 1876 | |
| Rear(mm) | 1820 | ||
| Passenger Allowed | 3人 | ||
| Overhang Front/Rear (mm) | 1430/2220 | ||
| Approaching Angle | 17° | ||
| Departure Angle | 25° | ||
| Ground Clearance(mm) | 320 | ||
| Loading Weight(kg) | 6870 | ||
| Truck Weight(kg) | 11000 | ||
| Gross Vehicle Weight (kg) | 18000 | ||
| Sweeping Specification | Garbage Box( m3 ) | 7,000L Stainless Steel | |
| Water Tank( m3 ) | 9,000L Stainless Steel | ||
| Sweeping Width (mm) | 2800-3200 | ||
| Sweeping Speed (km/h) | 3-15 | ||
| Truck Speed in cleaning (km/h) | 15-20 | ||
| Sweeping Capacity (m2/h) | 48000 | ||
Suction Capacity | Density(g/cm3) | 2.0 | |
| Weight (kg) | 1.5 | ||
| Max Diameter (mm) | ≥100 | ||
| Garbage Box Dumping Angle | ≥45° | ||
| Sweeping Efficiency | ≥96% | ||
| Working Noise(db) | < 88 Meet GB7258 Standard | ||
| Dust Control System | Spraying Type | Low Pressure Fog Type | |
| Main Components | Imported high pressure pump water filter pipeline stainless steel spray frame high pressure nozzle | ||
| High Pressure Water Pump | CPX036 | ||
Installation Position | Sweeping | Left & Right Sweeper | |
| Suction | Suction Pan Inside | ||
| Control Type | Electronic control, one key operation | ||
| Hydraulic System | Type | Open Type, electric control |
| Main Components | Gear pumps, Cycloid Motors, Hydraulic Cylinders, Solenoid Valves, Manifold Blocks, High-pressure Pumps, | |
| Cycloid Motors | Sanyo Motor | |
| Gearbox | Changyuan Machine | |
| Hydraulic Cylinder | Hi-Pressure(Italian Brand) | |
| Cylinder Sealing | DingJi | |
| Hydraulic Oil Pipe | Guangzhou Tianhe | |
| Solenoid Valves | Hi-Pressure(Italian Brand) | |
| Pressure Gauge | IMT (Shock Proof) | |
| Oil Filter | Sofima Brand | |
| Hydraulic Pressure | 10-12 Mpa | |
| Hydraulic Tank | ≥60 L | |
| Electrical System | System | Chassis & Deputy Engine Electrical System |
| Chassis Power Voltage (V) | 24 | |
| Working System Power Voltage(V) | 12 | |

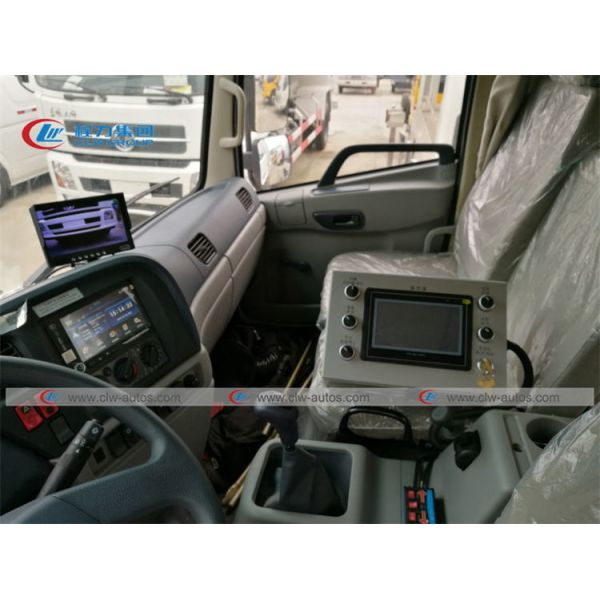

| Control Panel | Auxiliary engine tachometer, auxiliary engine water temperature gauge, oil temperature alarm device, various operation control switches | |
| Control Switch | Schneider Shanghai | |
| PLC | BaichaoFu | |
| Braker | Higer | |
| Battery | 12V-70A.H (2 units in parallel) | |
| Fan System | Type | High-pressure Centrifugal Fan |
| Brand | Changsha Lianyue | |
| Rated working speed | 2700 r/min | |
| Transmission type | Auxiliary engine, clutch, high temperature resistant A-belt drive with teeth (4) | |
| Fan Belt | Zhejiang Sanshili | |
| Automatic clutch | centrifugal type, imported material | |
| Air Volume | 5000 ~ 7800 (m3/h) |
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of sweeper trucks I can order from your company?
A: There are various sizes of sweeper trucks with different
functions,you can contact us and tell your request.We will
recommend you suitable product.
Q2: Have you supplied sweeper products to any overseas companies?
A: Yes,with need of cleaning cities,we offered sweeper trucks to
many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the
equipment is applied successfully into operation, or 13 months from
the date on which the equipment has been delivered, whichever comes
first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our
overseas marketing office in Wuhan. Wuhan is two hours' plane from
Beijing,Shanghai or Guangzhou city,welcome to visit us for factory
inspection.
|
