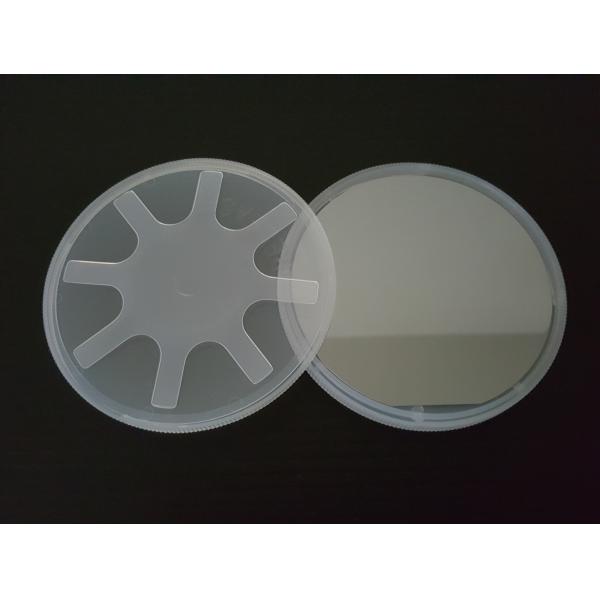

GaSb wafer ( Gallium Antimonide )
We provides GaSb wafer ( Gallium Antimonide ) to optoelectronics industry in diameter up to 2 inch . GaSb crystal is a compound formed by 6N pure Ga and Sb element and is grown by Liquid Encapsulated Czochralski ( LEC ) method with EPD < 1000 cm -3 . GaSb crystal has high uniformity of electrical parameters and low defect density , suitable for MBE or MOCVD epitaxial growth . We have "epi ready " GaSb products with wide choice in exact or off orientation , low or high doped concentration and good surface finish . Please contact us for more product information .
III-V Compound Wafer
We provides a wide range of compound wafer including GaAs wafer, GaP wafer, GaSb wafer, InAs wafer, and InP wafer .
Electrical and Doping Specification
Product Specification
| Growth | LEC |
|---|---|
| Diameter | Ø 2" / Ø 3" |
| Thickness | 500 um ~ 625 um |
| Orientation | <100> / <111> / <110> or others |
| Off orientation | Off 2° to 10° |
| Surface | One side polished or two sides polished |
| Flat options | EJ or SEMI. Std . |
| TTV | <= 10 um |
| EPD | <= 1000 cm-2 |
| Grade | Epi polished grade / mechanical grade |
| Package | Single wafer container |

|
