| Categories | Ceramic Thermocouple Protection Tubes |
|---|---|
| Brand Name: | OEM |
| Model Number: | 18" To 108" |
| Certification: | ISO9001 |
| Place of Origin: | Shaanxi, China (Mainland) |
| MOQ: | Negotiation |
| Price: | Negotiation |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders. |
| Supply Ability: | 6000 Ton/Tons per Year |
| Delivery Time: | base on order |
| Packaging Details: | Wooden Box (fumigation) |
| Name: | ceramic thermocouple insulators |
| Application: | Furnace |
| Material: | Alumina Ceramic, Silicon Nitride Si3n4 |
| Density: | 3.9g/cm3 |
| High Temperature: | 1500C |
| Company Info. |
| LUOYANG SUPER FOLIAGE IMPORT&EXPORT TRADE CO,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

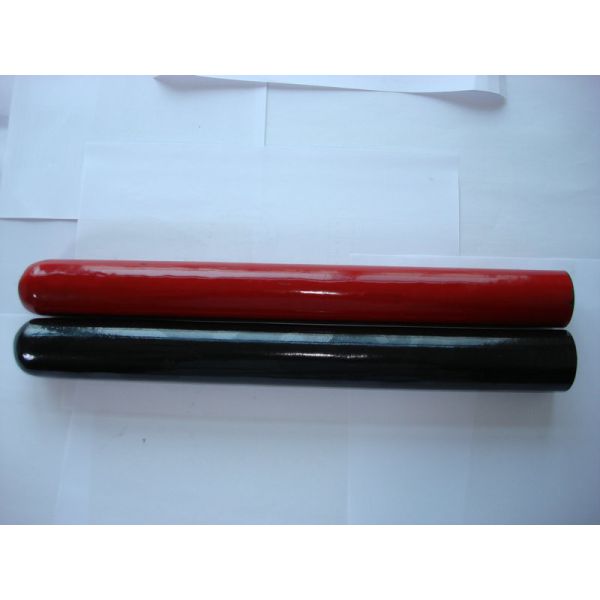

Casting Ceramic Thermocouple Protection Tubes 1500C High Temperature
Features of Ceramic Thermocouple Protection Tubes
1) A variety of specifications available.
2) Satisfy various technical request
3) Lower medium spoilage
4) Good insulation performance and high temperature resistance
5) High pressure
6) Mechanical strength
7) Wear resistance
Specification of Ceramic Thermocouple Protection Tubes
| Material/Composition | 99%Al2O3 | 95%Al2O3 | MgO SiO2 | ||
| Physical Property | Density | g/cm3 | 3.9 | 3.6 | 2.8 |
| Water absorption | % | 0 | 0 | 0 | |
| Sintering temperature | Centigrade | 1700 | 1680 | 1350 | |
| Hardness | HV | 1700 | 1500 | 800 | |
| Breaking strength | Kgf/cm2 | 3500 | 3000 | 900 | |
| Compressive strength | Kgf/cm2 | 30000 | 25000 | 4000 | |
| Thermal performance | Max service temperature | Centigrade | 1500 | 1450 | 1100 |
| Thermal impact | Centigrade | 200 | 220 | 200 | |
| Thermal expansion coefficient | /centigrade | 8.0*10-6 | 8.0*10-6 | 6.0*10-6 | |
Minimum Order Quantity: 100 branches
Delivery Time: 60days after the order.
Packaging Details: Wooden Box (fumigation).
Product name: Ceramic Thermocouple Protection Tubes
Application: Structure Ceramic
Type: Ceramic Tubes
Material: Alumina Ceramic
Certification: ISO9001
Size: 18" To 108" or Customer's Drawing
|
