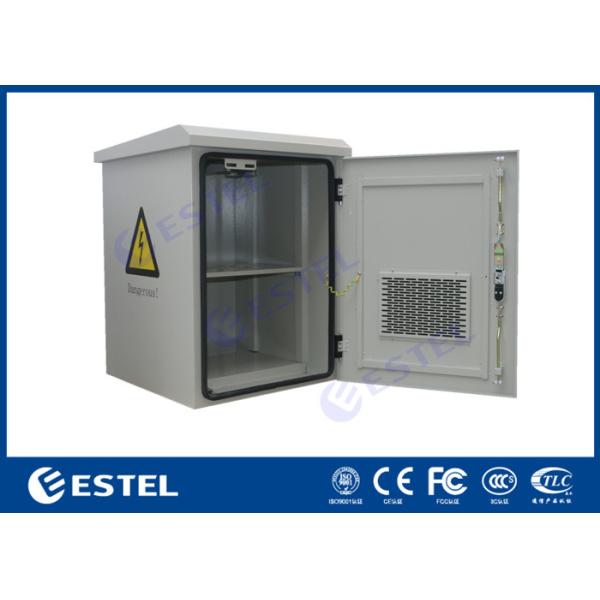

IP55 Thermostatic Outdoor Battery Enclosure Air Conditioner DC48V 500W
IP55 Thermostatic Outdoor Battery Cabinet 750×750×1100 Air Conditioner Battery Storage Cabinet
1. Outdoor battery cabinet overview
The outdoor battery cabinet can hold two layers of batteries . The cabinet is made of single layer galvanized steel with heat insulation,with a front door and DC48V frequency variable air conditioner installed on the door. Suitable for outdoor environment, waterproof, dustproof, sunproof and fireproof.
2. Technical data of battery cabinet
| No. | Description | Specification |
| I | Specification of cabinet | |
| 1 | Model | ET7575110-BA |

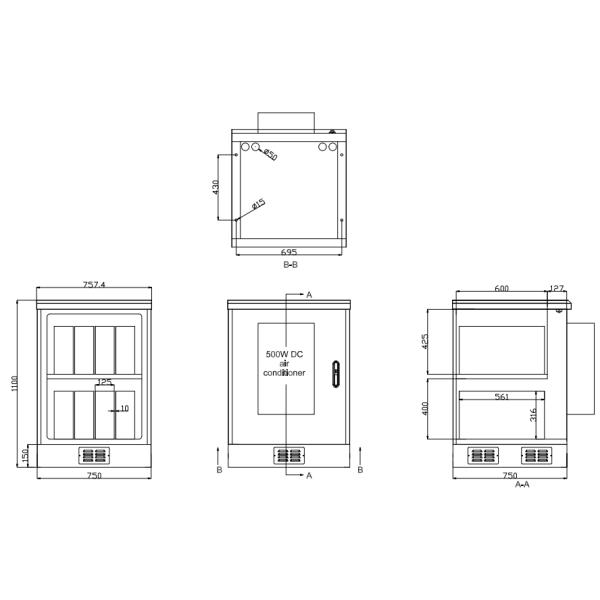

| 2 | External Size | W750×D750×H1100mm |
| 3 | Coating | Outdoor anticorrosion powder coating RAL7035 |
| 4 | Color | Grey RAL7035 |
| 5 | Battery Shelf No. | 2 |
| 6 | Door | One front door, door open angle can be reach 110°, |
| 7 | Lock | Outdoor special anti-theft three point locking(bottom, top and middle) |
| 8 | Material | Galvanized steel, single wall with heat insulation |
| 9 | Cabinet Installation | Grounding |
| 10 | Cable Entry | Located on the bottom |
| 11 | Lifting | 4 lifting hook on the cabinet base |
| 12 | Earthing | Grounding copper bar |
| 13 | Working Temperature | -40°C～+75°C |
| 14 | Protection Level | IP55 |
| 15 | Relative Humidity | 5% ~ 100% |
| 16 | Atmospheric Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| 17 | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
| II | Specification of DC48V 500W air conditioner | |
| 1 | Rated Cooling Capacity | 500W |
| 2 | Rated Heating Capacity | Optional |
| 3 | Rated Input Voltage | DC48V |
| 4 | Rated input power | 150W |
| 5 | Internal Airflow | 150M3/h |
| 6 | Refrigerant | R134a |
| 7 | Noise | 55dB |
| 8 | IP Grade | IP55 |
| 9 | Weight | 20kg |
| 10 | Operating Ambient Temperature | -15°C ~ 55°C |
| 11 | Installation Mode | side |
| 12 | Size (L×W×H) | 550×319×175mm |
Outdoor telecommunication battery cabinet is mainly used in the field of traffic, CATV, electric power, solar, communication base station etc. It can be used for back up power working together with rectifier system after mains power fails. Suitable for different conditions: gale, rain,snow,hail, frost, smog and solar radiate etc.
5. Feature
(1) Embedded structure design, effectively ensure the door is prized.
(2) Hot dip galvanized steel plate with PEF heat insulation
(3) Vandal proof design with 3 pointing locking system.
(4) Access method: front door.
(5) Cooling by air conditioner.
(6) The perfect earthing system protect it from thunder.
(7) IP Level: IP55
(8) Waterproof, anti-corrosion, anti sand and anti ultraviolet, ensure cabinet can work longer in a harsh outdoor environment.

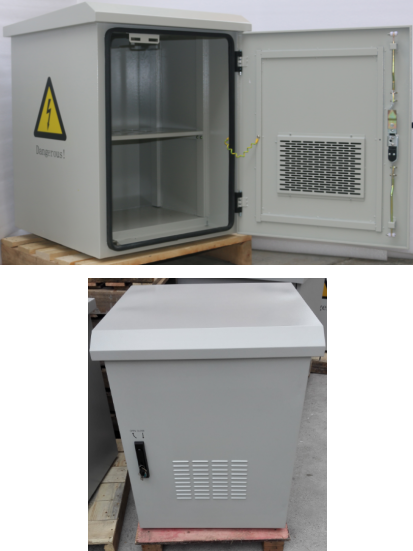

6. Cabinet show
7. Packing and Shipping
Cabinet package use free fumigation plywood which is suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.
