Pharmaceutical Centrifuge Food Centrifuge Separator Machine

Pharmaceutical Centrifuge Food Centrifuge Separator Machine

Description of Food and Pharmaceutical Centrifuge

PPTDS centrifuge is a kind of flat-plate clearance operation filtration equipment. Materials are fed into the drum the feeding tube on sealed enclosure, under the centrifugal force field, the liquid phase discharged through the filter media machine while solid-phase materials are trapped in the drum, and then opened the lid to discharge from the top after the machine stops.

The case, including lid can be manually or electrically turned over 90°degree, thereby exposing the entire drum part. It's easy to unload, clean and replace filter media and do other operations. Stainless steel parts of the machine are all polished, and there is no blind angle therefore it's easy to clean and effectively prevent accumulation of residue.

In addition, since centrifuge drum is mounted directly on the motor shaft without clutch, V-belt, mechanical brake components, especially applicable to inflammable, explosive, poisonous occasions.

Technical parameters of Industrial Food Centrifuge

Application of Food and Pharmaceutical Centrifuge

Widely used in pharmacy, light industry, food and chemical sectors, including the fine-grained solid phase suspension separation and dehydration. Such as food additives, chemical seasonings, sodium glutamate, pesticides, antibiotics, pharmaceutical intermediates, vitamins, Chinese medicine, activated carbon, dyes intermediates, pigments and so on.

Structure Choice of Pharmaceutical Centrifuge

Structure Choice
1.Turning over shell adopts artificial shake reducer to turn over or driven by hydraulic pressure oil cylinder
2.Shock absorber is made of stainless steel
3.Sinter plate importer are adopted by filter media
4.It is equipped with ClP device
5.Small shell is designed on the top of the shell cover

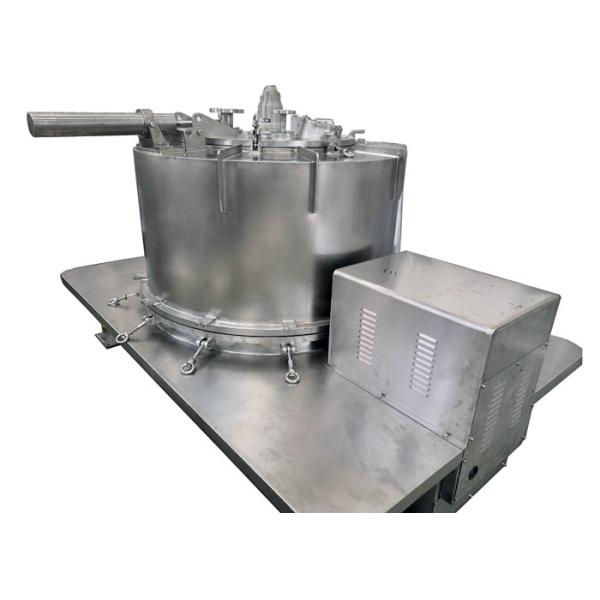

Pictures of Basket Centrifuge

After sales

*12 months guarantee period from machine arriving date.
*Abundant spare parts in stock are availble to provide.
*Our technicians could be dispatched for overseas service.
*7*24 hours technical consultation.
*Your workers could get trained both in our factory and yours.
*Routine tracing till the machine work properly will be done timely.
*We will remind you to do the normal maintenance.
*Your suggestions or any comments & reflection would be treated in priority.
*Marketing team will visit you during our visit to your country if you require.

Basic Information

Zhangjiagang City Peony Machinery Co., Ltd., founded as a special producing enterprise of separating equipment in 2008, is the well-known manufacturer and service provider of separation and filtration in China. Peony dedicated to solving the solid-liquid, liquid-liquid separation problems for clients all over the world and providing separating and filtering mechanical products with convenient operation, high efficiency, reliable quality, and excellent service worldwide. Being a group corporation, Peony has 3 producing bases in China - Zhangjiagang, Nanjing, and Hangzhou city.

Products

As the professional supplier of separating and filtering equipment, we produce basket centrifuges, decanters, and disc separators starch product line, and sell the auxiliary equipment such as clarify equipment, filters, pumps, etc. These 25 series of more than 150 products are self-development of Peony and have attained national patent. Those products and relevant auxiliary equipment are widely used in chemical, petroleum, pharmacy, mining, food, beverage industry, and environmental protection.

We own various kinds of inspection and testing facilities with a value over USD10million, now,16 testing tables,6920 gear testing center, X-ray detecting machine, high-speed dynamic balancing machine, ultrasonic flaw detection machines, etc, we are equipped with complete testing, inspection, analysis control system, advanced testing machines and simulative working condition test table and automatic control testing system, which guarantees our new product research, processing validation, and quality.

We have strongly equipped the robust and precise processing machines from Germany, Italy, England, and our domestic famous brand, here, I'd like to list several of them for your reference.
200 Numerical Control Boring and Milling Machine TK6920
160 Numerical Control Boring and Milling Machine TK6916
Italian PAMA Numerical Control Boring and Milling Machine
80T CNC Lathe
40 T CNC Lathe
2.5m Merry Go Round Machine C525E
Z100 Radial Drill
Numerical Controlled Vertical Milling Machine
Underwater Plasma Cutting Center
CNC Machining Center


We harvested great achievement these years, and turnover reaches to 380million RMB in
the year 2013, and we expect to carry out 500million RMB in 2015.

Welcome all who are engaged in the separation and filtration to work with us, and we are also looking for qualified world wide agents to provide better service and deep marketing.

Worldwide Network

Our products have spread all over the world and are applied over 35 countries and regions, for example, America, Germany, Italy, Sweden, Canada, Singapore, Australia, Brazil, Russia, India, Middle East, and Southeast Asia, etc. To provide flexible and qualified technical service to resolve any maintenance issue in the shortest time possible, now we have established agents in many countries such as Brazil, Colombia, Latin America, Bangladesh, Southeast Asia, etc.
