Corrugated Steel Armoured Fiber Optic Cable GYTS Multi Loose Tube

Description:

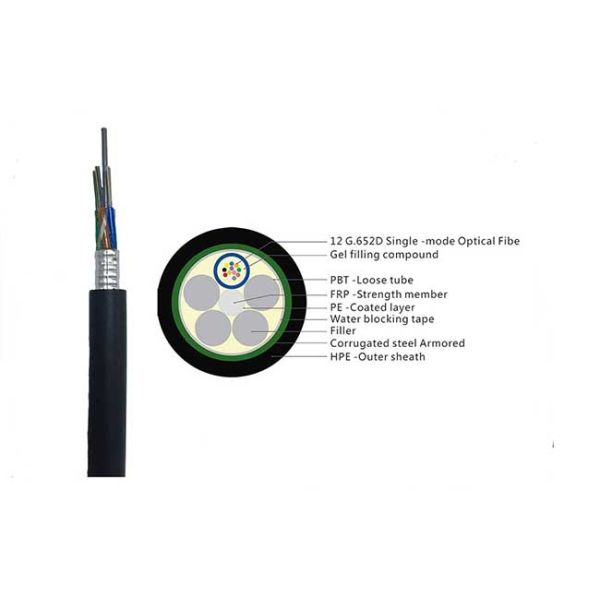

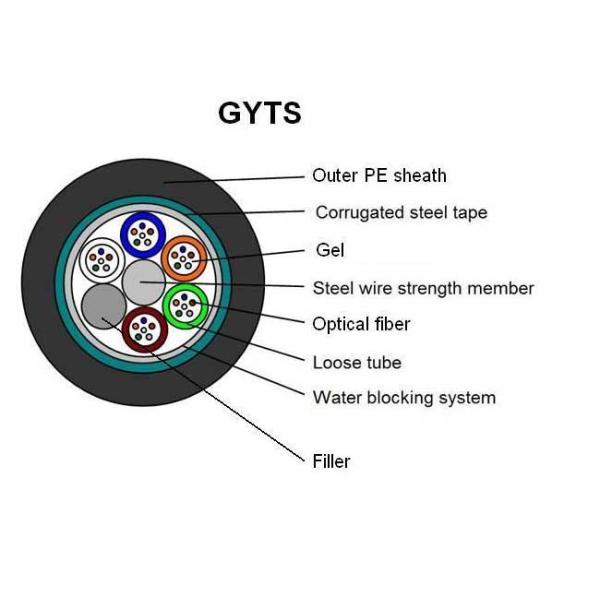

The type of this fiber with single-mode or multimode with a loose tube which is made of high modulus plastic. There is used a water-resistant filling compound for filling. The center used a steel wire locates as a metallic strength member. For some cable, a steel wire sometimes sheathed with polyethylene. The tubes ( and filers ) are stranded around the strength member into a compact and circular cable core. Double sides chromium for PSP with PE as sheath. By single or double wire for installation, also with PE for outer sheath.

Features

1. Good mechanical and temperature performance.
2. Heigh strength loose tube that is hydrolysis resistand
3. Specially tube filling compound ensure a critical protection of fiber
4. Specially designed compact structure is good at preventing loose tubes from shrinking
5. PE sheath protects cable from ultraviolet radiation
6. Steel wire used as the central strength member
7.100% cable filling core filling
8. Loose tubes filling compound
9. APL moisture barrier

Fiber Type		G.652	G.655	50/125^m	62.5/125^m
Attenuation (+20X)	850 nm			<3.0 dB/km	<3.3 dB/km
	1300 nm			<1.0 dB/km	<1.0 dB/km
	1310 nm	<0.36 dB/km	<0.40 dB/km
	1550 nm	<0.22 dB/km	<0.23 dB/km
Bandwidth	850 nm			>500 MHz-km	>200 Mhz-km
	1300 nm			>500 MHz-km	>500 Mhz-km
Numerical Aperture				0.200±0.015 NA	0.275±0.015 NA
Cable Cut-off Wavelength cc		<1260 nm	<1450 nm

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fiber Per Tube	Max No. of (Tubes+fillers)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
					Short Term	Long Term	Short Term	Long Term
2~30	9.7	96	6	5	1500	600	1800	800
32~48	10.7	111	8	6	1500	600	1800	800
50~72	11.6	136	12	8	2000	600	1800	800
74~96	13.0	166	12	10	2000	600	1800	800
98~144	15.1	228	12	12	2500	600	1800	800

FURONG fiber optic co.,ltd is a professional large-scale manufacturer of fiber optic products,specialized in fiber optic cable, patch cord, adapter and connector. We are one of the most professional manufacturers and exporters of Optical Fiber Cables and components in China.  Our team have many years of experience in the Fiber Optic industry. We offer one-stop service from production, customs document to delivery. Clients in the US, France, the UK and Brazil are benefiting from our products and services.

We take the lead in getting the ISO9001 quality management system and adopting ERP system management in the fiber optic field.Now FURONG has been able to win dominance in both domestic and international market through a strong technical & QC team and more than 100 employees;

Every Fiber Optic item we manufactured is 100% test before shipping and also support Life Time Warranty.

Through our quality assurance program we give you outstanding quality of all the fiber product provided. Quality has always made us stand out and it is essential to the company success. As the professional manufacturer, we can assure that all our products are at competitive price and can meet your expectation.

We strive to give excellent service,leading products with international quality  and most reasonable price

to all  our clients.  Hope to cooperate  with you.

Our Main Products With Life Time Warranty:

• Fiber Optic Outdoor

GYTS, GYXTW, GYTY, GYFTY, GYTC8S, GYXTY, GYXTW53, MGXTV, GYXTA, GYTA, GYTZS, GYTA53, GYTC8A, MGTSV, GYFTZY, GYTS33, ADSS ect

• Indoor Cables

GJFV, GJFJHV, GJFJV, FTTH, TIGHT BUFFERED ect.

• Fiber Opitc Patch Cords / jumper cables
• Fiber Optic Connectors / Adapters / Attenuators
• Other equipment or accessories for networking and telecommunications.

Our products are suitable for ： mobile communications companies, telecommunications companies, radio and television, railway, highway, military, electric power, banking, taxation, border, coal mines, schools…

Application Scenario:
