| Brand Name: | SKF |
| Model Number: | 22213 E |
| MOQ: | 1 |
| Price: | USD 0.5-10 PCS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 PCS/MON |
| Delivery Time: | 3-15 DAYS |
| Packaging Details: | Single Box , Industrial Packing |

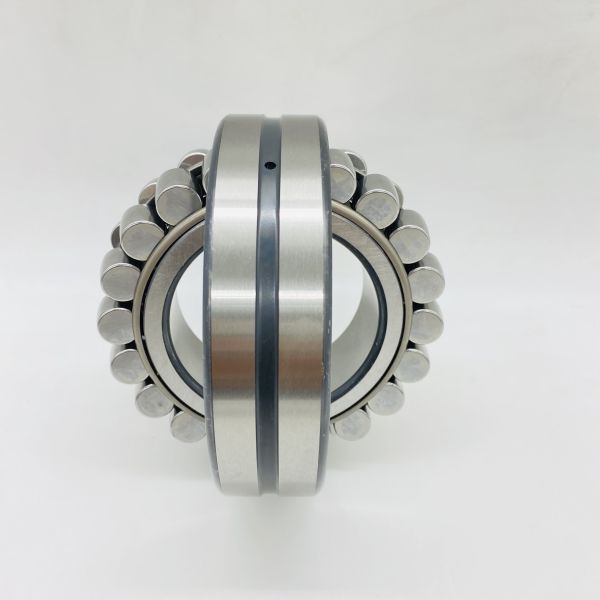

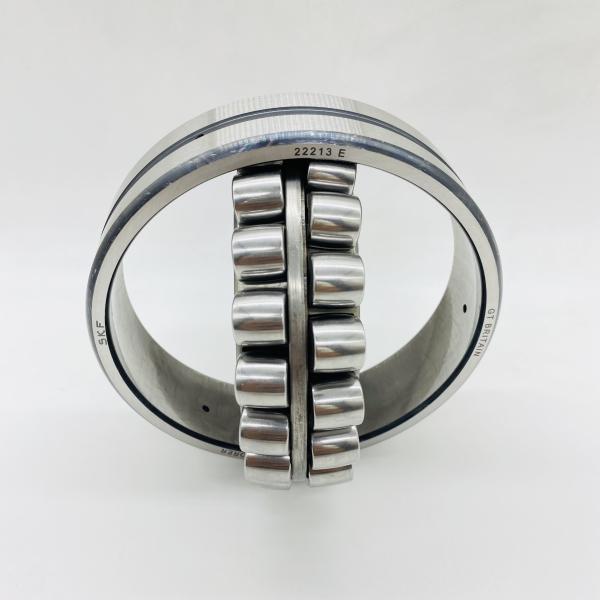

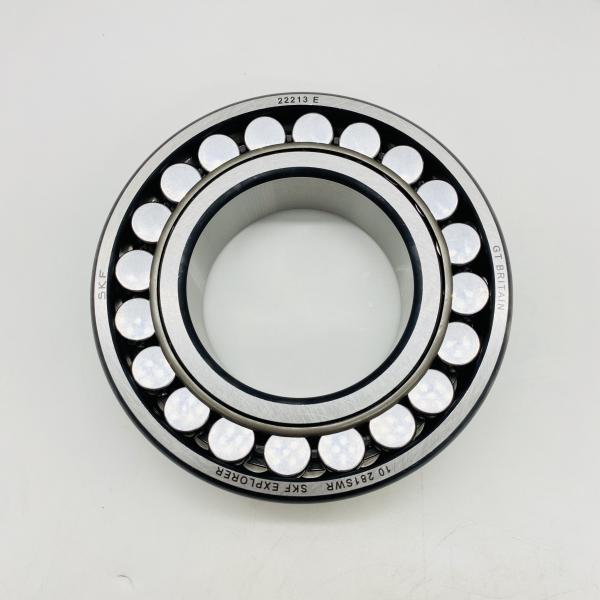

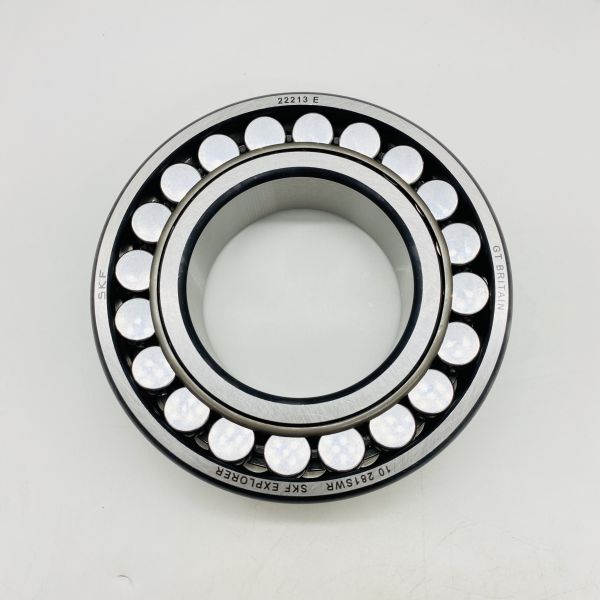

| Bearing Type: | Spherical Roller Bearing |
| Bearing Model: | 22213 E |
| Material: | Steel Cage |
| Type: | skf bearing price list |
| Company Info. |
| JFZ BEARING CO.,LTD |
| View Contact Details |
| Product List |
Bearing Type : Spherical Roller Bearing | Brand :SKF |
Bore Type : Cylindrical | Outer Ring Type : Not Split |
Static Load Capacity : 48540 lbf | Scope application : Industria and Construction Machinery |
Inner Packing : Carton/wooden box, packaging with a woven belt | Outer Packing : Carton/wooden box |
Stock : Great Supplying Ability | Supply a sample : Yes |
Bearing Specification
| d | 65 mm | Bore diameter |
|---|---|---|
| D | 120 mm | Outside diameter |
| B | 31 mm | Width |
| d2 | ≈ 80.1 mm | Shoulder diameter inner ring |
| D1 | ≈ 106 mm | Shoulder/recess diameter outer ring |
| b | 6 mm | Width annular lubrication groove at outer ring |
| K | 3 mm | Diameter lubrication hole (outer ring) |
| r1,2 | min. 1.5 mm | Chamfer dimension outer ring |
| da | min. 74 mm | Abutment diameter shaft |
|---|---|---|
| Da | max. 111 mm | Abutment diameter housing |
| ra | max. 1.5 mm | Fillet radius |
| C | 198 kN | Basic dynamic load rating |
|---|---|---|
| C0 | 216 kN | Basic static load rating |
| Pu | 24 kN | Fatigue load limit |
5 000 r/min | Reference speed | |
7 000 r/min | Limiting speed |
Recommended Model
GE40ES-2RS,GE45ES-2RS,GE50ES-2RS,GE60ES-2RS,GE70ES-2RS,GE80ES-2RS,GE90ES-2RS,GE100ES-2RS,GE110ES-2RS,GE120ES-2RS,GE140ES-2RS,GE160ES-2RS,XB-3,XB-4,XB-5
Packing , Payment , Delievry and Stock
| Packaging | |
| 1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet | |
| 2)Industrial Bearings packaging | a)plastic tube + carton + pallet |
| b). plastic bag +kraft paper + carton + pallet | |
| 3)According to the requirement of customers' | |
| Payment | |
| 1) T/T:30% deposit, 70% should be paid before shipment. | |
| 2) L/C at sight. (high bank charge, not suggest, but acceptable ) | |
| 3) 100% Western Union in advance. (especially for air shipment or small amount) | |
| Delivery | |
| 1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient ) | |
| 2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive ) | |
| 3) More than 200 KGS, we will send by sea. ( Cheapest, but long time ) | |
| Stock | |
| 1)Availability and supply capacity on a certain basis | |
|
