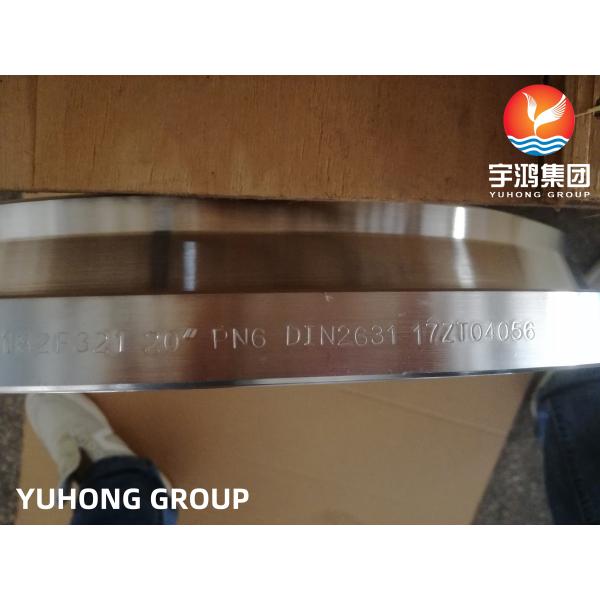

ASTM A182 F321 Stainless Steel Flange WNRF

ASTM A182 F321 Stainless Steel Flange WNRF

SPECIFICATION:

A tubesheet is usually made from a round flat piece of plate, sheet with holes drilled to accept the tubes or pipes in a accurate location and pattern relative to one another.The tube sheets are used to support and isolate tubes in heat exchangers and boilers or to support filter elements. Tubes are attached to the tube sheet by hydraulic pressure or by roller expansion.

Size:1/2″-160″,DN15-DN4000mm.

Standard: ANSI/ASME B16.5, ANSI/ASME B16.47, BS4504, BS3293, EN 1092, DIN2631,DIN2632,DIN2633, DIN 2634, DIN2635, DIN2636, DIN2637, DIN2638, JIS B2220, SABS / SANS 1123 , GOST / ГОСТ 12821-80 Flange, MSS SP-44 FLANGE, API 6A, 6B, 6BX weld neck FLANGE, ISO 7005 Weld neck flange. NFE 29203 Weld neck flange, KS B1503 , UNI 2280-67 ,UNI 2281-67 ,UNI 2282-67 ,UNI 2283-67 , UNI 2284-67, HG20595, AS2129.

FaceAmerica Series: Flat face(FF),Raised face(RF),Tongue(T),Groove(G),Female(F),Male(M),Ring type joints face(RJ/RTJ)
Europe Series: Type A(Flat Face),Type B(Raised Face),Type C(Tongue),Type D(Groove),Type E(Spigot),Type F(Recess),Type G(O-Ring Spigot),Type H(O-Ring Groove)

PressureAmerica Series: Class 150 ,Class 300, Class 600, Class 900A ,Class 1500,Class 2500.
Europe Series:PN2.5,PN6,PN10,PN16,PN25,PN40,PN63,PN100,PN160,PN250,PN320,PN400.
