95pcs/min Paste Cream Dia 50mm Tube Filling Machine

95pcs/min Paste Cream Dia 50mm Tube Filling Machine

95pcs/min Paste Cream Dia 50mm Tube Filling Machine
95pcs/min Paste Cream Dia 50mm Tube Filling Machine
Categories Tube Filling Machine
Brand Name: LEADTOP
Model Number: LTRG-60A
Certification: CE certification
Place of Origin: China
MOQ: 1 set
Price: discuss personally
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 25 days/month
Delivery Time: 25days
Packaging Details: wooden box
Model: LTRG-60A
Tube Material: Aluminum Tube
Tube Diameter: Dia.5mm-50mm
Tube Length: 50-240mm (customizable)
Filling Volume: 5-250ml/piece (Adjustable)
Filling Accuracy: ≤±1%
Contact Now
Company Info.
LeadTop Pharmaceutical Machinery Co., LTD
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

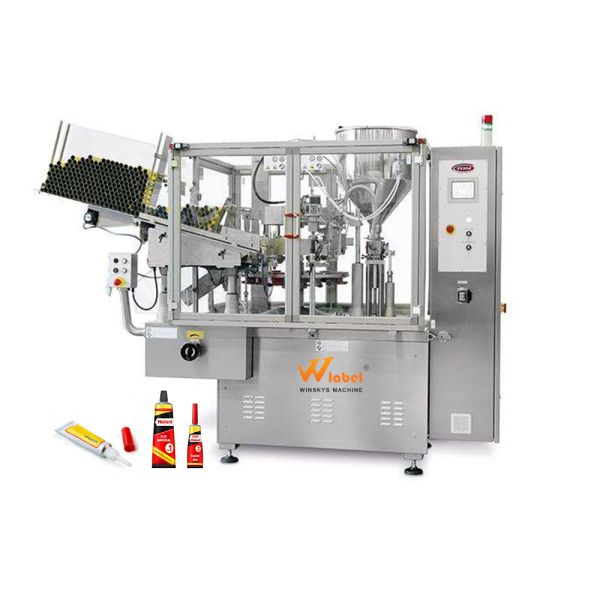

95pcs/min Paste Cream Dia 50mm Tube Filling Machine

Automatic Tube Filling and Sealing Machine is suitable for filling all kinds of pasty and viscous fluid and the materials alike, into plastic and laminated tubes and then internally heating tubes, sealing and printing lot number or production date. It is used in the industries of pharmaceutics, foodstuffs, cosmetic and daily chemicals.
With touch screen and PLC control system employed, convenient, visualized and reliable non-touch operation of the machine is effected of compact design and auto tube feed. Driving part is fully-closed. Full steps of tube feeding, marking identification, filling, hot air sealing, code printing, trimming and ejecting out the tube are conducted by automatic system. Tube feeding is conducted pneumatically, accurately and reliably.
Features

1,Automatic control system by PLC and touch screen. The electrics brand is customized.
2,intelligent temp control and cooling system makes sealing more reliable
3,With easy and quick adjustment, multiple kinds of tubes can be filled on one machine
4,Original Swiss LEISTER heater is adopted to get more steady and reliable sealing
5,The part contacting materials is made of 316L stainless steel, clean, sanitary and conforming to GMP standard
6,With safety device, the machine is shut down when the door is opened and filling carried out only with tubes fed.
7,The production capacity can be realized and control automatically, normal speed is 40~60pcs/min
8,Human-machine interface with direct display and control.
9,Automatic detection of tube direction inversion., SICK inversion detection photo sensor can accurately detect the inverted tube.
10,No tube no fill, preventing a waste of the materials
11,The machine can stop automatically when the production is completed by the setting quantity
12,All parts of filling are assembled by quick couplers, which makes it convenient to clean and sterilization.
13,The machine is stepless frequency conversion timing system. The filling speed can be set easily
14. The air blow system is installed at the filling nozzle, cutting the material and no drop
15. The mechanical parts are of famous brand with lubricants maintenance, no noise or pollution.
16. High quality cam is applied for indexing
17.The machine is designed to connect the automatic material feeding system with the emulsifying machine or mixing machine conveniently Overload Protection Provided
18. Overload Protection Provided
19,High-viscous material will have automatic temperature control and blending system.(optional)
20,Nitrogen Injection Function (optional)
21,Material feeding pump. (optional)
22,Water cooler(chiller). (optional)

Main technical parameters
Model
LTRG-100
Production Speed
70-95 pcs/min
Filling Quantity
3-180 ml
Dosage Precision
≤±1℅
Tube Diameters Sealed
ф12-ф35mm
Power Supply
380V/50Hz 1.5KW
Air Consume
<0.6m3/min
Dimensions(L×W×H)
2450×1200×2100 mm
Weight(kg)
1500kg

Machine samples


Packing Details : Export Standard Wooden Box.
Delivery Details : 30 days after 30% deposite.
We suggest you choose forwarder to save shipping fee.
Please contact us for shipping information.
Please confirm you have ability for import this machines,usually US country needs DEA number.
