| Categories | Carbide Rotary Burr |
|---|---|
| Brand Name: | KTS |
| Model Number: | A/B/C/D/E/F/G/H/J/K/L/M |
| Certification: | ISO9001:2008 |
| Place of Origin: | Sichuan, China |
| MOQ: | 100 Pieces |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 250000 Piece/Pieces per Month |
| Delivery Time: | 7-30 Days |
| Packaging Details: | Plastic Case |
| Material: | Tungsten Carbide |
| Welding: | Silver Welding |
| Solid/Brazed: | Brazed |
| Transport: | Sea/Air/Express |
| Size: | Standard Size |
| Shape: | Kinds of Shapes |
| Set: | 8pcs Case/Set |
| Certificate: | ISO9001：2008 |
| Company Info. |
| JOINT CARBIDE CO., LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Description

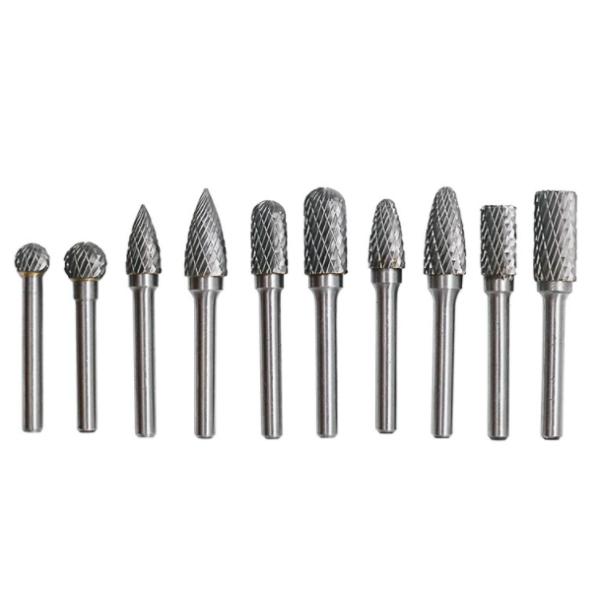

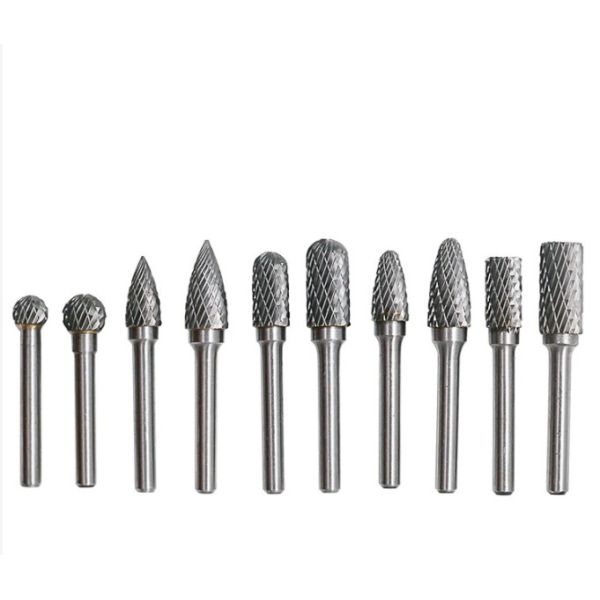

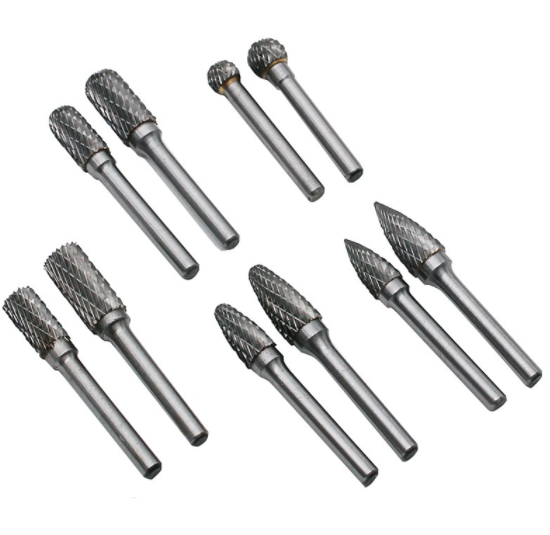

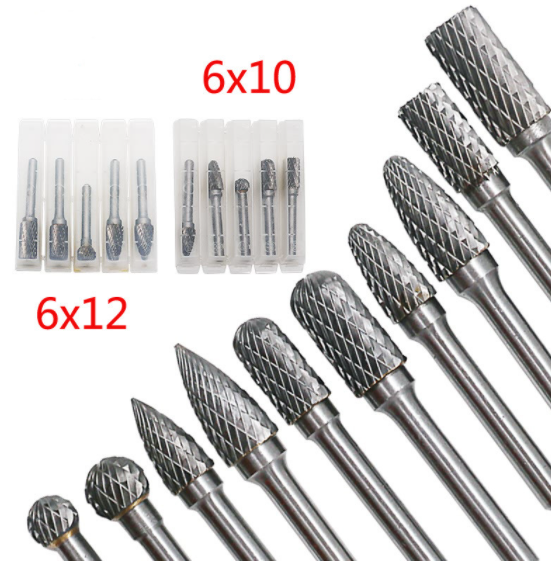

The Rapid Abrasives Cylindrical Double Cut Carbide Burr is built to
grind flat surfaces on metal and non-ferrous metal applications.
Build Excellent for light to medium material removal.
This solid carbide burr is double cut with a chisel tooth cutting pattern that produces small chips instead of long, sharp slivers which help to finish the metal surfaces faster, eliminates loading and minimizes chatter to provide a smooth cutting experience.
Operation
Moving the burr over the surface gradually will help remove only the material wanted and will help prevent the burr from making divots and unsightly marks.
To extend the life of the burr, only apply enough pressure to let the burr do the work. This eliminates unnecessary wear to the burr.
Technical date
| S.N. | MATERIAL |
| 1a | Steel |
| 1b | Hard steels |
| 2 | Stainless steel |
| 3 | Cast iron |
| 4 | Titanium |
| 5 | Nickel |
| 6 | Copper/Copper alloys |
| 7 | Aluminum |
| 8 | Plastics |
| 9 | Cement |
Guide to running speeds
mat nr. MAX RPM | 3mm/0.123" 90,000 | 6mm/0.250" 50,000 | 10mm/0.375" 40,000 | 12mm/0.500" 35,000 | 16mm/0.625' 25,000 |
| 1a | 60,000-80,000 | 35,000-45,000 | 22,500-35,000 | 20,000-30,000 | 15,000-20,000 |
| 1b | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 2 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 3 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 9,000-20,000 |
| 4 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 5 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 6 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 3,000-20,000 |
| 7 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
| 8 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
| 9 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
Application:
It can be processed cast iron, cast steel, carbon steel, alloy
steel, stainless steel, copper, aluminum and other metals, and
marble, jade, bone and other non-metallic. Processing hardness up
to HRA85.
Advantage:
1. 10 years professional experience.
2. 100% new material.
3. Be more durable.
4. OEM & ODM Service.
5. All payment terms supported.
6. Fast delivery time & Convenient Transportation
Packing
About us
Zigong (Chengdu) Cemented Carbide Co., Ltd. is a subsidiary of Zigong Cemented Carbide Co., Ltd., which specializes in the production of cemented carbide rotating tools and cemented carbide materials. We have two branches, one is located in Chengdu City, Sichuan Province, and the other is located in Zigong City, Sichuan Province.
Founded in 2007 in Zigong City, Sichuan Province. In China, we are an exclusive factory with production equipment from raw materials to finished tools. Including inclined wet grinding, pressing, low pressure sintering, five-axis CNC, electronic tool surface scanner, hardness tester and TRS. The main products include cemented carbide end mills / cemented carbide end mill blanks / cemented carbide tool holders and cemented carbide nozzles. We have exported to North America, Europe, Asia, etc. We helped make world-class cheap products.
|
