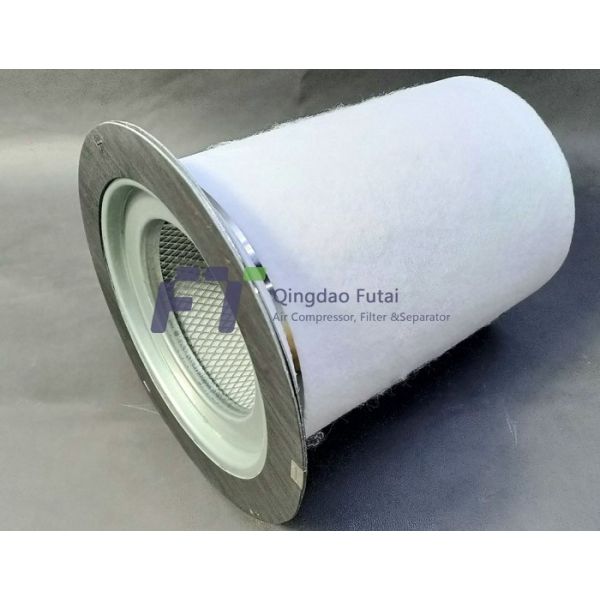

Fiberglass Screw Compressor Air Oil Separator 36762550

Product description:

The oil separator is a key part of the rotary air compressor, and its performance will directly affect the compressor's effective power, oil consumption, and stable, clean, and dry output airflow. Ingersoll Rand's high-quality oil separator, when installed and used correctly, not only has the high quality of compressed air, but also guarantees a considerable service life.

Product features:

Using anti-corrosion and high-efficiency fine fiber agglomerated material as the main body of the filter, the filter bed of the filter element of this system is composed of a pre-filter layer, a fine fiber layer, a support layer, a filter layer and a gravity sedimentation layer to make the compressor output solid particles above 3μm in the air It can be completely filtered out, and the tiny oil-water vapor dissolved matter of about 0.01-1μm is condensed into larger oil droplets when passing through the filter element, which accumulates at the bottom of the filter element, and then returns to the lubrication system by siphoning through the oil return pipe in the recess at the bottom of the filter element So that the compressor discharges relatively pure, oil-free compressed air. We are an enterprise specializing in the design and manufacture of oil and gas separation components, with professional processing and testing equipment, and testing methods that meet the ISO8573 standard.

Process flow:

Compressed air passes through the filter bed of the oil-air separator, which combines the pre-filter layer, ultra-fine fiber layer, support layer, filter layer and gravity sedimentation layer, so that all solid particles above 3 μm in the compressor output air can be filtered out, and the tiny about The 0.01-1μm oil-water-gas dissolved body is condensed into larger oil droplets when passing through the filter element, which accumulates at the bottom of the filter element, and then returns to the lubrication system by siphoning through the oil return pipe in the recess at the bottom of the filter element

Cross Reference:

If you don't find the part number you want in my online shop, please do not hesitate to contact us, Maybe I can check it for you. At the same time, we are a factory and can also customize unconventional filter elements for you at any time.

Qingdao Futai, Air Compressor Filter Manufacturer in China.
