| Categories | Fiber Optic Pigtail |
|---|---|
| Brand Name: | HTD / OEM |
| Model Number: | LC UPC |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 100 Pieces |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pieces / week |
| Delivery Time: | 5 - 10 Business Days |
| Packaging Details: | Each piece of pigtail can be packaged in a 20*20 square plastic bag. |
| Connector: | LC |
| Polish Type: | UPC |
| Insertion Loss: | ≤ 0.3 dB |
| Return Loss: | ≥ 50 dB |
| Length: | 1.5 Meter / Customized |
| Fiber: | OM3 (150) / OM3 (300) |
| Cable OD: | 0.9 mm / 2.0 mm / 3.0 mm |
| Wavelength: | 850 nm / 1300 nm |
| Color: | Aqua / Customized |
| Jacket: | LSZH / PVC |

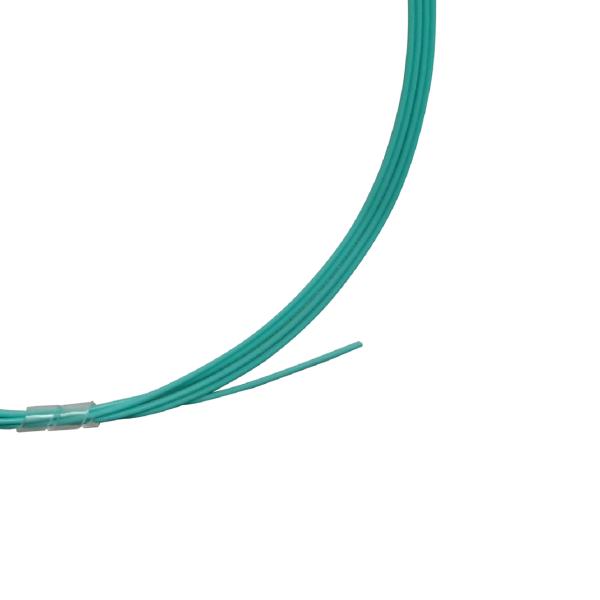

LC UPC OM3 Fiber Optic Pigtail PVC LSZH Cable Sheath 0.9 / 2.0 / 3.0
Fiber optic pigtails make fast communication possible between devices in the field. Fiber optic pigtails are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet customers' most stringent mechanical and performance specifications.
Product Parameter
| Parameter | Unit | Data |
| Wavelength | nm | 850 1500 |
| Insertion Loss | dB | ≤ 0.3 |
| Return Loss | dB | ≥ 50 |
3D Interference Test Passing Rate | % | 90 |
| Repeatability | dB | ≤ 0.1 |
| Plug and Pull Durability | Times | > 1000 |
| Operating Temperature | °C | -10 ~ +75 |
| Storage Temperature | °C | -40 ~ +85 |
Product Detail
FAQ
Q1: How can I get a quotation? How long does it take?
A1: You can leave your message and email in below box or directly email us (sales01@sz-htd.com). We will send you an exact quotation within one business day.
Q2: How long will the goods be delivered after placing order?
A2: Depending on product and order’s quantity, delivery time would be different. LC pigtail's delivery time is around 5 to 10 days.
Q3: Can you supply OEM products under our brand?
A3: Yes. As a large scale original manufacturer, HTD accepts OEM service. You just need to send us your detailed requirements.
Q4: Can I request a sample? Is it free?
A4: Yes, HTD provides sample service for every product. If we have raw material of the product you want in stock, we can provide you free sample. Please check with us beforehand to see whether you can get a free sample.
|
