UL3122 300V 26AWG Stranded Silicone Insulated Wire FT2 flame Test

UL3122 300V 26AWG Stranded Silicone Insulated Wire FT2 flame Test

UL3122 300V 26AWG Stranded Silicone Insulated Wire FT2 flame Test
UL3122 300V 26AWG Stranded Silicone Insulated Wire FT2 flame Test
Categories Flexible Insulated Wire
Brand Name: Mysun
Model Number: UL3122
Certification: UL
Place of Origin: China
MOQ: 1000M
Price: USD0.1-2/m
Payment Terms: T/T
Supply Ability: 1 million per day
Delivery Time: 5-10 workdays
Packaging Details: 305m/roll,610m/roll
Conductor type: Stranded
Insulation material: Silicone Rubber extruded
Conductor material: Tinned Copper
Type: Insulated
Color: Red,Black,blue,yellow,green
Rated voltage: 300V
Cross section: 1.00mm2AWG
Core: Single
Packing: 100m/Roll,wooden drum,1000ft /roll,305m per roll
Temp reistance: 200 Degree
Contact Now
Company Info.
Shenzhen Mysun Insulation Materials Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

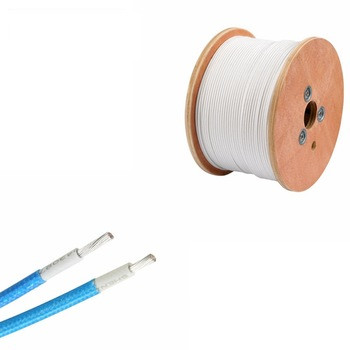

UL3122 300V 26AWG Stranded Silicone Insulated Wire FT2 flame Test

Fiberglass braided cable UL3122 high temperature resistance silicone coated wire

UL3122 specification:

  • Flexibility: silicone rubber insulation with fiberglass braided
  • Maximum conductor resistance: 24.4 ohm/km
  • Resistant to oil, hot and cold, flexing
  • Rated temperature: -50°C to +200°C
  • Rated voltage: 600 V
  • Insulation potential strength: 2000 VAC/min
  • Passes the FT2 flame test
  • Available in 16-26AWG,0.3sqmm-1.25sqmm

UL3122 demesion:


ConductorInsulationMax.Cond ResistanceUnit length
Size
(AWG)		Construction
(No./mm)		Diameter
(mm)		Nominal Thickness
(mm)		Diameter
(mm)		(Ω/KM)(M)(Ft)
267/0.160.480.601.68143305/1000
247/0.200.611.8189.3
227/0.2540.771.9756.4
207/0.310.942.1435.2
187/0.391.192.3922.2
167/0.491.492.6914
241/0.500.500.651.8089.3305/1000
221/0.650.651.9556.4
201/0.810.812.1135.2
181/1.021.022.3222.2
161/1.201.202.5014
2411/0.160.610.601.8189.3305/1000
2217/0.160.761.9656.4
2026/0.160.942.1435.2
1841/0.161.182.3822.2
1626/0.2541.492.6914
0.30mm²12/0.180.710.601.9159.78305/1000
0.50mm²20/0.180.922.1240.1
0.75mm²30/0.181.132.3326.7
1.00mm²40/0.181.312.5120
1.25mm²50/0.181.462.6614.35


Service:

Shipment:
1. by express
2. by sea
Payment terms:
LC, TT, Western Union, Money Gram and PayPal
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
FQA

1. Are you a manufacturer?

A:Yes,Our factory is located in Dongguan City more than 20,000 sqmm;

and have 20 years leading experience in manufacturing wires.


2. What are your main products?

A:Our main products are SR wire,FEP wires ,xlpe pvc wires and Mica wires Wire Harnesses.


3.What certification did your products pass?

A: We attained UL; cUL, CSA;VDE; CCC;IATF 16949;ISO 9001;ISO 14001 ROHS,REACH certifications
