OEM Vacuum Cleaner Electric Motor Spare Parts Dc Commutator

24 DC Motor Commutator | Vacuum Cleaner Motor Commutator Collector

This DC Motor Commutator is suitable for Vacuum Cleaner Motor armature. It is mainly used to overturn the direction of current among the external circuit & rotor. The motor commutator comprises a cylinder with numerous metal contact segments lying on the revolving armature of the machine. The brushes or electrical contacts are made with a carbon press material next to the commutator, designing sliding contact by consecutive segments of the commutator while it revolves. The armature windings are allied to the segments of the commutator.

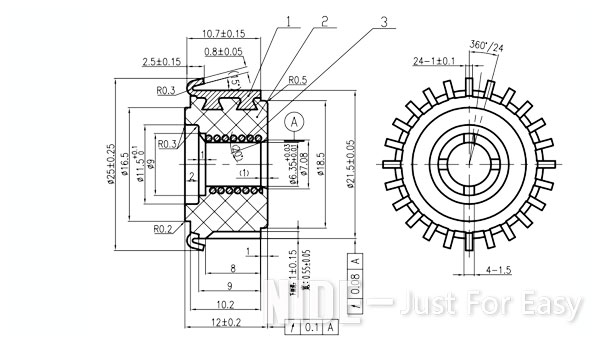

Commutators Details

Commutators Applications

DC (direct current) machines like Vacuum Cleaner Motor, DC generators, mixer motor, grinder motor, angle grinder motor, polishing machine motor, universal motors, etc. In a DC motor, the commutator provides electric current to the windings. By changing the direction of current within the revolving windings every half turn, a torque (steady revolving force) will be produced.

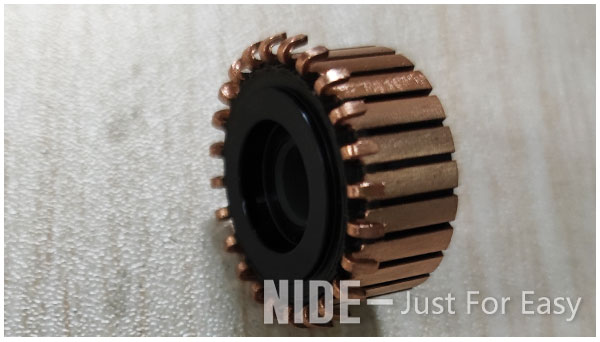

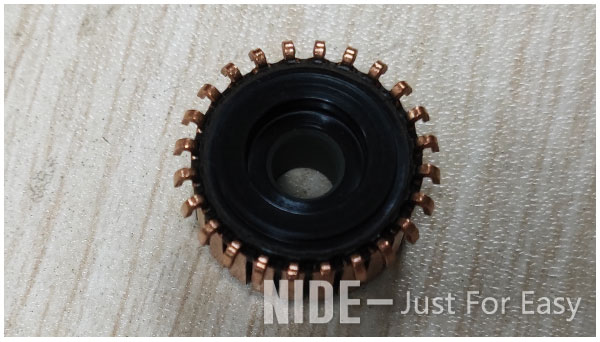

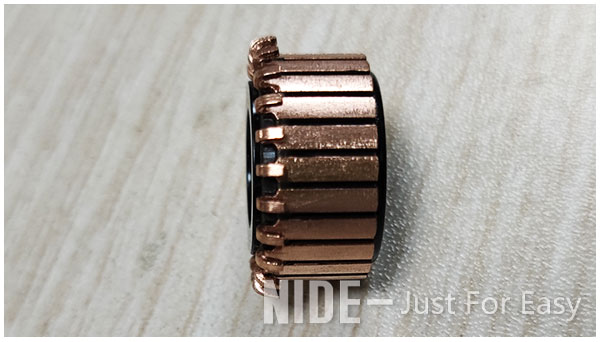

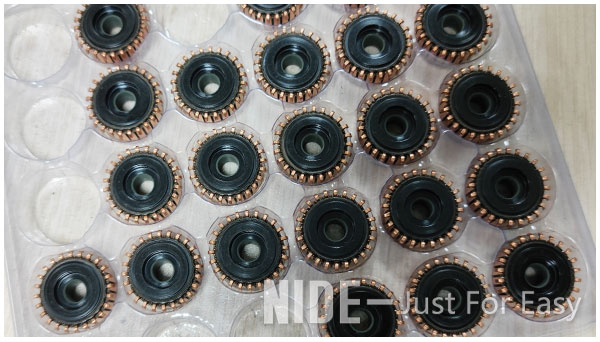

Commutators Picture

Information needed for commutator inquiry:

It will be better if customer could send us detailed drawing including below information.

1. Commutator dimension: OD, ID, total height, and copper height, bar number.

2. Commutator type: hook type, raiser type or planner

3. Copper material: Agcu/ Cu

4. Commutator applications

5. Required quantity

6. Copper bush needed or not

7. Other technical requirement.

If possible, it will better if customer could send us samples.

Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.
