| Categories | MVR Evaporator |
|---|---|
| Brand Name: | HANPU |
| Model Number: | MVR |
| Certification: | CE,ISO9001 |
| Place of Origin: | Jiangsu，China |
| MOQ: | 1 set |
| Price: | 100,000USD~1,000,000USD/SET |
| Payment Terms: | T/T,L/C,D/A,D/P,Western Union |
| Supply Ability: | 1 set/ 90days |
| Delivery Time: | 90 days |
| Packaging Details: | Bulk with strap |
| Company Info. |
| Jiangsu Hanpu Mechanical Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

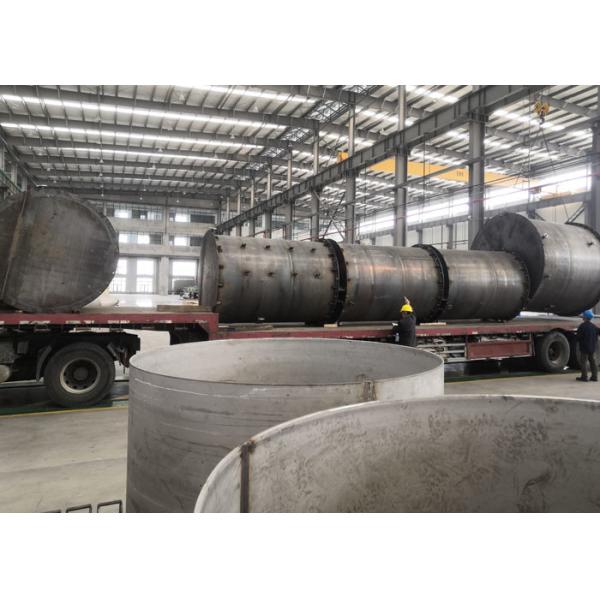

Laser-welded embossed pillow plates combined with MVR (Mechanical Vapor Recompression) create a compact, energy-saving evaporator body with wide channels, strong turbulence, and hygienic surfaces. The design supports gentle vacuum evaporation, low ΔT operation, and continuous 24/7 duty for food, chemical, and environmental applications.
Secondary vapor is mechanically compressed to raise saturation temperature and reused as the heating medium. Uniform film distribution over pillow plates under vacuum maintains high heat-transfer coefficients and protects heat-sensitive products, reducing specific energy consumption.
Laser-welded SS304/SS316L pillow plates and manifolds (duplex/Ti/Hastelloy optional). Orbital-welded headers, sanitary finishes, slope-to-drain piping, and validated CIP documentation available for food-grade compliance.
| Parameter | Typical Range* |
|---|---|
| Operation | Continuous, vacuum duty |
| Electric use (MVR) | ~15–40 kWh per ton of water evaporated (duty/CR dependent) |
| Film ΔT | Low for quality preservation; set via compressor discharge pressure |
| Steam demand | Very low after start-up (backup/ancillary only) |
| Materials | SS304 / SS316L standard; duplex/Ti/Hastelloy optional |
*Performance depends on feed chemistry/viscosity, fouling tendency, compression ratio, and plate geometry.
Embossing increases turbulence and stiffness, improving heat-transfer coefficients and pressure tolerance at low ΔT.
Yes—add plate banks or integrate TVR/MVR hybrid modules to increase capacity and reduce specific energy use.
SS316L is preferred for chlorides/corrosives; SS304 suits benign duties. Duplex/Ti/Hastelloy available per corrosion study.
|
