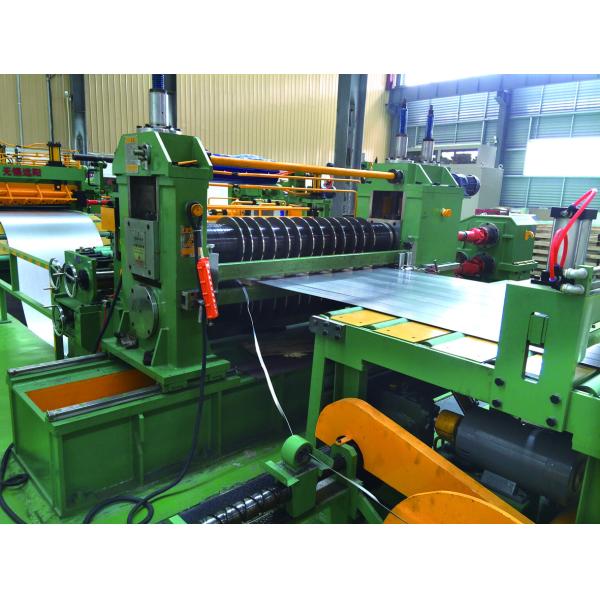

0.6-5mm Steel Strip Slitting Machine Left Right Feeding

1. Description of goods

Steel strip slitting machine for cutting strip MA-(0.6~5)×1500mm,left or right feeding, coil Max weight:25T

2. Main technical configuration
Input coils: HR/CR carbon steel, colored steel, galvanized steel, etc.
Steel Slitting Machine Strip thickness: (0.6-5) mm
Strip width: 500~1500mm
Steel Slitter Inner diameter of coils: Φ508mm, Φ610mm, Φ760mm
Max.outer diameter of coils: Φ2000mm
Max.coil weight: 30000kg
Steel Slitter shaft: Φ250 x 1550mm
Material of disc cutter: 6CrW2Si, HRC55-58.
Steel Slitting Machine Motor: DC 110KW, with Eurotherm 590 DC speed driver.

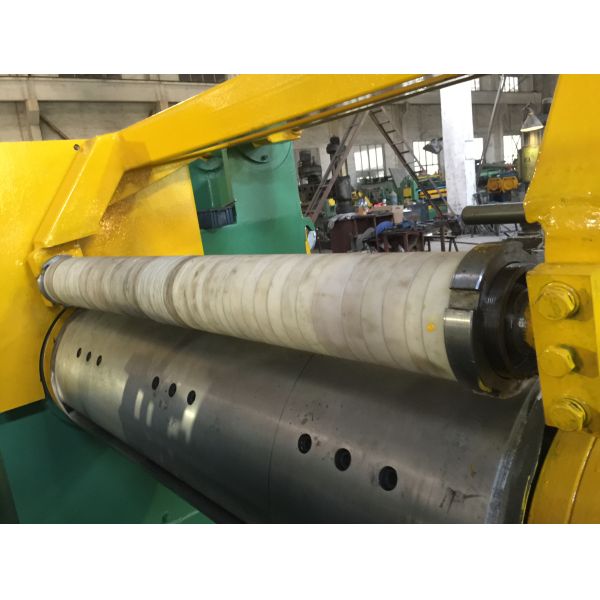

Recoiling spindle: Φ508×1550mm
Recoiling motor: DC 132KW, with Eurotherm 590 DC speed driver.
Steel Slitter speed: (0~80) m/min, adjustable.

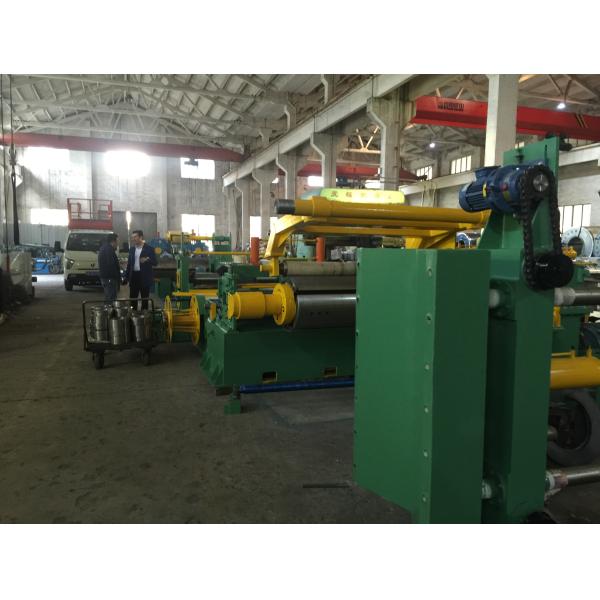

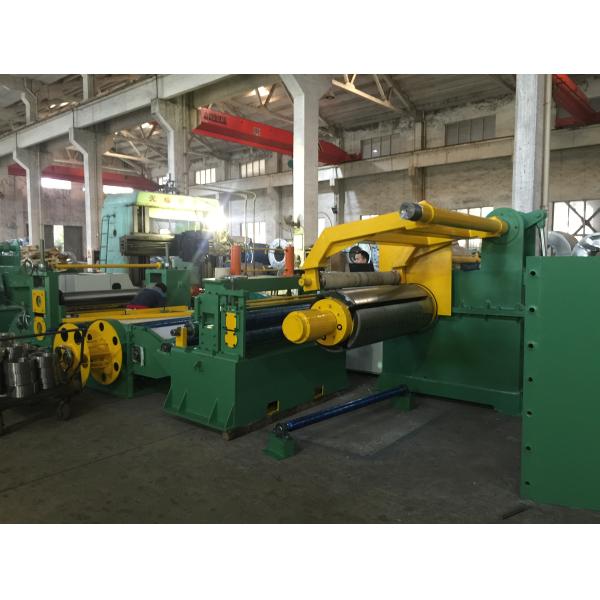

3. Detail information of Steel Slitter:

4. Loading:
Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.

5. Main features:

1. We can make and design all kinds of special machine according to customer's requests.
2. This is a very perfect and durable equipment. We have more than 10 years experiences.
3. This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4. We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
