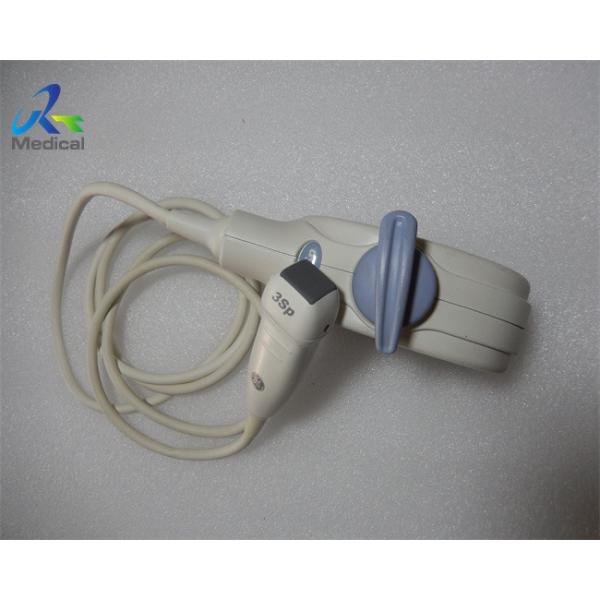

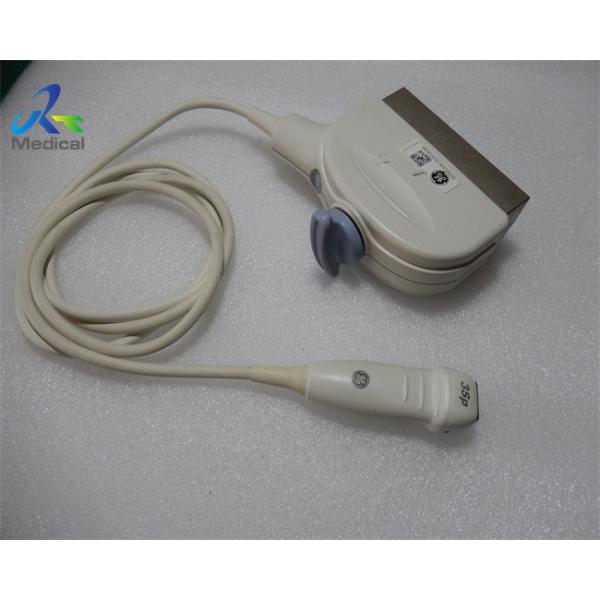

GE 3SP Ultrasound Transducer Probe Cardiac Sector Medical Apparatus

Ultrasound Transducer Probe GE 3SP Cardiac Sector Medical Apparatus

Ultrasound Transducer Probe GE 3SP Cardiac Sector

1. Type:Sector
2. Compatible system:Logiq p
4. Application: cardiac
5. Original, in good working condition
6. With 60 days warranty

Other GE probes we can offer:

Knowledge Point

Mechanical probe

A motor drives a rotating head whose shaft is located at the focal point of the probe surface to rotate in one direction. Two focusing transducers are embedded in the rotating head. When the transducer rotates to face the reflector, it emits ultrasonic pulses. After parabolic launching, a row of parallel linear scanning beams are formed, realizing mechanical scanning. Its advantages are that the sector-shaped mechanical scanning probe has a large field of view for far-area exploration, a small contact area for acoustic coupling with the human body, and the same tangential and lateral resolution. It is suitable for ultrasound examination of heart, small organs, ophthalmology, lumen ducts and abdominal organs.

Annular probe

The principle of using the circular ring array dynamic segmented focusing method in mechanical sector-scan ultrasonic diagnostic equipment is the same as that of linear array dynamic focusing. Applying a proper delay to the electrical signal of each element can achieve focusing at any distance along the central axis, which is similar to the function of an acoustic lens, so it functions as an "electronic focusing lens".

Color-flow imaging

Color-flow imaging is an enhanced form of Doppler ultrasound technology. In a procedure similar to duplex ultrasound, it uses color to highlight the direction of blood flow. Vessels in which blood is flowing are colored red for flow in one direction and blue for flow in the other, with a color scale that reflects the speed of the flow.It can clearly understand the anatomical shape and activity of large blood vessels, and can visually display the direction, speed, range of blood flow, and whether there are blood flow disorders and abnormal pathways. The speed of blood flow determines the reflection frequency, which is represented by amplitude beam in spectral Doppler. The velocity of blood flow is fast, and the amplitude on the spectrum curve is high; the velocity of blood flow is slow, and the amplitude on the spectrum curve is low, so amplitude can accurately calculate the velocity of blood flow. Color Doppler images are displayed with different brilliance.

Rongtao Medical was established in 2013, we have been focusing on providing after-sales service for medical equipment for the last ten years, especially in ultrasound. We have been continuously improving our technical capabilities, breaking through technical problems, innovating service models to extend the lifespan of ultrasound equipment, and reduce the cost of medical equipment.

Rongtao Medical are specialized in providing high-quality, efficient and affordable repair solutions for ultrasound equipment, like GE, Philips, Toshiba, Siemens, Aloka Mindray, Samsung etc. All repaired ultrasound boards and probes are individually tested on real equipment, and all boards are sealed in anti-static packaging before delivery to you.

Rongtao Medical offers free consultation of ultrasound troubleshooting identification and technical support to our customers. We also provide lifelong service for all ultrasound parts and probes that we have been serviced.
