34x34mm UL CE Metal Oxide Varistor 34S162K 1600V High Energy MOV

UL CE Approved High Energy 34S162K Metal Oxide Varistor MYL34S-162B 1600V 34x34mm

I Metal Oxide Varistor Description

Metal Oxide Varistor degsigned to provide surge suppression in all kinds of circuits. If high voltage surge came across circuit, normally it will broken circuit and also nearby components. When engineer request circuit protection for voltage surges , a varistor should be choosed to be as a voltage protection device. When voltage surge exceeding varistor voltage is applied, varistor suppresses the voltage to protect the circuit and following components. It works fast in ns level and cost is economic,this is why it is welcomed to power supplies , LED lights etc.

II Metal Oxide Varistor Size (mm)

III Metal Oxide Varistor Electrical Parameters

Ø 34S Series Metal Oxide Varistor

IV Metal Oxide Varistor Application

• AC mains out door
• Service entrance environment (distribution panels) of buldings
• Industrial heavy motor
• Power Supplies such as used in the oil-drilling,mining, transportation fields, HVAC ,Motor/generator
• Telecom Products
• Automotive Electronics
• SPD

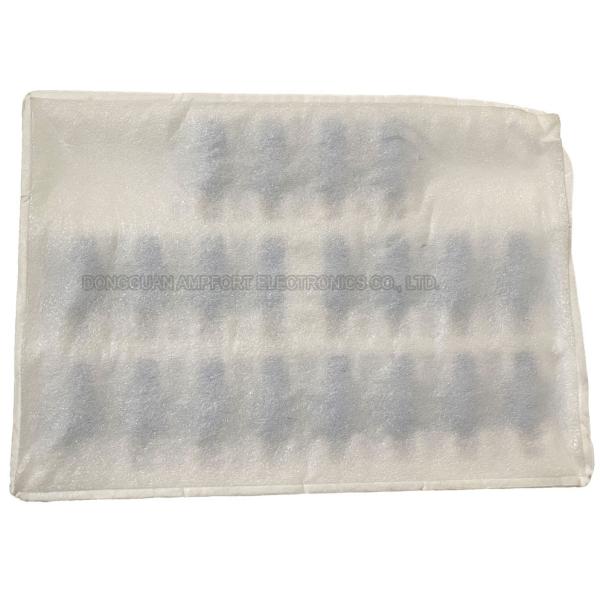

V Metal Oxide Varistor Packaging

Bulk,48pcs per blister,360pcs per carton; unit weight 60gram per pieces

VI Varistor Selection Guide

Step 1. Determine the circuit's operating parameters.

(complete as much of the following information as possible).

1-a. Source and path of the transient
________ Source ________ Path

1-b. Normal operating voltage of protected device
________ (V_AC) , or ________ (V)_RMS DC

1-c. Tolerance of normal operating voltage (1-b)
________ (V) or ________ Unknown

1-d. Max. allowable voltage of protected device
________ (V_AC) or ________ (V)_RMS DC

1-e. Maximum expected surge current and number of hits
(Specify 8x20μs waveform equivalent of surge current)
________ (A) ________ (# of hits)

1-f. Maximum energy applied to device in surge event
________ (Joules) (E=1.4xVxIxT)

1-g. Maximum power applied to device in surge event
________ (W) (P=VxI)

1-h. Maximum allowable varistor capacitance (@1kHz; 0V_DC bias)
(This is the maximum capacitance of the varistor device that will not impair the functionality of the circuit)
________ (pF)

1-i. Required safety standards
(Name of standards required, such as UL, CSA, VDE, etc.)

Step 2. Calculate voltage value.

Step 3. Guidelines for Selecting a Varistor

Step 4. Verify the following system conditions.

VII OVP Overvoltage Protection

Varistor

GDT
TVS
ESD
