500psi NBR CE Stainless Steel Pressure Regulator For Laboratory R61

Categories Stainless Steel Pressure Regulator
Brand Name: AFK
Model Number: R61
Certification: CE
Place of Origin: China
MOQ: 1
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000PC
Delivery Time: 1WEEK
Packaging Details: Expotrt Packing
Customized support: OEM, ODM
Material: 316L
Type: Flowmeter
Media: natural /lpg gas
Applicable gas: Pure standard corrotive Gas
Application: Laborary industry
Screw thread: Requirement Thread
Input pressure: 500 psi
After-sales service provided: Online support
Warranty: 1 Year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

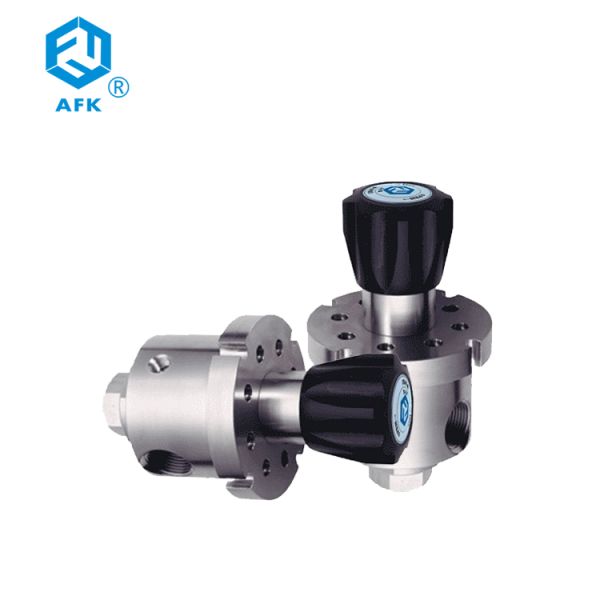

500psi NBR CE Stainless Steel Pressure Regulator For Laboratory R61

R61 Serie stainlees steel pressure reducer has a diaphragm pressure reducing construction stable output pressure.

It is suitable for mass flow output working conditions


Design Features Of Pressure Regulator
Single-stage pressure-reducing structure Diaphragm with Nylon and NBR two layers construction Body thread: inlet and outlet connection 1” NPT(F) Pressure gauge connection: 1/4" NPT(F) Panel mounting and wall mounting available

Specification
Maximum inlet pressure: 500psig Output pressure: 0~25, 0~50, 0~100,0~125, 0~250psig Safety testing pressure: 1.5 times of maximum inlet pressure Working temperature: -10~+250 deg F(-23~+121 Deg C) Leakage rate: bubble tight Cv value=5.1

Material

Body : 316L , Brass

Bonnet : 316L , Brass

Diaphragm : NBR(Nylon inside)

Seat : NBR

Spring : 316L

Stem : 316L

Typical applications

Gas bus-bar

Petrochemical industry

Testing equipment


R61
L
B
F
G
G
06
06
Item
Body Material
Body Hole
Inlet Pressure
Outlet Pressure
Pressure guage
Inlet size
Outlet size
R61
L:316
A
F:500psig
G:0~250psig
G:MPa guage
06:3/4"NPT(F)
06:3/4"NPT(F)
B:Brass
B
H:0~150psig
P:Psig/bar guage
07:3/4"NPT(M)
07:3/4"NPT(M)
G
I:0~100psig
W:No guage
08:1"NPT(F)
08:1"NPT(F)
K:0~50psig
09:1"NPT(M)
09:1"NPT(M)
L:0~25psig
Other type is available
Other types for options
