Zr705 Zirconium Alloy Tubing UNS R60705 In Manufacturing Chemical Equipment ASME

Zr705 Zirconium Alloy Tubing UNS R60705 In Manufacturing Chemical Equipment ASME

Zirconium Alloy Tubing is a highly corrosion-resistant metal, suitable for chemical-resistant equipment. Its acid resistance is better than titanium and various steels, and is similar to tantalum. Zirconium is also very stable in alkaline solutions. Zirconium is completely resistant to alkali solutions and molten alkalis. The corrosion resistance of zirconium in sodium hydroxide medium is the same as that of nickel. Because zirconium has excellent corrosion resistance, it is much better than tantalum and precious metals in many cases. In addition, zirconium also has good mechanical properties and high temperature resistance.

CHEMICAL COMPOSITIONS (STANDARD)

PHYSICAL PROPERTIES (STANDARD)

Density: 6.51g/cc
Melting Point: 1852°C
Thermal Conductivity: 22W/(m °C)
Elastic bend modulus: 99.3GPa
Thermal Expansions: 5.4x10 /°C

PARAMETER (STANDARD)

• Specification: seamless pipe OD(8-152) * t (0.5-15) * L (≤ 9000) mm, welded pipe (outer diameter ≥ 10mm)

• Executive Standards: ASTM B523 / B523M-18, ASME SB-523, ASTM B658 / B658M-11, ASME SB-658 / SB-658M

Zirconium Alloy Tubing APPLICATIONS

Zirconium is mainly used in chemical equipment, especially in equipment with high corrosion resistance requirements. Zirconium is mainly used to make heat exchangers, vessel lining, valves, pump shells, blades, agitators, pipes, etc. in chemical equipment. Zirconium is used in many chemical equipment producing fertilizers, resins, plastics and acids.

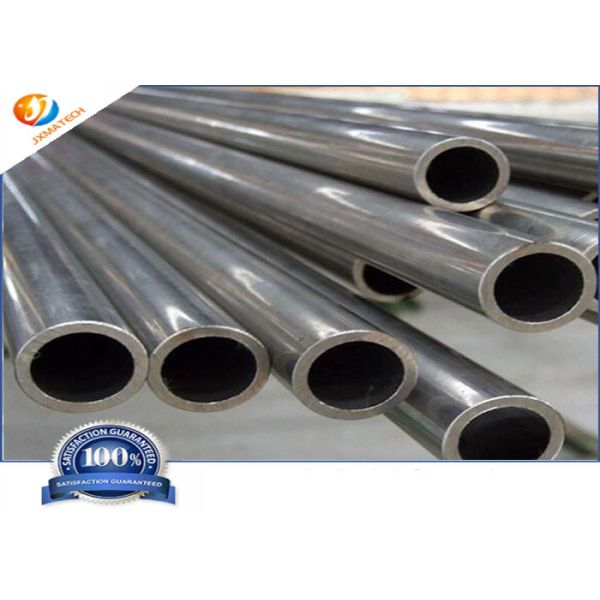

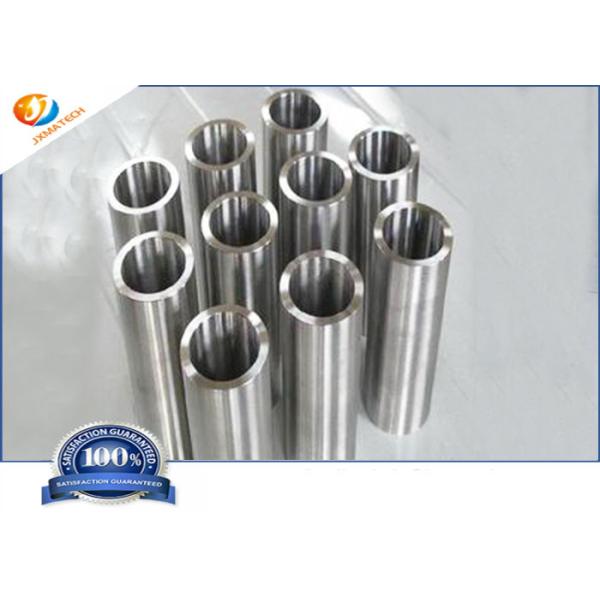

Zirconium Alloy Tubing Picture:

FEATURES of ZIRCONIUM

The water cooling of reactor zirconium alloys elevates requirement for their resistance to oxidation-related nodular corrosion. Furthermore, oxidative reaction of zirconium with water releases hydrogen gas, which partly diffuses into the alloy and forms zirconium hydrides. The hydrides are less dense and are weaker mechanically than the alloy; their formation results in blistering and cracking of the cladding – a phenomenon known as hydrogen embrittlement.

JINXING MATECH is a research and development, production, processing and sales of integrated, comprehensive refractory metal, precious metal material manufacturer.JINXING MATECH is an expert provider on the metal solution. Especially on the products such as Tungsten , Tungsten copper , Titanium , Zirconium, Vanadium, Hafnium, Sputtering Target , Nickel base alloy, Cobalt base alloys etc, products quality supplied according to ASTM , ASME , AMS , MIL , ISO , DIN and EN Standard which mainly used in Semiconductor, Petro-Chemical, Solor , Medical , Aerospace, Military industries.

So far JINXING MATECH's has attracted more than 50 countries customers in We mainly supply to the Market such as Canada, Sweden, Italy, Denmark, India, New Zealand , Mexico, South Korea , Netherland , Australia , India and Southeast Asia coutries sand many other countries and regions by reliable qualities, professional service and cost effective pricing. JINXING MATECH's production and inspection equipments include 100tons Hydraulic press, 20 tons Automation Controls Press, Vacuum Pressure Sintering Furnace , Electro-sparking wire cut machine ,powder metal Mixer, Granulation Drum, Hydrogen Sintering Furnace, Rochwell and Brinell hardness meters ,Metallocope , carbon and oxygen analyser etc.. JINXING MATECH's has 8,000 square meters construction area as well as two workshops ,JINXING MATECH people keep improving products quality and inspect the density, hardness and composition of finished products strictly, which ensures every product meets customers' requirements.

Technology Process

Strong manufacturing capabilities along with a full-scale R&D and test lab give us the ability to fully control all process of raw materials preparing, manufacturing, inspection, packing and delivery.

Our success is built on long-standing customer relationships, the quality of our sputtering targets and the level of technical and logistic services and sensitivity to economic, political and environmental issues. Within our organization, we are continually challenging our own performance.

All of our core technical team members have more than 10 years professional experience of both R&D and high volume manufacturing. Our business operations and logistics team is staffed with experienced professionals to provide friendly and timely support and services to our customers.

Quality Assurance

Special Metals Fabrication is an ISO 9001: 2015 accredited company. Our attitude to quality assurance means we are continually striving to improve our company and to ensure we are working to the highest possible standards.

Quality is a big part of every day at Special Metals Fabrication. Each service we offer has its own team of experts, making sure everything we offer complies within the standards we have set.
