| Categories | Architectural LED Lights |
|---|---|
| Brand Name: | DALITE |
| Model Number: | LBDL-1009 |
| Certification: | CE, UL |
| Place of Origin: | CHANGZHOU CITY CHINA |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 40000sets/month |
| Delivery Time: | 2-6 weeks |
| Packaging Details: | Form + Carton |
| Material: | Die-cast aluminium |
| Input Voltages: | 100-277V |
| IP rating: | IP65 |
| Impact Resistance: | IK08 |
| Working Temperature: | -40-50℃ |
| Working Humidity: | 10%-95% |
| Electrical Class: | Class I |
| Color: | Matt black, white, bronze as requirement |

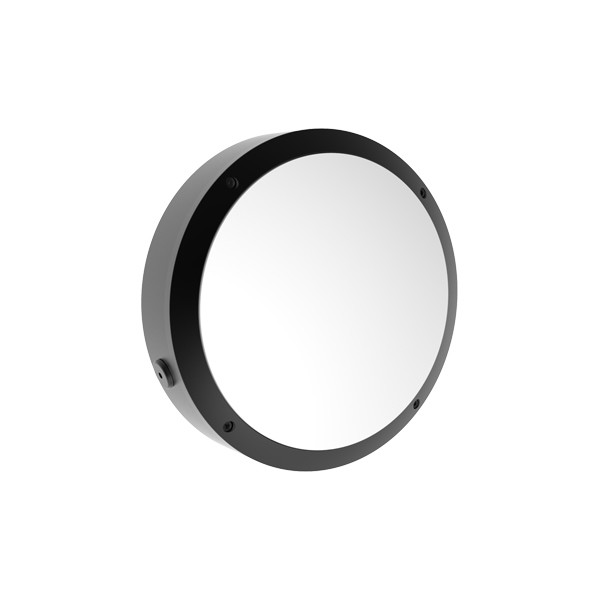

Voltage sensing Led light, Die-cast aluminum,PC cover,IP65 protect, LBDL-1009 Architectural Led Lights
Code : LBDL-1009
| Code | LBDL-1009A-S | LBDL-1009A-M | LBDL-1009A-L | LBDL-1009B-S | LBDL-1009B-M | LBDL-1009B-L | LBDL-1009C-S | LBDL-1009C-M | LBDL-1009C-L | LBDL-1009D-S | LBDL-1009D-M | LBDL-1009D-L |
| Size(D*W*Hmm) | 147*56 | 274*84 | 363*99 | 147*56 | 274*84 | 363*99 | 147*56 | 274*84 | 363*99 | 147*56 | 274*84 | 363*99 |
| Rated Power | 10W | 30W | 50W | 10W | 30W | 50W | 10W | 30W | 50W | 10W | 30W | 50W |
| Efficiency@3030 | >90LM/W | >90LM/W | >90LM/W | >54LM/W | >54LM/W | >54LM/W | >85LM/W | >85LM/W | >85LM/W | >70LM/W | >70LM/W | >70LM/W |
| Luminous Flux | >900LM | >2700LM | >4500LM | >540LM | >1620LM | >2700LM | >850LM | >2550LM | >4250LM | >700LM | >2100LM | >3500LM |
| Beam Angle | 115° | |||||||||||
| CCT | 3000-6500K | |||||||||||
| CRI | Ra>70 | |||||||||||
| Input Voltages | 120-277V | |||||||||||
| Frequency | 50-60Hz | |||||||||||
| Power Factor | >0.95 | |||||||||||
| Protection Index | IP65 | |||||||||||
| Impact Resistance | IK08 | |||||||||||
| Working Temperature | -40-50℃ | |||||||||||
| Working Humidity | 10%-95% | |||||||||||
| Electrical Class | Class I | |||||||||||
| Finishing | Standard color(RAL 7035,7042,9006,9007) other colors upon request | |||||||||||
| Service Life | >50000H | |||||||||||
|
