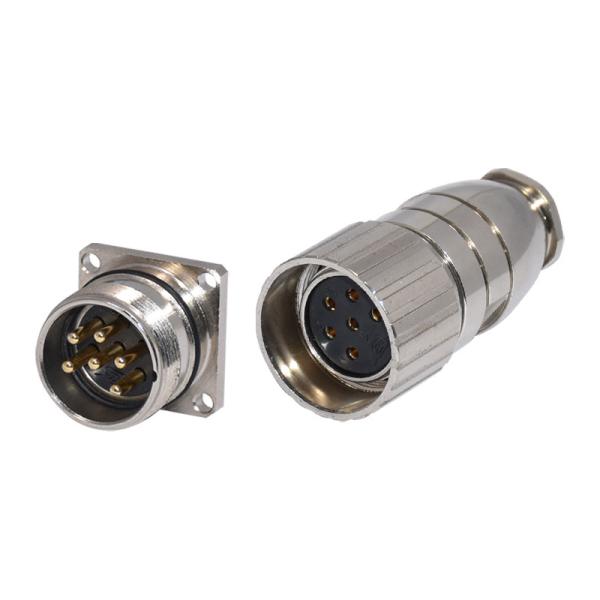

M23 Straight CuZn Waterproof Female Connector PA66 Threaded Coupling

M23 straight waterproof female Power connector

M23 series features sensor and actuator connectors with a locking thread for electronics automation, process control, and commercial electronics. We offer many different cable connectors, panel mounted receptacles, field attachable/installable connectors and various accessories. Our connectors have industry-standard, for both screw-locking and quick-locking styles.

	Product introduction Product Name:M23 923 power female male straight metal plug connector P/N:923G-A-S(P) Core number:6pin 8pin Authentication:CE,RoHS Voltage/Ampere(IEC): see below

1,Mateial and specifications:

Coupling:Threaded coupling

Shell material:Zinc alloy with nikelplate

Insert material:PA66+GF20%

Contact material:copper(silverplated/gold)

Termination:Solder

Mating cycle:500

Cable diameter:-40℃ ~ +85℃

Cable diameter:≤ φ8.0mm ~ ≤ φ14mm

2,Technology parameter

NO.of contacts:6pin,8pin

Rated current/voltage:28A/600V

Operation limit voltage(AC.V.rms):800

Withstanding voltage(AC.V.rms) l minute:2500-4000

Insulation resistance(MΩ MIN.) at DC 500V:3000

Contact resistance (MΩ MAX.) AT DC 1A:3

Solder cup mouth aperture φ(mm):2

Solder inter diameter φ(mm):1*4-2*6

Certifications

1. Whenever, we are pleased to get your order and any relevant requests.
2. Ensure the products meet the quality standards.
3. Ensure the goods will be delivered on time.
4. Provide warm and friendly service and after-sale service.
5. We will reply you within 24 hours.
6. OEM quality and original quality are acceptable.
7. About the warranty, if you have any problem about the goods after received it, you can tell us on time.We will make sure to give you a satisfactory solution.

8. For more details and latest price, please feel free to contact us.

Package&Shipping:

Packaging Details:
1.Our standard packing:
Individual part with transparent PE bag with label;
cartoon size:46*30*30(mm)
OEM package available.
2.At buyer's option

Delivery Time: Usually shipped within 7-10 days after payment.
