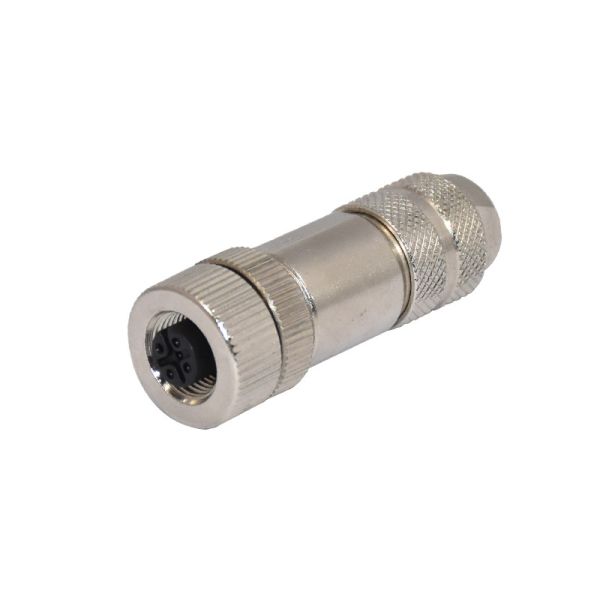

Straight Angled 16A Metal M12 Waterproof Connector CuZn Screw

16A metal power waterproof connector

IP67 assembly straight 3Pin 4pin 5pin 8pin metal m12 male connector

Features:

Model: M12
Number of Pins: 4/5/8 Pin
Cable Outlet: 4~7mm (PG7)
Connector Type: Male/Female Straight/Right Angle (Optional)
Coupling: Threaded Coupling
Termination: Screw
Wire Size: 0.14-0.5mm (AWG 26-20)
IP Rating: IP67
Rated Voltage: 250V (4 Pin): 60V (5 Pin) 30V (8 Pin)
Withstand Voltage: 2500V (4 Pin) 1500V (5 Pin) 800V (8 Pin)
Rated Current: 4A (4/5 Pin) 2A (8 Pin)
Operating Temperature: -25°C-85°C
Shell Color: silver
Contact Resistance: ≤3 Ohm
Insulation Divison: Ⅲ
Over Voltage Protection Level: Ⅱ
Quantity: 1 Pc

For more details, please contact us. We will send you picture or drawing for your approval before offer you samples.

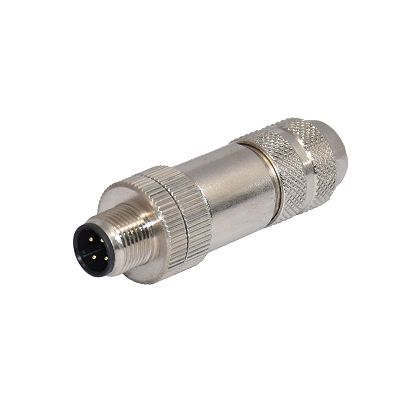

M12 Metal Male / Female
Assembly Cable Plug(Shield)

Series: M12 connector

Number of pin: 4, 5, 8 pin
Certification: RoHS
Waterproof: IP67

Advantages:

Field wiring, widely used in railway manufacturing, subway construction, industrial automation and other fields.

Certifications

The connector products are widely used in bus components, ethernet, solenoid valvees, press stiches, motors-control, protoelectric barries, flow monitoring devices, proximity switches, and sensors in hydraulic, pneumatic and automation industries.

Package&Shipping:

Packaging
1. Generay Package :Each pcs put in one samll waterproof PE bag,then put in a carton
Details: Add the label, about 200 hundred pieces connector put in one carton, Carton size:46*30*30cm
2. OEM/ODM package is avaiable
3. According to customer choice.

Shipping
We can according to customer request choose different ship way,which more converence ,which we will choose!

Company Profile：

Factory profile：

Shenzhen Rigoal Connnector Co.,Ltd. was established in 2013 years and is located in Shenzhen, China,enjoying convenient transportation and beautiful environment. Our company covers an area of 3500 square meters and has 160 employees at present. Company has obtained ISO9001 2015 certification.

We are specialized in waterproof connector and cable.Rigoal company focus on ODM and OEM connector and cable. Our company has rich experience in the senor , power and Ethernet industry. Our main products include M5 M8 M9 M10 M12 M16 M18 M20 M23 M40 RD24 RD30 mini7/8 etc circular waterproof connector and cable. push-pull connectors ,Solenoid value connector, RJ45 USB D-SUB waterproof connector and LED area power waterproof connector and cable .Plastic T or Y type connector and cables .Most of our products have got UL CE Rohs IP68 etc certificates.Besides, we are making great efforts to develop new products to meet different requirements. Welcome your custom-made.

Our products mainly clients in Europe ,USA, Australian,Korea etc. We also welcome all over the world orders.Our company has 30 equipment to strictly control the product quality.Adhering to the business principle of mutual benefits, we have had a reliable reputation among our customers because of our professional services, quality products and competitive prices. We warmly welcome customers from at home and abroad to cooperate with us for common success.
