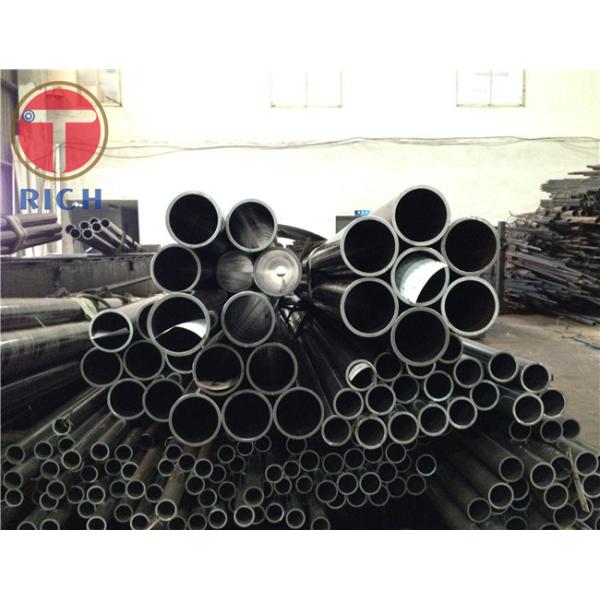

St35 St52 1026 Pre Honed Seamless Precision Steel Tube DIN 2391

St35 St52 1026 Pre-Honed Seamless Precision Steel Tube Din 2391

Torich can produce seamless high precision steel pipe for over 20 years',are of great engineering experience

in steel pipe industry for more than 20 years, which are in great command of production technology for Cold

Drawing and Cold Rolling. So we have strong technician team and manufacturing capability.

DIN 2391 Material Properties

DIN 2391 equivalent ASTM Standard EN 10305-1, EN 10305-4, ASTM A519, NF 699, GOST 9567-75, NBR 8476,

BS 6323 Part 4, NF A 49-330-85, BS 6323-4

DIN 2391 ST52 Pre-Honed Seamless Precision Steel Tube mechanical Properties

ST52 Steel Tube properties of Pre-Honed Seamless Precision Steel Tube

DIN 2391 ST52 Chemical Composition Steel Grade and Chemical Compositions:

ST52 steel tube equivalent are EN10025-1994 1.0570 S355, DIN 2393 & 2394 1.0570 ST 52-3 and DIN 2391-2

1.0580 ST 52. ST52 steel tubes are high strength structural steel, low alloy.

DIN 2391 ST52 pipe properties is that of a Chemical Composition of P max 0.025, C ≤0.22, Mn ≤1.6, Si ≤0.55 and S

max 0.025. DIN 2391 ST52 pipes have a Tensile Strength of 600 Mpa Min. The Yield Strength of DIN 2391 ST52 pipes

is 520 Mpa Min. DIN 2391 ST52 pipes have an Elongation of 14% min.

Tip:

Honing pipe: the cold-rolled precision seamless steel pipe is a hydraulic steel pipe made of finished seamless steel pipe or

raw seamless steel pipe, after acid pickling, phosphating, saponification treatment, and then rolled by the cold-rolled pipe mill.

The precision of hydraulic steel pipe is very high, which can generally be controlled at 0. 02-0. Within 05mm, the standard is

gb3639-83, the allowable deviation of inner diameter is 0.03mm, and the inner surface roughness is ra 0.2 ~ 0.8 μ m.

Straightness of hydraulic steel pipe: 0.3 ~ 1.5mm/m, which is specially used as the barrel diameter of oil steel.

Weight of seamless steel pipe kg/m = (OD - WT) * wt * 0.02466, where OD is the outer diameter and WT is the wall thickness

(: (outer diameter - wall thickness) * wall thickness *0.02466 kg / m.

Who We are ?

-------A professional steel pipes materials inventor, manufacturer and solution provider
Torich International Limited is a professional manufacturer and exporter of steel pipes materials. It is an international marketing and sales company specialized in steel tubes, which holds the factories of Seamless Steel Tubes with Carbon and Alloy Steel Grade, Welded Precision Steel Tubes,DOM Steel Tubes, Seamless & Welded Stainless Steel Tubes with Nickel and Alloy Steel Grade.
Our factory was established since 1997, with the name of TORICH INTERNATIONAL LIMITED. The factories’ technicians are of great engineering experience in steel pipe industry for more than 20 years, which are in great command of production technology for Cold Drawing and Cold Rolling. So we have strong technician team and manufacturing capability.

What products we do?

------- Invent and produce various Precision Steel Pipes

Our steel pipes cover the following ranges:
Seamless Precision Steel Pipes

Bearing Steel Tubes
Welded Precision Steel Pipes, with DOM production
Seamless Heat Exchanger Steel Pipe
Seamless Boiler Steel Pipes

Honed Tubes

Hydraulic Cylinder Steel Tubes

Hydraulic Telescopic Cylinder Tubes
Seamless Structural Steel Pipes
Seamless Mechanical Steel Pipes
Seamless Alloy Steel Tubes & Pipes
Seamless Stainless Steel tubes
Welded Stainless Steel Tubes
Seamless Stainless Steel Tubes & Pipes
Welded Stainless Steel Tubes & Pipes
Seamless Carbon Steel Tubes & Pipes
Nickel Alloy Steel Tubes & Pipes

What TORICH do:
1. Producing Steel Tubes
2. Selling both on Domestic and International Market
3. Precisely Targeting Customers’ Requirement- Sourcing the right factory for right products for Customers

Products Application:
Oil Cylinders
Air Cylinder,
Automotive Cylinder Liners
Boilers, Pressure Vessels
Shell & Heat Exchangers
Jack Lifting
Telescopic Systems
Pneumatic Cylinders
Agricultural Machineries

Size range is:
O.D. 4-350mm,
W.T. 0.5-30mm,
Length: according to customer’s requirement and agreement


Steel Grade:
Carbon Steel Grade:
ST35.8, ST37.0, ST44, ST52;
E155, E195, E215, E235, E275, E355;
195GH, P235GH, P265GH, P195TR1, P195TR2, P235TR1, P235TR2, P265TR1, P265TR2;
SAE1010, SAE1020, SAE1026, SAE1035, SAE1045;

Carbon steel tube: SA178, A179, A192, A210, SA213, SA214, etc.
Alloy Steel Grade:
T2, T5, T9, T11, T12, T17, T21, T22, T91,T92, 15Mo3,16Mo3, 13CrMo44;
SAE4130, SAE4140, 40Cr, 40Cr4, 10CrMo910, 12CrMo910, 11CrMo910,
25CrMo4, 35CrMo, 35CrMo4, 42CrMo4, 34CrMo4, 20MnV, 20MnV6,20CrMn;
Carbon steel tube: A179,A192,A210,DIN17175,etc.

Bearing Steel Grades:
GCr15 52100 suj2 suj3 100Cr6 SKF3S SKF3S 20CrNiMo 8620H 4118H;

Nickel Alloy Grade:
N02200/2201, N04400, N06600, N06601, N06625, N06852, N06219, N06690, N08800/8810/8811, N08825, N08028, N08535, N08904, N08925, N08926, N010276, N06022, etc.

Austenitic/Super Austenitic Stainless Steel Grade:
304/304L, 316/316L, 314, 321, 347H, 316Ti, 316LMod, 317L/N, 310S, 253MA, 330, 904L, S31254, XM-19, etc.

Ferrite/Martensite Stainless Steel Grade:
TP410, TP405, TP420, TP430, TP430Ti, TP403, TP409, TP444, TP439, TP446, etc.

Duplex/Super Duplex Stainless Steel Grade:
S31803, S32304, S31500, S32550, S32750, S32760, etc.
Corporate Culture:
We focus on Quality First, Quality Traceability, and Quality Stability!
We focus on Customer First, People First, and Quality-Oriented!
Success:
First factory started in 1997, in the name of Torich , now covers 50000 square meters of factory building, with more than 100employees, and over 45 million RBM assets.
In 2008, we started the company of Torich International Limited for international business and marketing.
Welcome partners from all over the world for long term cooperation!
