Carbon Steel Oilfield Sucker Rod Drilling Rig Tongs 1.8KN/M

Categories Drill Spare Parts
Brand Name: TR Solids Control
Model Number: TRZQ, TRTQ, TRXQ
Certification: API Certificate, ISO Certificate
Place of Origin: Xi'an China
MOQ: 1 pc
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 7000 pcs per month
Delivery Time: 10 days
Packaging Details: Pallet or wooden case
Size: 5/8"~1 1/8"
Color: Red, yellow, blue
Advantage: Impact Structure
Processing Type: Casting, forging
Material: Carbon Steel
Type: Hydraulic
Low gear rated torque: 1.8KN/m
Usage: Oil Well Drilling
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Carbon Steel Oilfield Sucker Rod Drilling Rig Tongs 1.8KN/M

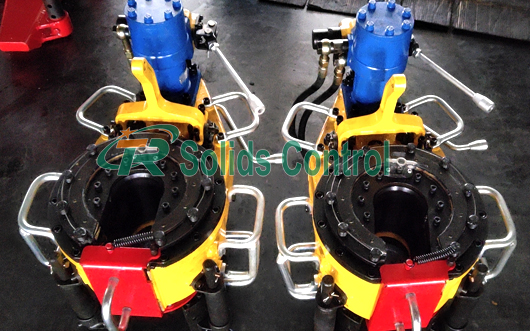

API 7K Oilfield XQ28 Sucker Rod Hydraulic Power Tong


Product Introduction


The power tong is imported from low speed high pulling torque hydraulic motor, transmitted by straight-cut gear, shifted by two level gears, and reinforced by jaw plate cam clamp system. This product adopts a number of new technologies. If equipped with different hydraulic devices, the hydraulic power tong may meet the different requirements of loading and unloading rod threads during the workover period under different environmental conditions.


We operate various businesses with self-confidence and unity business philosophy, and are determined to provide customers with the highest quality cementing manifold, High Pressure Drilling Fluids Manifolds, TCI tricone rock bit and services. We will uphold the pragmatic style of 'constantly push ourselves and pursue excellence', always firming up our service commitments to customers, thus achieving sustainable development of the company. We continue to innovate technology around enhancing customer value. We adhere to the honest, efficient, practical win-win running mission and people-oriented business philosophy. In today's increasingly progressive technology, our company constantly increases the investment in research and development technology, speeds up the pace of research and development system construction.


Main Advantages of Oilfield Hydraulic Power Tong


  1. Drill pipe power tong is a ideal well head tool for oil drilling apparatus,
  2. Widely applied in making-up and breading-out in drilling well and repairing well on offshore and land, open-throat design of the XQ series allows the tongs to escaping from drilling pipe freely with high mobility.
  3. The tong is a combination of spinning tong and torque tong. It substitutes cathead manual tong and spinning rope in making-up and breaking-out.
  4. The tongs are designed and manufactured according to API Spec 7K Specification for Drilling Equipment.

Technical Parameters of Oilfield Hydraulic Power Tong


ModelZQ203-125ZQ203-100ZQ203-100AZQ203-100BZQ162-50ZQ127-25
Size
rang
mm127-203121-203121-203121-20385-16265-127
in31/2
coupling
-8body
31/2
coupling
-8body
31/2
coupling
-8body
31/2
coupling
-8body
23/8
coupling
-5body
23/8
coupling-31/2body
Max.torquekN.M1251001001005025
ft.lbf922007375073750737503688018440
Speed of tong Hi.rpm404040406065
Speed of tong To.rpm2.72.72.72.74.110.5
Hydraulic system pressure ratiginMpa2016.616.616.61612
Psi290024002400240023201740
Hydraulic system pressure ratiginL/min114114114114120180
gpm303030303248
Stoke of shifting cylindermm150015001500/10001000
in595959/39.439.4
Moving distance of tongmm///0-3000//
in0-59
Lifting diatance of tongmm//0-4850-1800//
in0-190-31.5
Overall dimensionsmm1720
*1050
*1750
1700
*1000
*1400
1700*
1000
*1400
1750*
1650
*2050
1570*
800
*1190
1110*
790
*820
in68*
41*69
67*
39*55
67*
39*55
69*
65*81
62*
31*47
44*
31*32
WeightKg26002400250032501500620


Why do I choose you?
Our company was registered in the year 2010. Before we start our own business, our team members all worked more than 8 years in some other big petroleum companies. Our members have abundant supplier channels, trading and project implementation experience. Besides, we also have our own after-sales service team. Therefore, we could provide the required equipment with superior quality and competitive price.


We take "Be the world's first-class equipment provider of oil & gas development and utilization." as a goal and "provide customers with the highest quality products and technical services" as our mission. It has always put great emphasis on integrity, met customer needs and offered customer best service wholeheartedly.


Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
