| Categories | Industrial Flexible Cable |
|---|---|
| Brand Name: | Hwatek |
| Model Number: | UL2464 |
| Certification: | UL,ROHS, REACH |
| Place of Origin: | China |
| MOQ: | 6.1KM |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 3000KM Per month |
| Delivery Time: | 2-3W |
| Packaging Details: | carton/pallet |
| Application: | drag chain wiring , interconnection wire |
| Jacket: | Flexible PVC |
| Insulation material: | XLPE |
| Standard: | UL758, UL1581, CSA C22.2 No.210.2 |
| Conductor: | Stranded tinned copper conductor |
| Product name: | Multicore Shielding PVC Jacket Cable UL2464 80C 300V |
| Rated voltage: | 300V |
| Rated temperature: | 80ºC |
| Company Info. |
| NANTONG HWATEK WIRES AND CABLE CO.,LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |

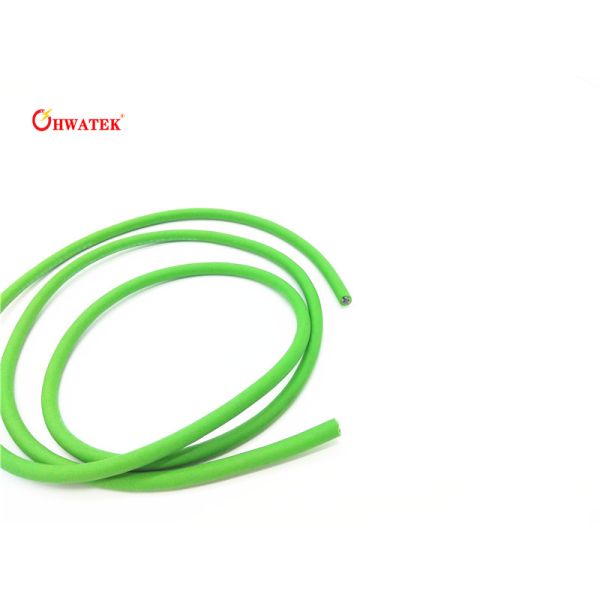

Multicore Shielding PVC Jacket Cable UL2464 80C 300V
| Product Number. | Conductor | Insulation | Shield | Jacket | Max. Cond. Resistance (200C) Ω/km | ||||||
| Cores | Size AWG | NO./mm | Conductor Dia . mm | Nom. Thickness mm | Nom. Dia. mm | Tape thick. mm | Dia. of braid strand mm | Nom. Thick. mm | Nom. Dia. mm | ||
| HT2464***001 | 3 | 28 | 16/0.08 | 0.38 | 0.26 | 0.80 | 0.025 | 0.10 | 0.80 | 3.80 | 223 |
| HT2464***002 | 4 | 28 | 16/0.08 | 0.38 | 0.26 | 0.80 | 0.025 | 0.10 | 0.80 | 4.03 | 223 |
| HT2464***003 | 5 | 28 | 16/0.08 | 0.38 | 0.26 | 0.80 | 0.025 | 0.10 | 0.80 | 4.26 | 223 |
| HT2464***004 | 6 | 28 | 16/0.08 | 0.38 | 0.26 | 0.80 | 0.025 | 0.10 | 0.80 | 4.50 | 223 |
| HT2464***005 | 10 | 28 | 16/0.08 | 0.38 | 0.26 | 0.80 | 0.025 | 0.12 | 0.80 | 5.30 | 223 |
| HT2464***006 | 15 | 28 | 16/0.08 | 0.38 | 0.26 | 0.80 | 0.025 | 0.12 | 1.00 | 6.26 | 223 |
| HT2464***007 | 25 | 28 | 16/0.08 | 0.38 | 0.26 | 0.80 | 0.025 | 0.12 | 1.00 | 7.40 | 223 |
Application: drag chain wiring , interconnection wire
Application standard: UL758, UL1581, CSA C22.2 No.210.2
Product character:
Standard thickness, easily strip and cut
Tiny conductor diameter has high flexibility
Oil and heat resistance, anti-bending and abrasion
Pass UL VW-1 and CSA FT1 vertical flame test
Constructure:
Stranded tinned copper conductor, 30-2/0AWG
XLPE insulation
Multi-core wire are twisted or cabling
Braiding shield with tinned copper
Flexible PVC jacket
Technical parameter:
Rated temperature : 80℃
Rated Voltage: 300V
|
