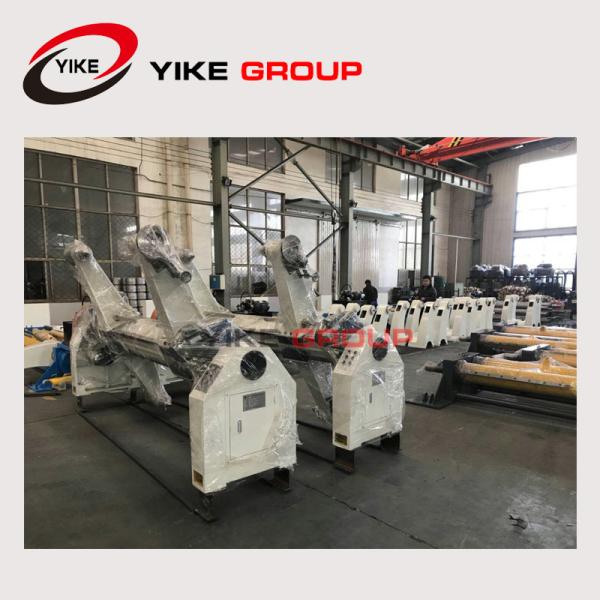

1800mm Electric Mill Roll Stand Used for Corrugation Line

1800mm Electric Mill Roll Stand Used In Corrugation Line

ZJ-F Electric Mill Roll Stand

※Structural features:

★The symmetrical structure can also install two bundles of paper at the same time, Paper can be used non-stop for a job. Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around translational motion, etc.

★Each shaftless mill roll stand is equipped with two pieces of paper guide, two sets of paper car, paper guide the use of channel 14 and the guide post-weld, paper car adopt 10mmwelded stell, the length of the track is 4500mm

★Manual disc brake, add screw following

★Electric elements centralized control the electric elements expand chuck

※Technical parameters:

1, Back stands action mode: mechanical electric operation

2, The range of paper jams:maximum:1800mm minimum:600mm

3, The diameter of paper jams:maximum:￠1400mm minimum:￠400mm

4, Unilateral maximum load: maximum 2000Kg

5, Powered motor parameters:

①Paper jams motor550W×4set 380V 50HZ short(S2)working standard

②lift motor 1.5Kw 380V 50HZ short(S2)working standard

※Mainly purchased parts, raw materials, and origin:

CHINA YIKE GROUP CO LTD

Email: anna@yikegroup.net

web: www.yikegroup.net

CHINA YIKE GROUP CO.,LTD

was established in January of 2002, which is a high-tech enterprise, manufacture and sales of high level automatic corrugated cardboard production line, flexo printer slotter die cutter machine, Casemaker.

Our Group implement the ISO 9001-2008, in strict on factory management. All products series pass CE certification.

YIKE GROUP. with professional technology, serious management, and advanced equipment, we provide high quality products and timely aftersale service.

We devote to be the World leading partner of the corrugated packaging industry, more than 200 machines running in customer sites in UK, Italy, Spain, Saudi arabia and so on. Thousands machines in China domestic market.

Yunxiang carton machinery factory Co., Ltd. wish to achieve resplendence with you hand in hand, shoulder to shoulder in the future.

cangzhou yike carton machinery manufacturer.

Any inquirement, pls contact with us asap.

Thanks.
