| Product Name: | Pneumatic Lubricator |
| Fluid: | Air |
| Port Size: | 1/8'', 1/4'', 3/8'', 1/2'' |
| Pressure Range: | 0.05 to 1.0 MPa (7 to 145 psi) |
| Proof Pressure: | 1.5Mpa (215Psi) |
| Capacity of Oil Bowl: | 25CC, 90CC |
| Company Info. |
| Ningbo Brando Hardware Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Airtac Type Pneumatic Air Lubricator AL1500 AL2000 BL2000 BL3000 BL4000
Product Features of AL, BL series Pneumatic Lubricator:
1. The structure is delicate and compact.
2. The quantity of oil dripping can be directly observed through
transparent inspection sheet.
3. BL has high-strength plastic shields, which is more safe and
reliable to use.
4. The pressure loss and the flow of miststart is low.
Specification of AL, BL series Pneumatic Lubricator:
Model | AL1500 | AL2000 | BL2000 | BL3000 | BL4000 | |
Fluid | Air | |||||
Port Size | 1/8'' | 1/4'' | 1/4'' | 3/8'' | 1/2'' | |
Pressure Range | 0.05 to 1.0 MPa (7 to 145 psi) | |||||
Proof Pressure | 1.5 MPa (215 psi) | |||||
Temperature Range | -5 to +70℃ (unfreeze) | |||||
Capacity of oil bowl | 25CC | 90CC | ||||
Recommand lubricant | ISO VG 32 or equivalent | |||||

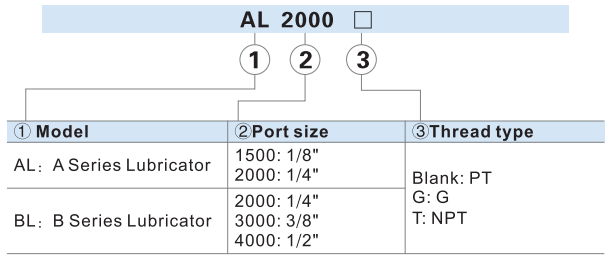

Ordering Code of AL, BL series Pneumatic Lubricator:

Dimension of AL, BL series Pneumatic Lubricator:

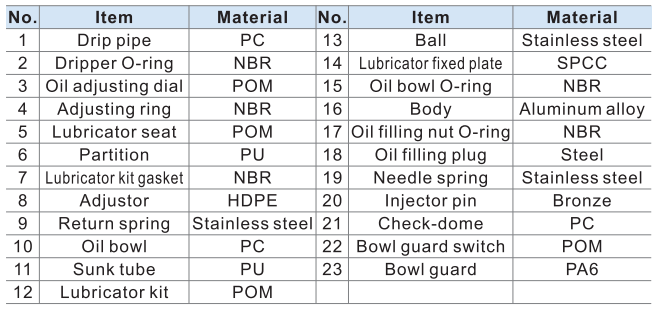

Inner Structure of AL, BL series Pneumatic Lubricator:
